LAST SOLD AT ₹ 1,210.00

SKU # 1000016871

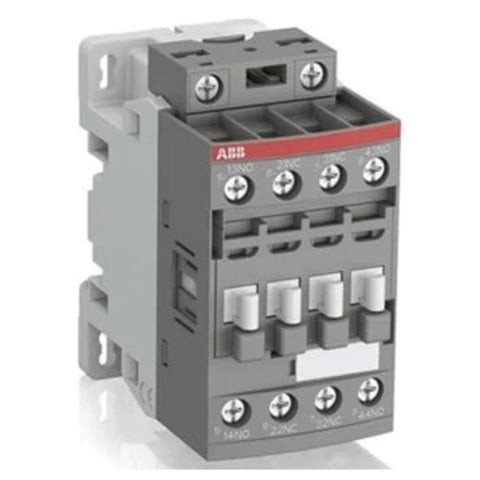

ABB AC Type Contactor Three Pole Size:1 AX25-30-01

ABB AC Type Contactor Three Pole Size:1 AX25-30-01


₹ 1,210.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • AX09...AX25 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC
  • These contactors are of the block type design with: – 3 main poles and 1 built-in auxiliary contact
  • Control circuit: AC operated – add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
  • Product Type : Contactor
  • Rated Frequency : 50/60 Hz
  • Operation Type : AC
  • Number of Main Contacts NO : 3
  • Number of Main Contacts NC : 0
  • Number of Auxiliary Contacts NO : 0
  • Number of Auxiliary Contacts NC : 1
  • Rated Operational Voltage : 690 V
  • Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 32 A , acc. to IEC 60947-5-1, q = 40 °C 16 A
  • Maximum Breaking Capacity : cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A ,
    cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A
  • Rated Insulation Voltage (Ui) : acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
  • Rated Impulse Withstand Voltage (Uimp) : 6 kV
  • Maximum Mechanical Switching Frequency : 3600 cycles per hour
  • Maximum Operating Altitude Permissible : 3000 m
  • Terminal Type : Screw Terminals
  • Product Net Width : 44 mm
  • Product Net Depth / Length : 74 mm
  • Product Net Height : 76.3 mm
  • Product Net Weight : 0.326 kg
Product Specification

Product Id

Description

Rated Voltage

1SBL931074R8101

AX25-30-01 24V AC/DC 50/60Hz

24 V

1SBL931074R8401

AX25-30-01 110V AC/DC 50/60Hz

110 V

1SBL931074R8001

AX25-30-01 220-230V AC/DC 50/60Hz

220-230 V

1SBL931074R8601

AX25-30-01 400-415V AC/DC 50/60Hz

400-415 V


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

3 Pole Contactors

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
