Out of Stock!

SKU # 1000021847

ABB-Manual-Motor-Starter-Three-Pole-MS-495-1000021847

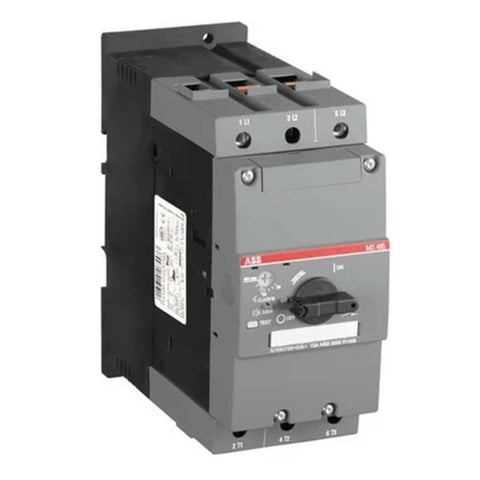

ABB Manual Motor Starter Three Pole MS 495


₹ 13,043.00

Quantity

Min Qty : 1



Delivery Availability
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The MS495 manual motor starter is a 70 mm width devices with a rated operational current of Ie = 40A to 100A

  • This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures

  • The manual motor starter offers a rated service short-circuit breaking capacity Ics = 25 kA at 400 VAC and the trip class 10

  • Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication

  • The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes

  • Auxiliary contacts, signalling contacts, undervoltage releases and shunt trips are available as accessory

  • Rated Instantaneous Short-Circuit Current Setting (Ii) : 520 A

  • Rated Operational Power AC-3 (Pe) : (400 V) Three Phase 18.5 kW

  • Rated Operational Voltage : Main Circuit 690 V AC , Main Circuit 450 V DC

  • Rated Frequency (f) : Main Circuit 50 Hz , Main Circuit 60 Hz

  • Rated Impulse Withstand Voltage (Uimp) : Main Circuit 6 kV

  • Rated Insulation Voltage (Ui) : 690 V

  • Number of Poles : 3

  • Conventional Free-air Thermal Current (Ith) : Main Circuit 40 A

  • Degree of Protection : Housing IP20

  • Main Circuit Terminals IP00

  • Pollution Degree : 3

  • Electrical Durability : 25000 cycle

  • Mechanical Durability : 50000 cycle

  • Mounting Position : Position 1 to 6

  • Actuator Type : Rotary Handle

  • Product Net Width : 70 mm

  • Product Net Height : 165 mm

  • Product Net Depth / Length : 174 mm

  • Product Net Weight : 2.219 kg

Product Specification

Rated Operational Current (Ie)

Product ID

Description

40 A

1SAM550000R1005

MS495-40 Manual Motor Starter

50 A

1SAM550000R1006

MS495-50 Manual Motor Starter

63 A

1SAM550000R1007

MS495-63

75 A

1SAM550000R1008

MS495-75

90 A

1SAM550000R1009

MS495-90

100 A

1SAM550000R1010

MS495-100
