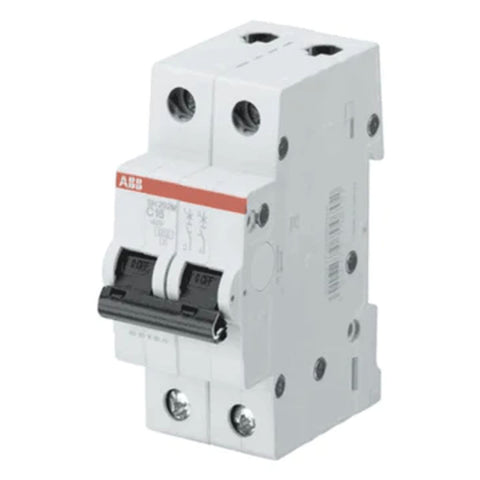

ABB MCB 0.5-63A 10 kA C Curve Douple Pole S200M Series


ABB
Available



₹ 564.00

Check Pincode Availability

Product Description
  • S200M Miniature Circuit Breaker, DIN Rail Mounting,Douple Pole

  • System pro M compact S200M miniature circuit breakers are current limiting.

  • They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.

  • They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A).

  • All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications.

  • Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.

  • Product Net Width : 17.5 mm

  • Product Net Height : 69 mm

  • Product Net Depth / Length : 85 mm

  • Product Net Weight : 0.23 kg

  • Terminal : Fail safe bi-directional cylinder - lift terminal

  • Rated Frequency : 50/60 Hz

  • Real Contact position indication : Red ON / green OFF

Product Specification

Rated current

Code

Product id

0.5 A

2CDS272001R0984

S202M-C 0.5

1 A

2CDS272001R0014

S202M-C 1

1.6 A

2CDS272001R0974

S202M-C 1.6

2 A

2CDS272001R0024

S202M-C 2

3 A

2CDS272001R0034

S202M-C 3

4 A

2CDS272001R0044

S202M-C 4

6 A

2CDS272001R0064

S202M-C 6

10 A

2CDS272001R0104

S202M-C 10

16 A

2CDS272001R0164

S202M-C 16

20 A

2CDS272001R0204

S202M-C 20

25 A

2CDS272001R0254

S202M-C 25

32 A

2CDS272001R0324

S202M-C 32

40 A

2CDS272001R0404

S202M-C 40

50 A

2CDS272001R0504

S202M-C 50

63 A

2CDS272001R0634

S202M-C 63
