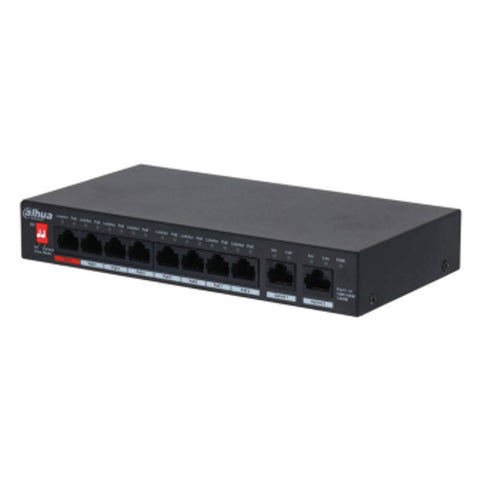

Dahua 10 Port Gigabit Unmanaged Desktop Switch With 8 Port PoE DH-PFS3010-8GT-96
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Intelligent PoE
-
8-pin assignment PoE power supply
-
Long distance PoE
-
PoE watchdog
-
BT 90W
-
All-giga ports
-
Wide working temperature
-
System Overview
DH-PFS3010-8GT-96 is an unmanaged Desktop Switch with 8 ×10/100/1000Mbps PoE Ports -
It provides 8 × 10/100/1000 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink ports
-
The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off) The red port supports the IEEE802.3bt and the Hi-PoE standards
-
The maximum power consumption is 90 W
-
It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the
cost -
Functions
-
Intelligent PoE
-
Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power
consumption -
Supports ultra wide power supplies and is able to adapt to IPC power fluctuations
-
BT 90W
The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption rate of 90W per port -
Suitable for powering high-power devices
-
PoE Watchdog can be switched on by dialing or turning on the WEB page switch
-
It enables the switch to automatically detect port status and restart failed ports to recoverconnection in case of IPC connection exception
-
This enables intelligent operation and maintenance management in its truest sense, effectively
reducing manual maintenance costs
Product Specification
| Brand | Dahua |
| Product Type | Ethernet Switch |
| Product Code | DH-PFS3010-8GT-96 |
| Hardware | |
| Data Transmission Port | Port 1–8: 8 × RJ-4510/100/1000 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink) |
| Power Supply | 48 V- 57 V DC |
| Operaing Temperature | –10 °C to +55 °C (+14°F to +131°F) |
| Operating Humidity | 5% – 95% (RH) |
| Storage Temperature | –20 °C to +70 °C (–4°F to +158°F) |
| Storage Humidity | 5% – 95%(RH) |
| Power Consumption | Idling: 3 W Full load: 96 W |
| Performance | |
| Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Packet Buffer Memory | 1.5 Mbit |
| MAC Table Size | 4K |
| Communication Standard | IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x |
| PoE | |
| PoE Standard | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| PoE Power | 96 W |
| Power Consumption Management | Yes |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE | 250 m long distance PoE transmission |
| General | |
| Statics Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Thunder-proof | Common mode: 4 kV Differential mode: 2 kV |
| Dimensions | 190 × 100 × 30 mm |
| Weight | 1.32 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Ethernet Switch |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
