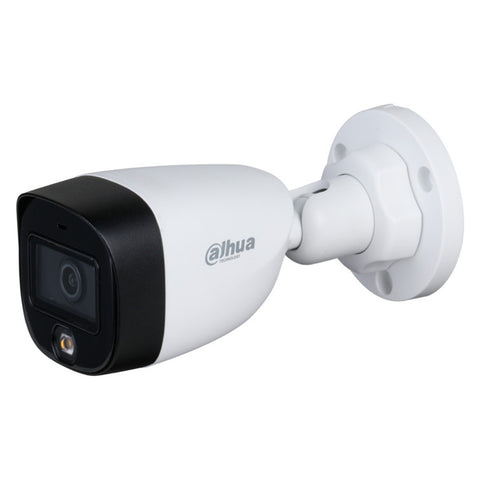

Dahua Full Color Starlight HDCVI Bullet Camera 2MP DH-HAC-HFW1209CP-LED
Dahua Full Color Starlight HDCVI Bullet Camera 2MP DH-HAC-HFW1209CP-LED 7135473270978PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Full-color starlight
-
20 m illumination distance
-
Max. 30fps@1080P
-
CVI/CVBS/AHD/TVI switchable
-
Fixed lens (2.8 mm;3.6 mm optional)
-
IP67, 12V±30% DC
-
Functions
-
Full-color Starlight
-
The camera adopts F1.6 large aperture lens and 1/2.8" high performance sensor
-
With higher amount of absorbed light and advanced image processing algorithm, the camera presents an impressive lowlight performance with an exceptional balance between noise reduction and the blur of moving object
-
Warm Supplemental lights
-
With one warm supplemental LED lights, the camera is able to provide a coloful and vivid image even in total dark
-
By default, the camera is set to smart light mode, in which the camera can automatically adjust
the exposure time and light sensitivity simultaneously to avoid overexposureing of the objects in the image center
-
Also, the sensitivity and intensity of the LED lights can be remotely controlled by OSD menu
-
Broadcast-quality Audio
-
Audio information is used as supplementary evidence in video surveillance applications
-
The HDCVI camera supports audio signal transmission over coaxial cable
-
In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information
-
This function is available for select models
-
4 Signals over 1 Coaxial Cable
-
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data and power
-
Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm
-
Audio input is available for some models of HDCVI cameras
-
Long Distance Transmission
-
HDCVI technology guarantees long-distance and real-time transmission without any loss
-
It supports up to 700 m for 2MP HD video via coaxial cable, and up to 300 m via UTP cable
-
Actual results verified by real-scene testing in Dahua's test laboratory
-
Simplicity
-
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection
-
HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling
-
The plug and play approach enables full HD video surveillance without the hassle of configuring a network
-
Multiple-formats
-
The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market
-
The four formats can be switched over through OSD menu or by PFM820 (UTC controller)
-
This feature makes the camera to be compatible with most end users’ existing HD/SD DVRs
-
Protection
-
The camera's outstanding reliability is unsurpassed due to its rugged design
-
The camera is protected against water and dust with IP67 ranking making it suitable for indoor or outdoor environments
-
With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments
-
Supporting ±30% input voltage tolerance, this camera suits even the mostunstable power supply conditions
-
Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning
Product Specification
Brand |
Dahua |
||||
Product Type |
Bullet Camera |
||||
Model |
DH-HAC-HFW1209CP-LED |
||||
Series |
Lite |
||||
Camera | |||||
Image Sensor |
1/2.8 inch CMOS |
||||
Effective Pixels |
1920 (H) × 1080 (V), 2MP |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s |
||||
S/N Ratio |
>65dB |
||||
Minimum Illumination |
0.01Lux/F1.6, 0Lux white light on |
||||
Illumination Distance |
Distance up to 20 m (65.61 ft) |
||||
Illuminator On/Off Control |
Auto; manual |
||||
Illuminator Number |
1 |
||||
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°-180 Rotation: 0°–360° |
||||
Lens | |||||
Lens Type |
Fixed-focal |
||||
Mount Type |
M12 |
||||
Focal Length |
2.8 mm ;3.6 mm |
||||
Max. Aperture |
F1.6 ;F1.6 |
||||
Field Of View |
2.8 mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical); 3.6 mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical) |
||||
Iris Type |
Fixed iris |
||||
Close Focus Distance |
2.8 mm: 0.6 m (1.97 ft); 3.6 mm: 1.2 m (3.94 ft) |
||||
DORI Distance |
Lens |
Detect |
Observe |
Recogniz |
Identify |
2.8 mm |
38.6 m (126.6 ft) |
15.4 m (50.5 ft) |
7.7 m (26.3 ft) |
3.9 m (12.8 ft) |
|
3.6 mm |
55.2 m (181.1 ft) |
22.1 m (72.5 ft) |
11.0 m (36.1 ft) |
5.5 m (18.0 ft) |
|
Video | |||||
Frame Rate |
CVI: PAL: 1080P@25fps; 720P@25fps; NTSC: 1080P@30fps; 720P@30fps; AHD: PAL: 1080P@25fps; NTSC: 1080P@30fps TVI: PAL: 1080P@25fps; NTSC: 1080P@30fps CVBS: PAL: 960H; NTSC: 960H |
||||
Resolution |
1080P (1920 × 1080); 720P (1280× 720); 960H (960 × 576/960 × 480) |
||||
BLC |
BLC/WDR |
||||
WDR |
DWDR |
||||
White Balance |
Auto;manual |
||||
Gain Control |
Auto;manual |
||||
Noise Reduction |
2D NR |
||||
Smart Light |
Yes |
||||
Mirror |
Off/On |
||||
Privacy Masking |
Off/On (8 area, rectangle) |
||||
Certifications | |||||
Certifications |
CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
||||
Port | |||||
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
||||
Power | |||||
Power Supply |
12V ±30% DC |
||||
Power Consumption |
Max 3.0W (12V DC, White Light on) |
||||
Environment | |||||
Operating Temperature |
-40°C to +60°C (-40°F to 140°F); <95% (non- condensation) |
||||
Storage Temperature |
-40°C to +60°C (-40°F to 140°F); <95% (non- condensation) |
||||
Protection Grade |
IP67 |
||||
Structure | |||||
Casing |
|||||
Camera Dimensions |
|||||
Net Weight |
|||||
Gross Weight |
|||||
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Bullet Camera |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
