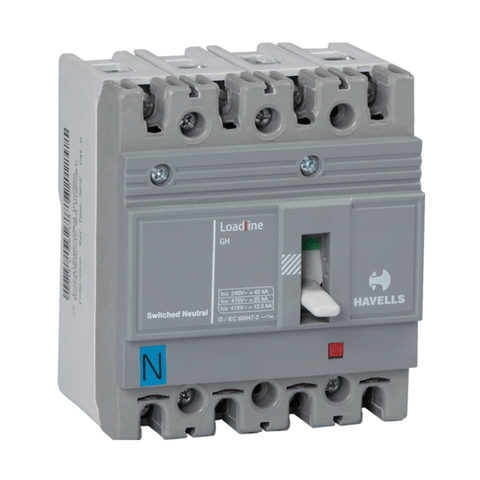

Havells Fixed Thermal and Magnetic Mccb with Four Pole GH Frame 25kA

Havells Fixed Thermal and Magnetic Mccb with Four Pole GH Frame 25kA


₹ 4,468.00

Quantity

Min Qty : 1



Delivery Availability

 Estimated Dispatch In 14-21 Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description:

Overload Setting is Fixed and Short Circuit Setting is minimum 10 times of Rated Current.

Compact Size & Double Insulation

Space saving in the Panel and has the conductive path insulated with double shield i.e. Cover & Facia

Suitable for Switch Disconnector Purpose

Can be used as an Isolator

In 4Pwsn version, Neutral makes first & breaks last

Provision for addressing Residual Current in the Circuit.

Provision of Push to tip button

It is an alternate means to Trip the Breaker and also helps in checking the health of the Breaker.

Uniform front Escutcheon plate

Common Door Cut-out Facility provided lending Uniformity

Positive dolly position indication

Depicts the ON/OFF status of the breaker

Suitable for DC application

Offers choice of system usage

Wide range of accessories available

Allows precise monitoring & control of circuit with the help of varied Internal & External Accessories

Product Specification:

Standard conformity: IEC 60947-2/IS:13947-2

Rated operational voltage: 500V AC

Rated Insulation Voltage: 750V AC

Type of Release: Thermomagnetic

Utilisation Category: A

Rated frequency: 50/60Hz

Ambient temp: 400C (500C on request)

Operating altitude: 2000 metres

Humidity: 0 - 90%

Rated impulse voltage: 8 kV

Rating Range: 25A - 160A

Type of Release: Fixed Type

No. of Poles: Four

Breaking Capacity: Icu = 25kA, Ics = 75% of Icu

Note: # Extended Terminals:In G-Frame from (80A to 160A)

Breaking Capacity Icu at 415V (kA)

Current Rating (A)

Frame

Cat. No.


25

25


GH

IHLGHF0025

32

IHLGHF0032

40

IHLGHF0040

50

IHLGHF0050

63

IHLGHF0063

80

IHLGHF0080 #

100

IHLGHF0100 #

125

IHLGHF0125 #

150

IHLGHF0150 #

160

IHLGHF0160 #
