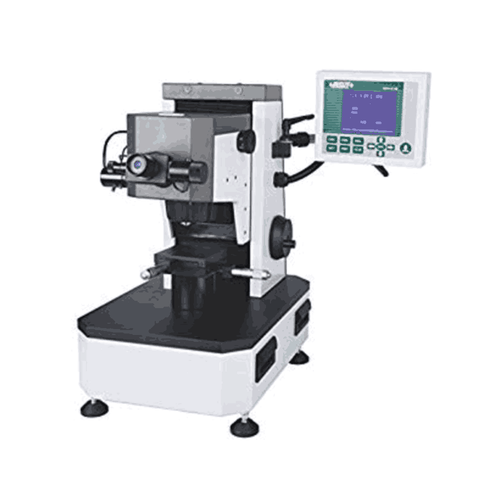

Insize Automatic Digital  Micro-Vickers Hardness Tester ISHV-D120

Insize Automatic Digital Micro-Vickers Hardness Tester ISHV-D120


₹ 739,604.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Based on Vickers (HV), can be converted to HRA, HRB, HRC, HRD, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK, HBW

  • Can take tests up to 99 times, display average value and the difference of max. and mini. value

  • Low and high limits with judgement

  • Also for Knoop hardness test

  • Knoop indenter is needed (optional)

Product Specification

Brand

Insize

Product Type

Hardness Tester

Model

ISHV-D120

Test Force

0.01,0.025,0.05,0.1,0.2,0.3,0.5,1Kgf

Vickers Scales

HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1

Load Control

Automatic (load/dwell/unload)

Load dwell time

0~60 second

EyePiece Magnification

10X

Objective

10X,40X

Total Magnification

100X(For Observation),400X(for Measurement)

Max. Height of Workpiece

210mm

Max. depth of Workpiece

135mm(from the center of indenter)

X-Y Stage

Dimension: 100×100mm , travel range:25×25mm,graduation:0.01mm

Power Supply

220V,50/60 Hz

Dimension

490×320×530 mm

Weight

45 Kg


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Automatic Hardness Testers

Manufacturer Details

INSIZE INDIA LLP Block B-09, Sumel-8, Nr. Ajit Mill Char Rasta, Rakhial Ahmedabad- 380023, India Email : sales-in@insize.com

Packer Details

INSIZE INDIA LLP Block B-09, Sumel-8, Nr. Ajit Mill Char Rasta, Rakhial Ahmedabad- 380023, India Email : sales-in@insize.com

Country of Origin

India
