SKU # 1000016190

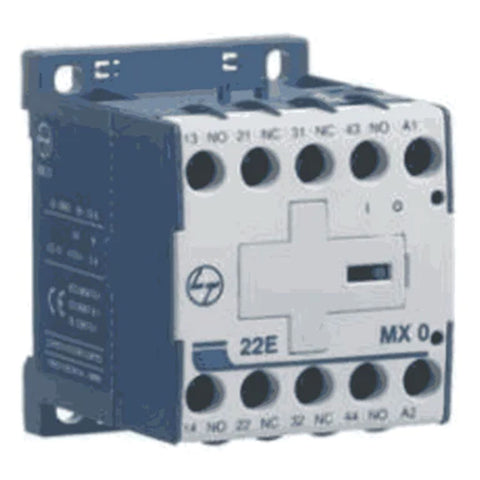

L&T Control Relays (Auxiliary Contactors) MXO Type For AC Control Standard Coil Voltage-24-220Hz
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Conforms to IS / IEC 60947-4-1 & IEC 60947-4-1
-
Available with AC or DC control in 45mm width
-
Inbuilt Surge Suppressor in MX DC
-
Finger proof terminals upto 40A
-
Can be used with existing MN Range of thermal overload relays
-
Top mounting add-on blocks possible upto 80A
-
Spares available for entire range
-
Optimised for AC1/AC3 applications
Product Specification
Rated Current |
Description |
Model |
For AC control std. Coil Voltage - 24, 110, 240, 415V, 50Hz |
||
AC-15 4A at 415V |
MX0 40E (4 NO) |
CS94018 |
MX0 31E (3 NO + 1 NC) |
CS94019 |
|
MX0 22E (2 NO + 2 NC) |
CS94020 |
|
MX0 13E (1 NO + 3 NC) |
CS94041 |
|
MX0 04E (4 NC) |
CS94042 |
|
For DC control std. Coil Voltage - 24, 110, 220V |
||
AC-15 4A at 415V
|
MX0 40E (4 NO) |
CS94027 |
MX0 31E (3 NO + 1 NC) |
CS94028 |
|
MX0 22E (2 NO + 2 NC) |
CS94029 |
|
MX0 13E (1 NO + 3 NC) |
CS94043 |
|
MX0 04E (4 NC) |
CS94044 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Control Relay |
Manufacturer Details |
L&T Electrical & Automation 7th Floor, TC-II, Tower B, Prima Bay, Gate No.5, Saki Vihar Road, Powai, Mumbai-400072, Maharashtra, India |
Packer Details |
L&T Electrical & Automation 7th Floor, TC-II, Tower B, Prima Bay, Gate No.5, Saki Vihar Road, Powai, Mumbai-400072, Maharashtra, India |
Country of Origin |
India |
