SKU # 1000085401

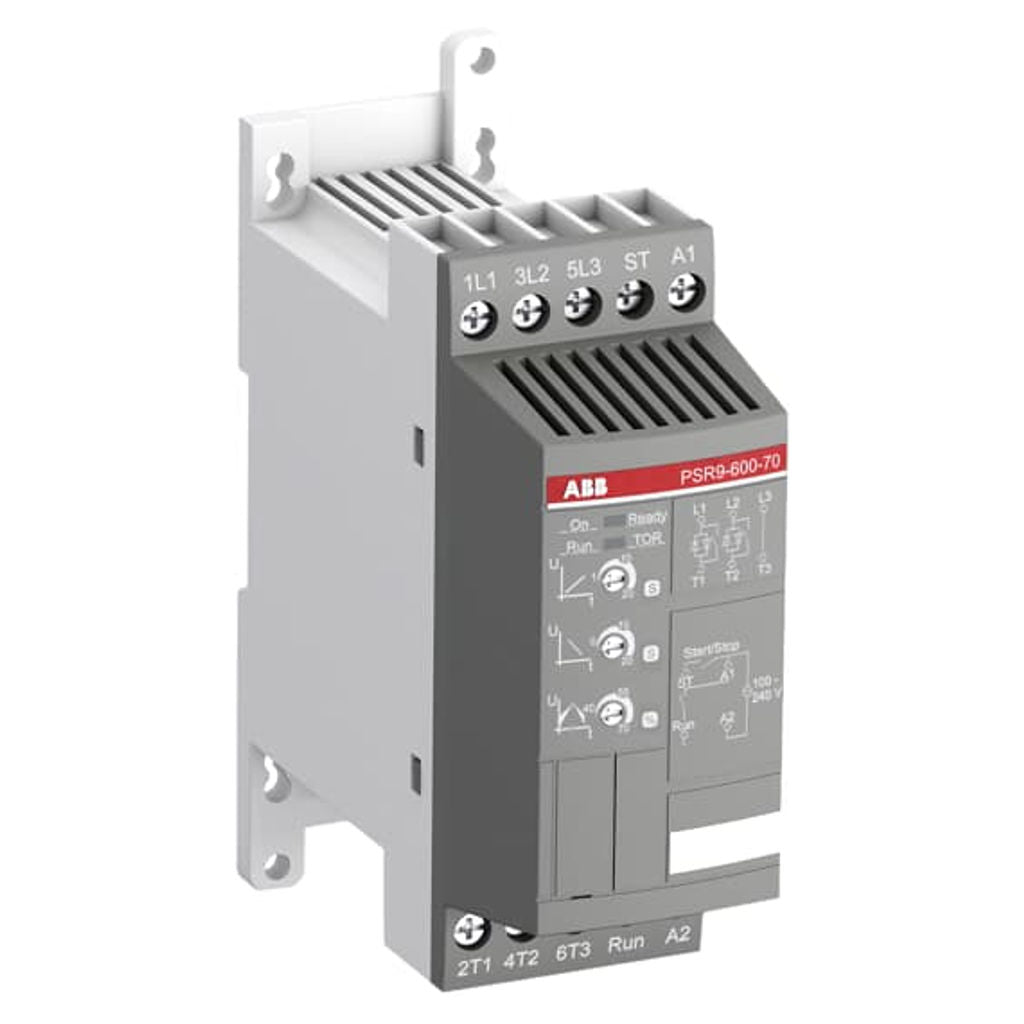

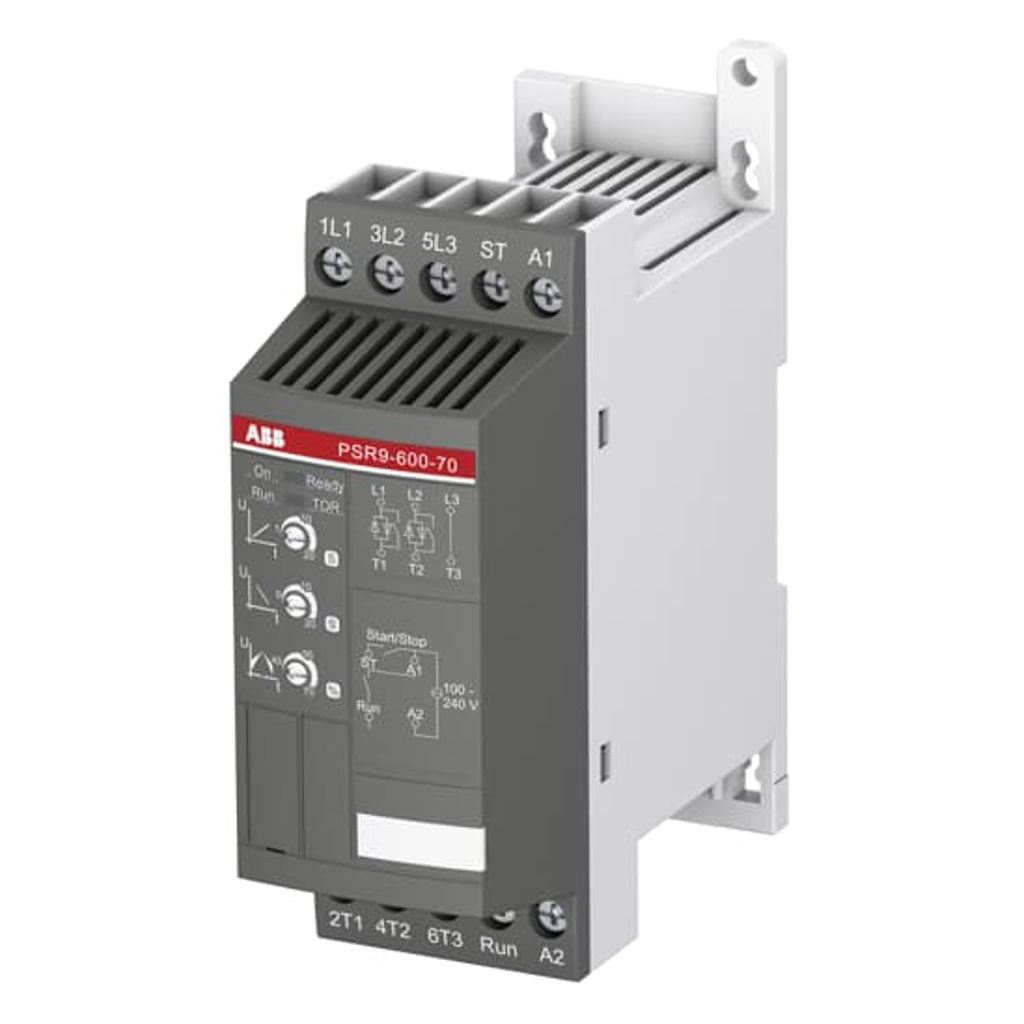

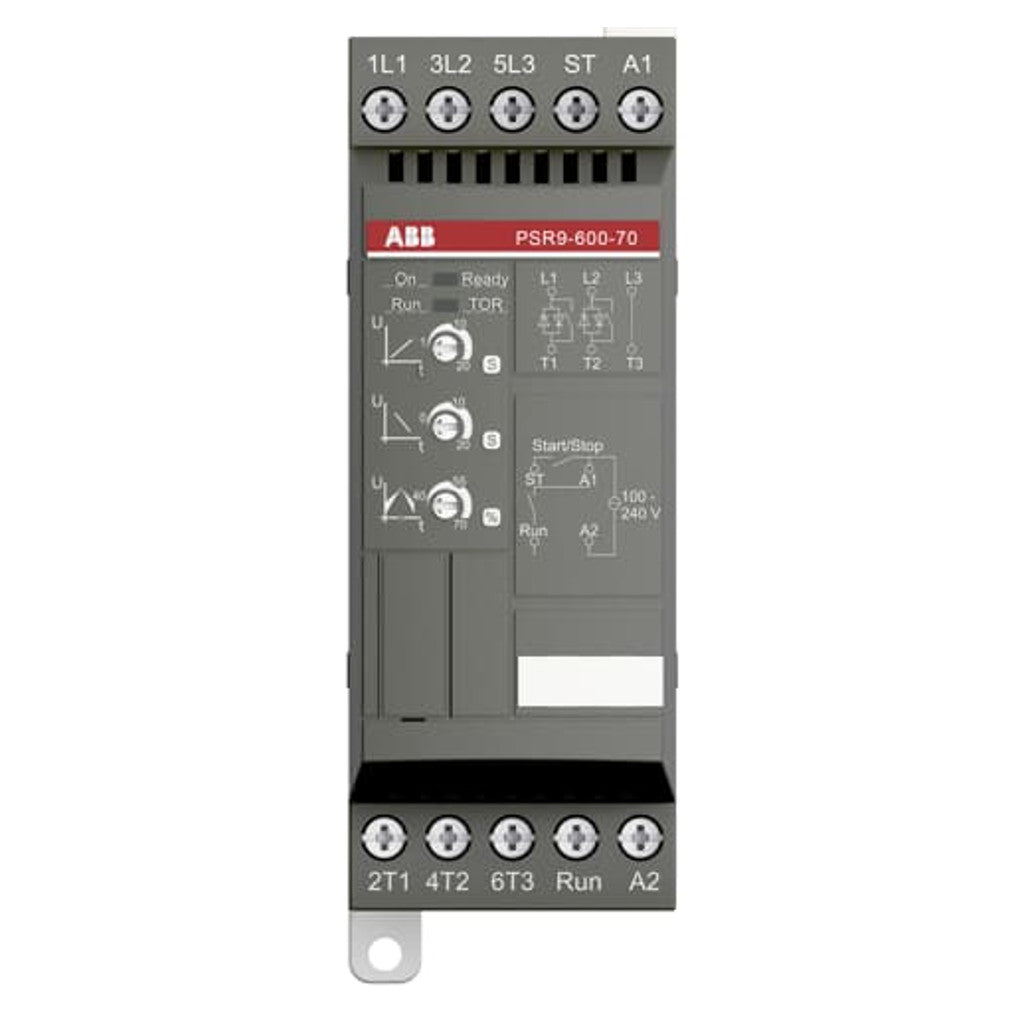

ABB PSR9-600-70 Soft Starter 1SFA896105R7000
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Two-phase controlled
-
Soft start and soft stop with voltage ramp
-
Built-in bypass for energy saving and easy installation
-
Fieldbus communication with fieldbus plug adapter and the fieldbus plug
-
Softstarter PSR9-600-70 for max 600V main voltage and 100-240V 50/60Hz control supply voltage
Product Specification
|
Brand |
ABB |
|
Product Type |
Soft Starter |
|
Product Code |
1SFA896105R7000 |
|
Model |
PSR9-600-70 |
|
Technical |
|
|
Rated Operational Voltage |
208 ... 600 V AC |
|
Rated Control Supply Voltage (Us) |
100 ... 240 V AC |
|
Rated Control Circuit Voltage (Uc) |
50
Hz / 60 Hz 100 ... 240 V AC |
|
Rated Frequency (f) |
50/60
Hz |
|
Rated Operational Power - In-Line Connection (Pe) |
|
|
Rated Operational Current - In-Line Connection (Ie) |
9 A |
|
Service Factor Percentage |
100 % |
|
Overload Protection |
Recommended MS116 6.30 ... 10.00 |
|
Integrated Electronic Overload |
No |
|
Adjustable Rated Motor Current Ie |
No |
|
Starting Capacity At Maximum Rated Current Ie |
4xIe for 6s |
|
Ramp Time |
0
... 20 second [unit of time] |
|
Initial Voltage During Start |
40 ... 70 % |
|
Step Down Voltage Special Ramp |
100 ... 60 % |
|
Current Limit Function |
No |
|
Switch For Inside Delta Connection |
No |
|
Run Signal Relay |
Yes |
|
By-Pass Signal Relay |
No |
|
Fault Signal Relay |
No |
|
Overload Signal Relay |
No |
|
Signal Indication Completed Start Ramp (LED) |
Green |
|
Signal Indication Ready To Start/Standby On (LED) |
Green |
|
Signal Indication Running R (LED) |
Green |
|
Signal Indication Ramping Up/Down (LED) |
Green |
|
Number Of Starts Per Hour At 3.5*Ie For 7 Sec. 50% On Time 50% Off Time |
10 |
|
Communication |
FiledBusPlug(Optional) |
|
Degree Of Protection |
IP20 |
|
Terminal Type |
Screw Terminals |
|
Connecting Capacity Main Circuit |
Rigid 1/2 x 0.75 ... 2.5 mm² |
|
Connecting Capacity Control Circuit |
1
x 0.75 ... 2.5 |
|
Connecting Capacity Supply Circuit |
Rigid 1/2 x 0.75 ... 2.5 mm² |
|
Tightening Torque |
Control
Circuit 1 N·m |
|
Product Main Type |
PSR9 |
|
Technical UL/CSA |
|
|
Maximum Operating Voltage UL/CSA |
Main Circuit 600 V |
|
Ampere Rating UL/CSA |
9 A |
|
Tightening Torque UL/CSA |
Control
Circuit 8.9 in·lb |
|
Environmental |
|
|
Ambient Air Temperature |
Operation
-25 ... +60 °C |
|
Dimensions |
|
|
Product Net Width |
114 mm |
|
Product Net Height |
140 mm |
|
Product Net Depth / Length |
45 mm |
|
Product Net Weight |
0.4 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Soft Starter |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
