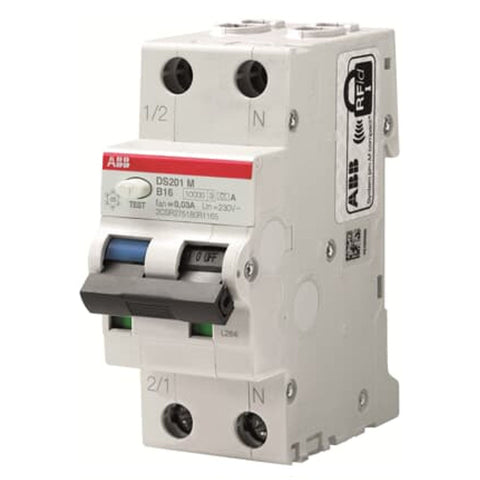

ABB DS200M Series RCBO 10kA AC Type DP 30mA
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The DS201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA)
Product Specification
|
Brand |
ABB |
|
Product Type |
RCBO |
|
Series |
DS200M |
|
Model |
DS201 M |
|
Code | Rated Current |
2CSR275080R1064 | 6A 2CSR275080R1104 | 10A 2CSR275080R1164 | 16A 2CSR275080R1204 | 20A 2CSR275080R1254 | 25A 2CSR275080R1324 | 32A 2CSR275080R1404 | 40A |
|
Technical |
|
|
Standards |
IEC/EN 61009-1, IEC/EN 61009-2-1 |
|
Product Name |
Residual Current Circuit Breaker with Overcurrent Protection |
|
Tripping Characteristic |
C |
|
Type of Residual Current |
AC type |
|
Rated Voltage (Ur) |
230 V |
|
Rated Operational Voltage |
230 … 240 V AC |
|
Rated Insulation Voltage (Ui) |
500 V |
|
Test Voltage (Ut) |
170 ... 264 V |
|
Dielectric Test Voltage |
2 kV |
|
Primary Rated Impulse Withstand Voltage |
4 kV |
|
Input Voltage Type |
AC |
|
Rated Residual Current |
30 mA |
|
Rated Short-Circuit Capacity (Icn) |
10 kA |
|
Rated Ultimate Short-Circuit Breaking Capacity (Icu) |
15 kA |
|
Rated Residual Breaking Capacity (IΔm) |
EN
61009-1 6000 A |
|
Rated Conditional Short-Circuit Current (Inc) |
15 kA |
|
Rated Service Short-Circuit Breaking Capacity (Ics) |
11.2 kA |
|
Maximum Surge Current |
0 kA |
|
Leakage Current Type |
AC |
|
Frequency (f) |
50/60 Hz |
|
Rated Frequency (f) |
50/60 Hz |
|
Power Loss |
6A-2.4W, 10A-1.8W, 16A-3.3W, 20A-3.6W, 25A-5.5W, 32A-6.4W, 40A-5W |
|
Power Supply Connection |
Arbitrary |
|
Contact Position Indication |
Red ON / Green OFF |
|
Energy Limiting Class |
3 |
|
Electrical Endurance |
10000 cycle |
|
Mechanical Endurance (Nendu) |
20000 cycle |
|
Number Of Poles |
2 |
|
Number Of Protected Poles |
1 |
|
Number Of Modular Spacings per DIN Rail |
2 |
|
Fault Indication |
Blue flag on toggle |
|
Operating Characteristic |
Instantaneous |
|
Overvoltage Category |
III |
|
Position of Neutral Terminals |
Right |
|
Tightening Torque |
2.8 N·m |
|
Accessory Type |
Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Undervoltage release, Overvoltage release, Motor operating device |
|
Actuator Type |
Toggle
- Insulation group II, Black RAL 9005, |
|
Housing Type |
Insulation group I - II, RAL 7035 |
|
Mounting Type |
on DIN rail EN 60715 (35mm) by means of mounting clip |
|
Release Type |
C |
|
Screw Terminal Type |
Failsafe Bi-directional Cylinder-lift Terminal |
|
Mounting Position |
Any |
|
Number Of Batteries |
0 |
|
Cable Size |
25 mm² |
|
Connecting Capacity |
Busbar
10 ... 10 mm² |
|
Wire Stripping Length |
12 mm |
|
Terminal Type |
Screw Terminals |
|
Environmental |
|
|
Ambient Temperature |
-25...55 °C |
|
Ambient Air Temperature |
Operation -25...55 °C |
|
Reference Ambient Air Temperature |
30 °C |
|
Degree of Protection |
Terminals IP20, Housing IP40 |
|
Pollution Degree |
2 |
|
Environmental Conditions |
28
cycles |
|
Resistance to Vibrations acc. to IEC 60068-2-6 |
0.1 mm or 1 g - 20 cycles at 5…150…5 Hz |
|
Resistance to Shock acc. to IEC 60068-2-27 |
25g / 2 shocks / 13 ms |
|
Technical UL/CSA |
|
|
Short-Circuit Current Rating (SCCR) |
0.03 A |
|
Dimensions |
|
|
Width In Number Of Modular Spacings |
2 |
|
Product Net Width |
0.035 m |
|
Product Net Height |
0.085 m |
|
Product Net Depth / Length |
0.069 m |
|
Product Net Weight |
0.200 kg |
|
Built-In Depth (t 2 ) |
69 mm |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
AC Type RCBOs |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
