ABB Formula MCCB 125-250A 25KA Single Pole A2N 250


ABB
Available



₹ 3,135.00

Check Pincode Availability

Product Description

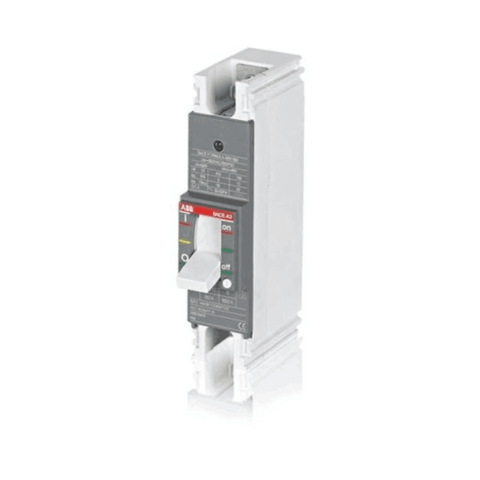

  • C.Breaker Formula A2N 250 Fixed Single-Pole With Front Terminals And Thermomagnetic Release

  • FORMULA link assembly for total discrimination between upstream and downstream devices Suitable for DC application till 250Vdc

  • Operation voltage till 550VAC, insulation voltage of 690VAC and impulse voltage of 6 KV

  • Product Name : Moulded Case Circuit Breaker

  • Product Main Type : SACE FORMULA

  • Number of Poles : 1

  • Product Net Weight : 0.37 kg

  • Product Net Width : 35 mm

  • Product Net Height : 150 mm

  • Product Net Depth / Length : 60 mm

  • Rated Insulation Voltage (Ui) : 690 V

  • Version : F

  • Terminal Connection Type : Front

  • Electrical Durability : 4000 cycle , 120 cycles per hour

  • Mechanical Durability : Nr. Operations 240 cycles per hour , Nr. Operations 10000 cycle

Product Specification

Rated current

Type

Product id

125 A

A2N 250 TMF 125-1250 1p F F

1SDA066769R1

150 A

A2N 250 TMF 150-1500 1p F F

1SDA068777R1

160 A

A2N 250 TMF 160-1600 1p F F

1SDA066770R1

175 A

A2N 250 TMF 175-1750 1p F F

1SDA066771R1

200 A

A2N 250 TMF 200-2000 1p F F

1SDA066772R1

225 A

A2N 250 TMF 225-2250 1p F F

1SDA066773R1

250 A

A2N 250 TMF 250-2500 1p F F

1SDA066774R1
