LAST SOLD AT ₹ 3,284.00
SKU # 1000011873

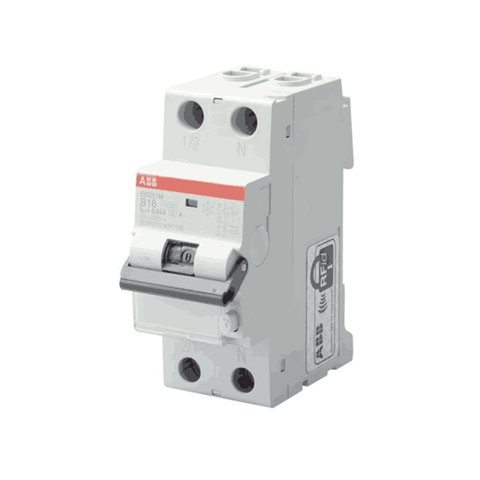

ABB RCBO 10kA 6-40A AC Type Two Pole DS201
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The DS201 series RCBO is a 1P+N in two-modules device for the protection of end user single phase circuits against overload and short-circuit currents
-
provides an optimal trade-off between safety and continuity of service, thanks to the resistance to unwanted trippings; protection against indirect contacts and additional protection against direct contacts (withsensitivity= 30 mA);protection and isolation of resistive and inductive loads.
-
Application: residential, commercial, industrial
-
Operating Characteristic:Instantaneous (APR High Immunity)
-
Standard: IEC/EN 61009
-
Type of Residual Current:AC type
-
Product Net Width:0.035 m
-
Product Net Height:0.085 m
-
Product Net Depth:0.069 m
-
Product Net Weight:0.239 kg
-
Rated Voltage (Ur):230/400 V
-
Power Loss:4.4 W
-
Ambient Air Temperature:Operation -25 ... +55 °C , Storage -40 ... +70 °C
Product Specification
|
Rated current |
Rated Residual Current |
Type |
Product id |
|
6 A |
30 mA |
DS201 M C6 APR30 |
2CSR275440R1064 |
|
10 A |
30 mA |
DS201 M C10 APR30 |
2CSR275440R1104 |
|
16 A |
30 mA |
DS201 M C16 APR30 |
2CSR275440R1164 |
|
20 A |
30 mA |
DS201 M C20 APR30 |
2CSR275440R1204 |
|
25 A |
30 mA |
DS201 M C25 APR30 |
2CSR275440R1254 |
|
32 A |
30 mA |
DS201 M C32 APR30 |
2CSR275440R1324 |
|
40 A |
30 mA |
DS201 M C40 APR30 |
2CSR275440R1404 |
|
6 A |
100 mA |
DS201 M C6 APR100 |
2CSR275440R2064 |
|
10 A |
100 mA |
DS201 M C10 APR100 |
2CSR275440R2104 |
|
16 A |
100 mA |
DS201 M C16 APR100 |
2CSR275440R2164 |
|
20 A |
100 mA |
DS201 M C20 APR100 |
2CSR275440R2204 |
|
25 A |
100 mA |
DS201 M C25 APR100 |
2CSR275440R2254 |
|
32 A |
100 mA |
DS201 M C32 APR100 |
2CSR275440R2324 |
|
40 A |
100 mA |
DS201 M C40 APR100 |
2CSR275440R2404 |
|
6 A |
300 mA |
DS201 M C6 APR300 |
2CSR275440R3064 |
|
10 A |
300 mA |
DS201 M C10 APR300 |
2CSR275440R3104 |
|
16 A |
300 mA |
DS201 M C16 APR300 |
2CSR275440R3164 |
|
20 A |
300 mA |
DS201 M C20 APR300 |
2CSR275440R3204 |
|
25 A |
300 mA |
DS201 M C25 APR300 |
2CSR275440R3254 |
|
32 A |
300 mA |
DS201 M C32 APR300 |
2CSR275440R3324 |
|
40 A |
300 mA |
DS201 M C40 APR300 |
2CSR275440R3404 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
2 Pole RCBOs |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
