Out of Stock!

SKU # 1000021245

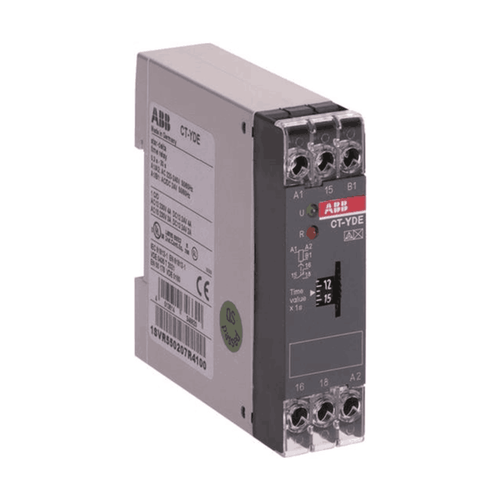

ABB Star-Delta Time Relay 1c/O CT-YDE

ABB Star-Delta Time Relay 1c/O CT-YDE


₹ 2,109.00

Quantity

Min Qty : 1



Delivery Availability
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The CT-YDE is a single-function electronic time relay from the CT-E timer range

  • It provides a star-delta function with a time range from 0.1 s to 10 s. This time relay operates with a rated control supply voltage of 24 V AC / DC / 220 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A

  • Timer Relay Type : Star-Delta

  • Time Range : 0.1-10 s

  • Rated Control Supply Voltage (Us) : 220 ... 240 V AC , 24 V AC/DC

  • Output : 1 c/o (SPDT) contact

  • Terminal Type : Screw Terminals

  • Rated Operational Current AC-12 (Ie) : (230 V) 4 A

  • Rated Operational Current AC-15 (Ie) : (230 V) 3 A

  • Rated Operational Current DC-12 (Ie) : (24 V) 4 A

  • Rated Operational Current DC-13 (Ie) : (24 V) 2 A

  • Mounting Position : Any

  • Product Net Width : 22.5 mm

  • Product Net Height : 78 mm

  • Product Net Depth / Length : 78.5 mm

  • Product Net Weight : 0.067 kg

Product Specification

Time Range

Product Id

Description

0.1-10 s

1SVR550207R1100

CT-YDE 0.1-10 s , 24 V AC/DC,220 -240V AC

0.3-30 s

1SVR550207R4100

CT-YDE 0.3-30 s, 24 V AC/DC,220 -240V AC

3-300 s

1SVR550207R2100

CT-YDE 3-300 s , 24 V AC/DC,220 -240V AC

0.1-10 s

1SVR550200R1100

CT-YDE 0.1-10 s,110-130V AC

0.3-30 s

1SVR550200R4100

CT-YDE 0.3-30 s,110-130V AC

3-300 s

1SVR550200R2100

CT-YDE 3-300 s,110-130V AC
