SKU # 1000136570

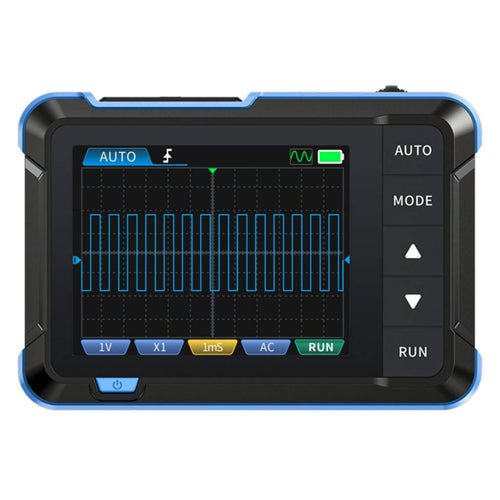

Fnirsi 2-In-1 Mini Digital Oscilloscope Waveform Generator DSO-153

Fnirsi 2-In-1 Mini Digital Oscilloscope Waveform Generator DSO-153

Visit the Fnirsi Store

₹ 6,950.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • The DSO153 combines performance and portability, making it an excellent tool for routine maintenance and educational use

  • It offers a well-rounded feature set suitable for general signal testing

  • This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto)

  • It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure up to ±400V voltage with an efficient one-click AUTO, which can display the measured waveform without complicated adjustments

  • Additionally, it features a function signal generator capable of outputting 14 types of signals (10KHz)

  • Equipped with a 2.8-inch 320x240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged

  • Features

  • Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist

  • DSO oscilloscope: 5MS/s, 1MHz bandwidth, ±400V voltage range

  • Signal Generator: 10KHz

  • High-definition 320x240 LCD, Type-C interface

  • Finished assembly, lightweight, perfect for maintenance

  • Versatile trigger functions: single, normal, automatic

  • Signal Type Support: Periodic analog signals and non-periodic digital signals

  • 8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean

  • One-Click AUTO Mode: Effortlessly display waveforms with minimal input

  • Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge

  • Upgraded Version: Oscilloscope and DDS signal generator dual mode with 1 MHz High bandwidth, 5MS/s high sampling rate, 500ns-20S time base range, and can measure voltages up to 400V

  • DDS Signal Generator: The DDS signal generator can output 14 waveforms, and the maximum waveform output frequency is up to 10KHz

  • Easy Measurement: The handheld oscilloscope is equipped with intelligent one-click automatic configuration function

  • Long press the AUTO button to quickly calibrate the baseline and display the measurement waveform without complicated debugging

  • Professional Design: The automotive oscilloscope is equipped with a 2.8-inch High-definition LCD display, 320x240 resolution, Auto/Normal/Single trigger function, suitable for periodic analog signals and non-periodic digital signals

  • Rechargeable lithium battery: The portable oscilloscope has a built-in 1000 mAh high-quality lithium battery, supports Type-C interface charging, and has a battery life of about 4 hours

ProductSpecification

Brand

Fnirsi

Product Type

Waveform Generator

Product Model

DSO-153

Basic Parameters

Display

2.8 Inches / PPI:320240

Lithium Battery Capacity

1000mAh

USB Charging

5V/1A

Mini Oscilloscope

Channel

1

Bandwidth

1MHz

Time Base Range

500ns/Div-20s/Div (Progress according to the 1-2-5 way)

Trigger Mode

Auto / Normal / Single

Coupling

AC/DC

Sampling Rate

5MS/s

Vertical Sensitivity

10mV/Div-20V/Div (Progress according to the 1-2-5 way)

Voltage Range

X1:±40V (Vpp:80V)
X10:±400V (Vpp:800V)

Trigger Edge

Rising edge / Falling edge

Signal Generator

Frequency

0-10KHz

Amplitude

0.1-3.3V

Duty Cycle

0-100% (rectangular and sawtooth waves)

Waveforms

Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave

Size

99 x 68.3 x 19.5 mm

Weight

100 g

Warranty

2 Years

OtherDetails

Dimension (CM) - L x B x H

99 x 68.3 x 19.5

Unit Of Measurement

1 Piece

Weight

0.100 kg

Generic Type

Waveform Generator

Manufacturer Details

Shenzhen FNIRSI Technology Co., Ltd. (FNIRSI)

Room 409, Block B, Taogindi Building, Dalang, Longhua District, Shenzhen, China

Email: info@fnirsi.com

Packer Details

Shenzhen FNIRSI Technology Co., Ltd. (FNIRSI)

Room 409, Block B, Taogindi Building, Dalang, Longhua District, Shenzhen, China

Email: info@fnirsi.com

Country Of Origin

China
