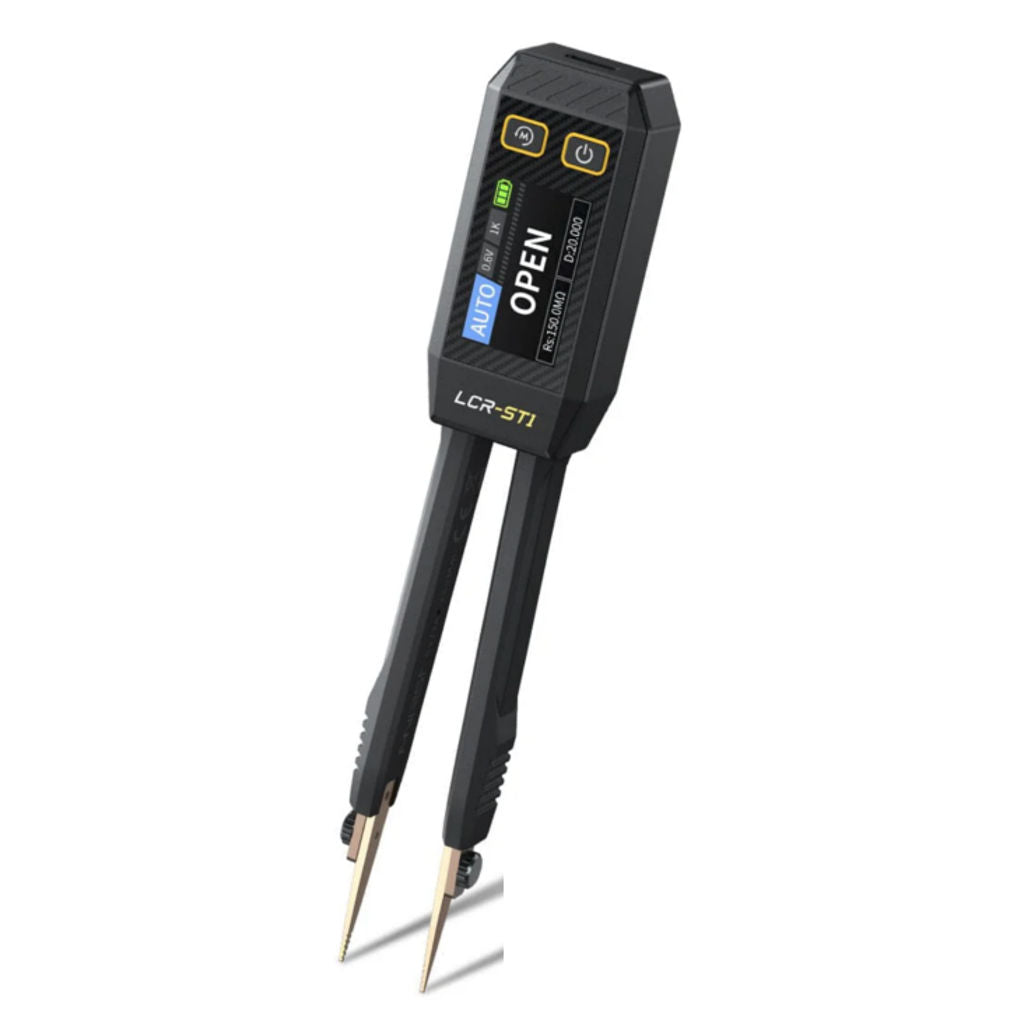

Fnirsi Mini Smart Digital Tweezer SMD Tester LCR-ST1

Fnirsi Mini Smart Digital Tweezer SMD Tester LCR-ST1

Visit the Fnirsi Store

₹ 5,890.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • The LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument

  • It supports precise automatic measurements of resistance, capacitance, inductance, diodes and Continuity

  • This product adopts advanced measurement technology to ensure high accuracy and stability

  • Its 1.14 inch color screen display and magnetic adsorption function enhance the convenience of use The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz with 0.3V, 0.6V RMS test levels

  • The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components

  • The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories

  • Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately

  • Don't miss out on this excellent tool that combines functionality and portability

  • LCR Tweezer Tester

  • The FNIRSI LCR-ST1 is a portable and multifunctional instrument for measuring resistance, capacitance, inductance, and diodes

  • Measurement Range

  • 3 test frequencies – 100 Hz, 1 kHz, 10 kHz 2 test voltage - 0.3 Vrms, 0.6 Vrms R: 10 mΩ to 10 MΩ / C: 1 pF to 22 mF / L:1 uH to 10 H

  • Multiple Functions

  • D, Z, Q, R, ESR value reading

  • Auto recognition of elecronic components, primary and secondary parameters display 1.14'' HD color display, is easy to operation

  • Data Storage And Export

  • The LCR tester automatically saves test records and allows data transfer to a PC via Excel

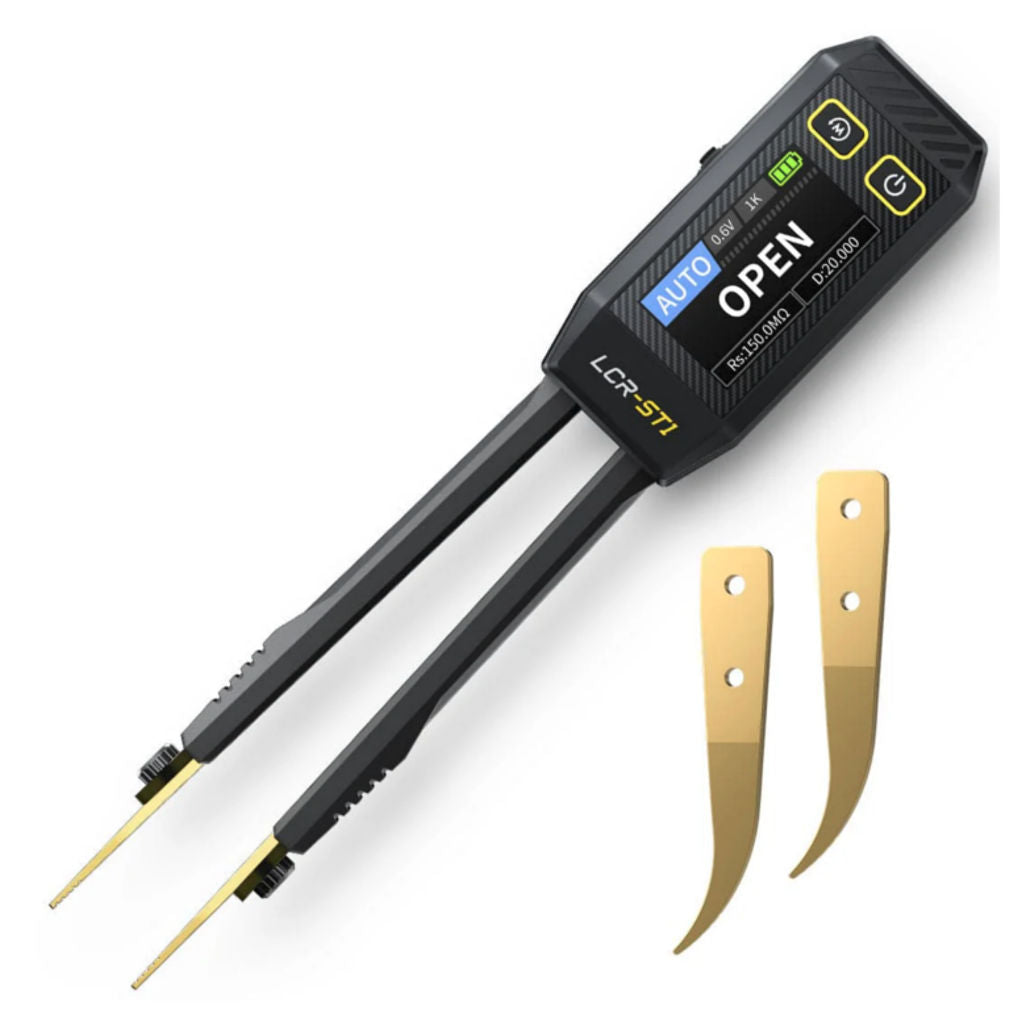

  • 2 Types Of Tweezer Heads

  • With pointed head and hook head, it is convenient to test different types of products

  • It is equipped with a storage bag and can be charged via a data cable

ProductSpecification

Brand

Fnirsi

Product Type

Tester

Product Model

LCR-ST1

Capacitance Range

1pF-22mF

Resistance Range

10mΩ-10MΩ

Frequency Test

100Hz, 1kHz, 10KHz

Parameter Display

ESR, D value, Q value, Z value, X value

Charging Interface

Type-C, 5V/A

Auto Recognition Measurement

Support

Auto Shutdown

Support

History Record

Connect to PC to view and export

Inductance Range

1μh-10H

Diode

On voltage 0.7V

Level Test

0.3V, 0.6V RMS

Display

1.14" color screen

Power Supply

250mAh lithium battery

Replaceable Tweezer Head

Support

Support

Support

Size

28 x 19 x 150 mm

Weight

41 g

Warranty

2 Years

OtherDetails

Dimension (CM) - L x B x H

28 x 19 x 15

Unit Of Measurement

1 Piece

Weight

0.41 kg

Generic Type

SMD Tester

Manufacturer Details

Shenzhen FNIRSI Technology Co., Ltd. (FNIRSI)

Room 409, Block B, Taogindi Building, Dalang, Longhua District, Shenzhen, China

Email: info@fnirsi.com

Packer Details

Shenzhen FNIRSI Technology Co., Ltd. (FNIRSI)

Room 409, Block B, Taogindi Building, Dalang, Longhua District, Shenzhen, China

Email: info@fnirsi.com

Country Of Origin

China
