SKU # 1000136586

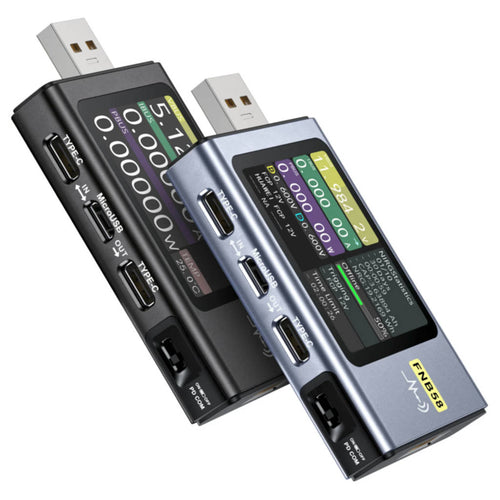

Fnirsi USB Fast Charge Tester FNB58

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
ProductSpecification
-
Key Features
-
The FNB58 USB tester is a high-reliability, high-safety USB voltage andcurrent detection meter and a mobile communication terminal fast chargingtrigger
-
It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface
-
Use external 16-bit ADC, PD protocol physical chip
-
It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks; it can be used to measure the charging power of mobile phones and the input and output of mobile power supplies; it can be used to test the fast charging protocol of chargers
-
Updated USB Tester
-
FNIRSI FNB58 has a 2.0-inch TFT LCD display, integrated USB-A, Micro-USB, Type-C interface
-
It is a USB voltage andcurrent detection meter and a mobile communication terminal fast charging trigger with gravity sensor
-
Multifunction USB Digital Tester
-
FNB58 uses external 16-bit ADC, PD protocol physical chip
-
FNB58 USB tester can monitor the voltage, current, power, resistance, capacity, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers
-
Fast Charge Protocol Trigger Detection
-
FNB58 supports QC2.0/QC3.0, FCP/SCP, AFC, PD2.0/3.0, VOOC/WARP, Super VOOC 1.0/2.0 trigger
-
The above protocols all support automatic monitoring
-
MTK-PE automatic detection
-
Support QC2.O->PD2.0 protocol conversion
-
Parameter Recording
-
The highest six-digit display of voltage, current and power
-
10 sets of switchable capacity, power etc
-
Support low-speed waveform drawing, 2 sps-100 sps sampling rate Support high-speed ripple drawing, up to 4 M sps sampling rate
-
USB Tester Detection Function
-
The resistance measurement of the wire by the differential pressure method
-
E-Marker Cable chip reading
-
DASH Cable data reading
-
Record of startup time
-
Onboard temperature measurement
-
PD monitor. Analog DASH cable
ProductSpecification
Brand | Fnirsi |
Product Type | Tester |
Product Model | FNB58 |
Monitor Voltage | 4~28V |
Monitor Power | 0~140W |
Load Equivalent Intemal Resistance | 0~9999.9Ω |
Capacity | 0~9999.99Ah |
Cable Resistance | 0~9999.9Ω |
Record Time | 99days 23:59:59 |
Monitor Current | 0~7A |
D+/D- Voltage | 0~3.3V |
Equipment Temperature | °C/°F |
Energy Used | 0~9999.99Wh |
Equipmnt Running Time | 99days 23:59:59 |
Warranty | 2 Years |
OtherDetails
Dimension (CM) - L x B x H | 73 × 36 × 12 |
Unit Of Measurement | 1 Piece |
Weight | 0.21 kg |
Generic Type | USB Tester |
Manufacturer Details | Shenzhen FNIRSI Technology Co., Ltd. (FNIRSI) Room 409, Block B, Taogindi Building, Dalang, Longhua District, Shenzhen, China Email: info@fnirsi.com |
Packer Details | Shenzhen FNIRSI Technology Co., Ltd. (FNIRSI) Room 409, Block B, Taogindi Building, Dalang, Longhua District, Shenzhen, China Email: info@fnirsi.com |
Country Of Origin | China |
