SKU # 1000136624

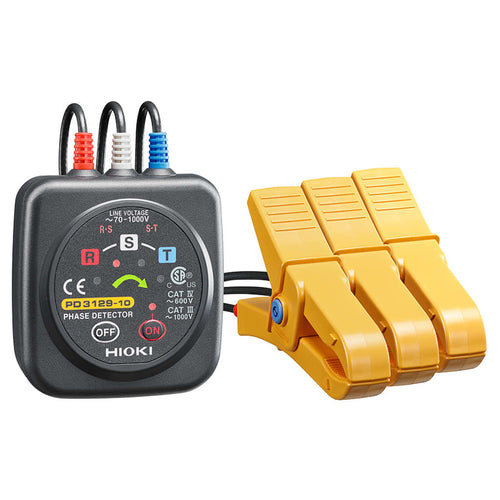

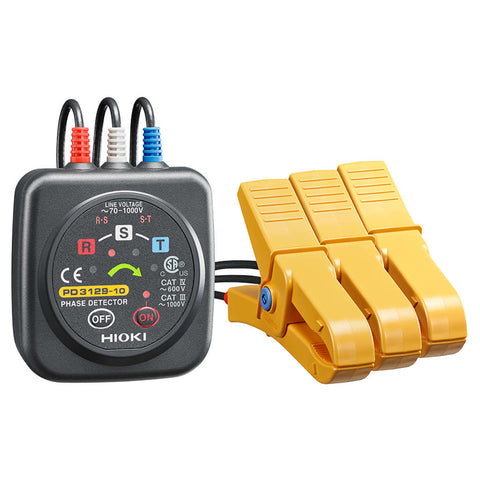

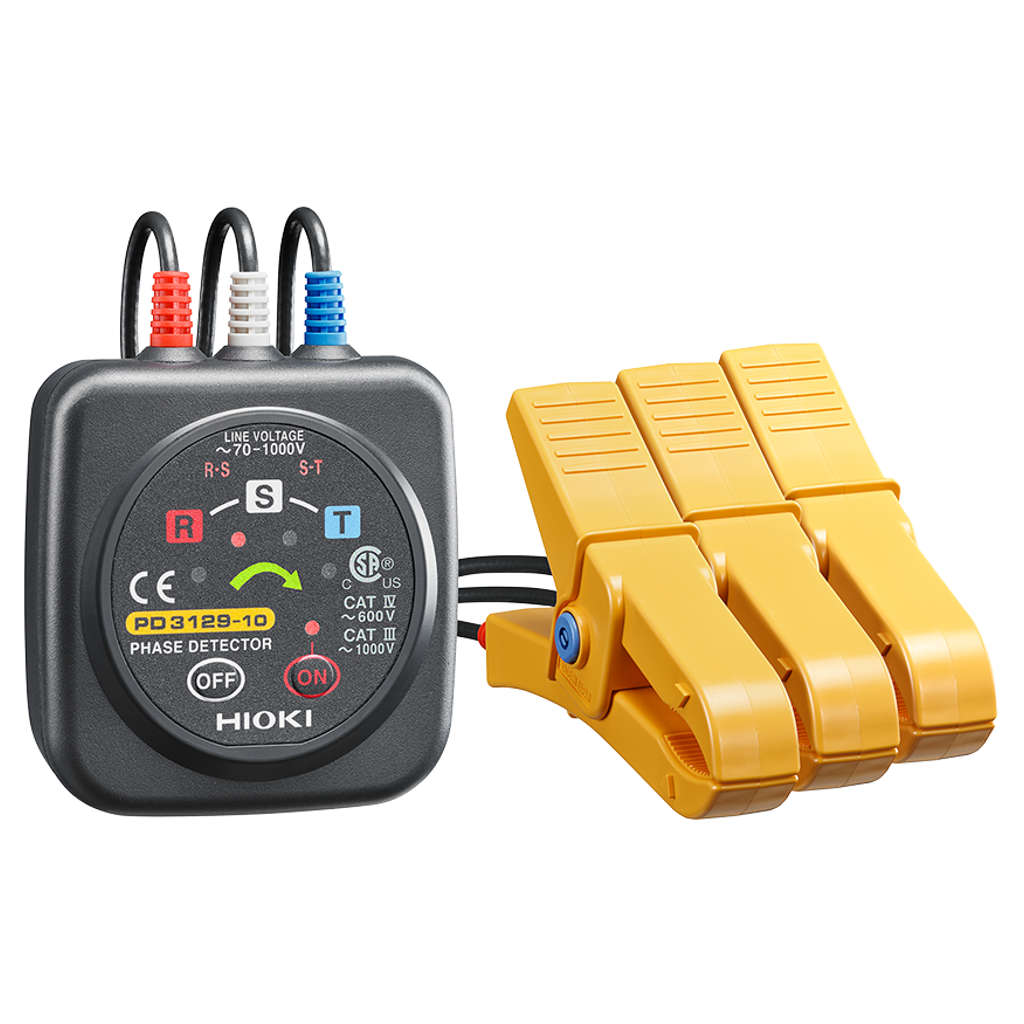

Hioki Phase Detector PD3129-10

Hioki Phase Detector PD3129-10

Visit the Hioki Store
In Demand

₹ 17,390.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Bestomart Diwali Sale 2025

Coupon Image

Use the coupon codes purchase of ₹4,000/- & above

Above ₹2,500
Use
LIGHT100
Above ₹7,500
Use
CRACKER200
Above ₹15,000
Use
SHINE300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Hioki’s non-contact voltage detection and measurement technology places efficiency and safety as priority considerations with the goal of protecting customers that need to conduct on-site electrical work as part of renovations and expansions of manufacturing plants and buildings

  • Model PD3129-10 is a non-contact phase rotation meter that detects the phase of electrical current flow within insulated wires without using metallic contact voltage clips

  • The green arrow indicates normal phase, which can be useful for visual reports that document the proper completion of electrical work

  • Simply clip clamps onto wire insulation

  • Green LED arrow clearly shows phase direction, perfect for visual reports

  • Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance

  • Intermittent beeps signal positive phase; continuous tone signals reverse phase

  • Magnetic base allows the instrument to be secured on a distribution panel

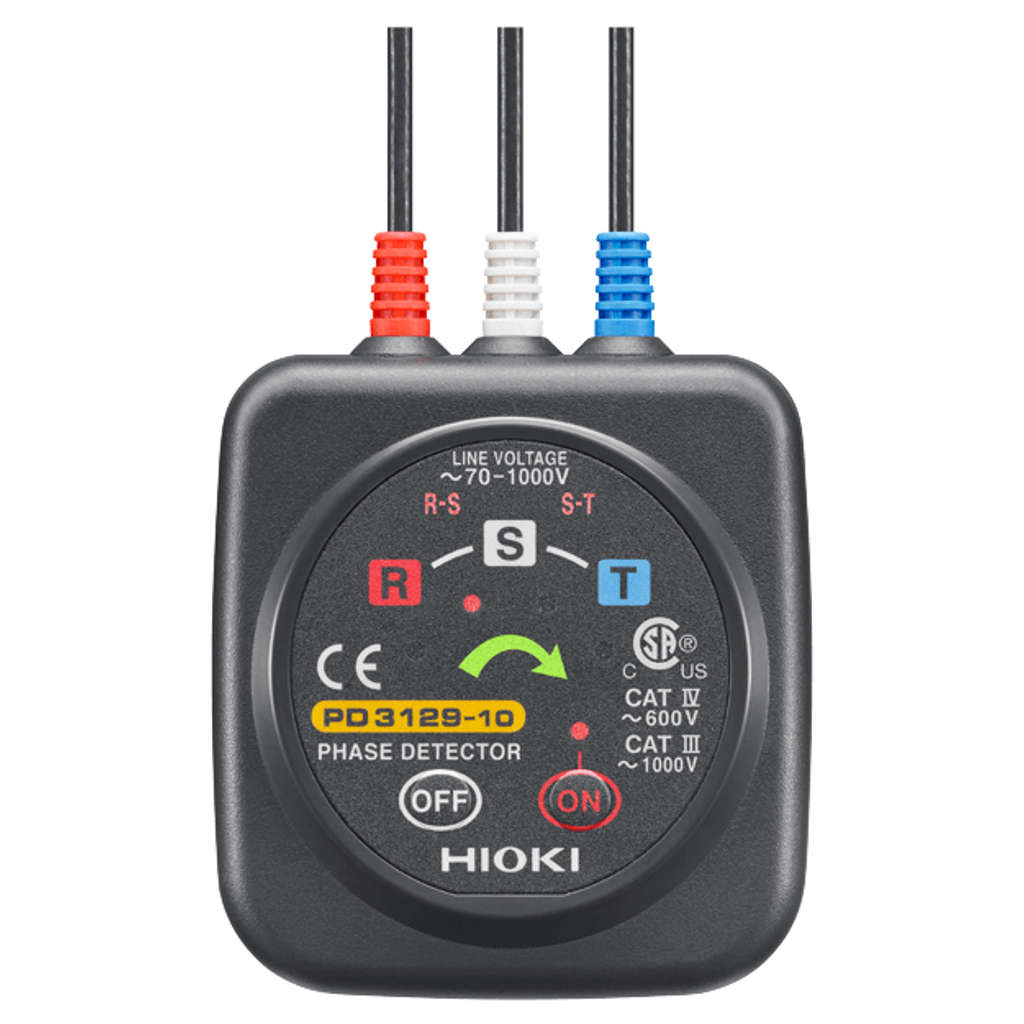

  • Easy-To-Understand Detection Of Normal Phase With Lit Arrow

  • The arrow in the center of the instrument turns green to indicate normal phase

  • In this way, normal phase can be recognized at a glance

  • In addition, the arrow shows up clearly in photographs, making the PD3129 ideal for documenting proper installation in end-of-project reports

  • Safe, No-Metal-Contact Design

  • The PD3129 uses no-metal-contact clips that need only be clipped to the outside of each insulated wire, allowing phase to be detected safely

  • Magnetic Back For Maximum Work Efficiency

  • Four magnets on the back of the instrument allow it to be secured in place on distribution panels

  • By leaving your hands free for other tasks, this feature dramatically boosts work efficiency

ProductSpecification

Brand

Hioki

Product Type

Phase Detector

Product Model

PD3129-10

Voltage Detection Method

Static induction

Voltage Range

70 to 1000 V AC (50/60 Hz) (sine wave,continuous input)

Frequency Range

45 Hz to 66 Hz

Object To Be Connected

7 mm (0.28 in) to 40 mm (1.57 in) of insulated wiring

Display

Phase detection : Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up
Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously

Battery Check Function

Power ON lamp: lights up (Power ON), blinks (Battery LOW)

Auto Power Off

Auto shut off if no activity is detected after power is turned ON for 15 minutes

Functions

Phase detection (positive and negative)

Power Supply

R6P (AA) manganese battery ×2, Continuous use: 70 hr

Included Accessories

Carrying case ×1, Strap ×1, Spiral tube ×1, Instruction manual ×1, R6P (AA) manganese battery ×2

Dimensions (W x H x D)

70 x 75 x 30 mm

2.76 x 2.95 x 1.18 Inch

Weight

240 g / 8.5 oz

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) L x B x H

3 x 7 x 7.5

Unit Of Measurement

1 Piece

Weight

0.250 kg

Generic Name

Phase Detectors

Packer Details

Hioki

Unit No. 123 & 124, 1st Floor,

Suncity Business Tower, Golf Course Road,

Gurugram - 122003, Haryana, India

Phone : 08035948127

Importer Details

Hioki

Unit No. 123 & 124, 1st Floor,

Suncity Business Tower, Golf Course Road,

Gurugram - 122003, Haryana, India

Phone : 08035948127

Country Of Origin

India
