Honeywell Armored UTP Cat6 CCTV Cable 305 Meters

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Honeywell Cat6 ECCS Armored Cable 4 Pairs used to transmit High Speed Data, Voice and
Video signals both digital & analog on Local Area Networks -
With 250 MHz operational bandwidth it well exceeds the requirement of ANSI/TIA 568-C.2 and ISO 11801
-

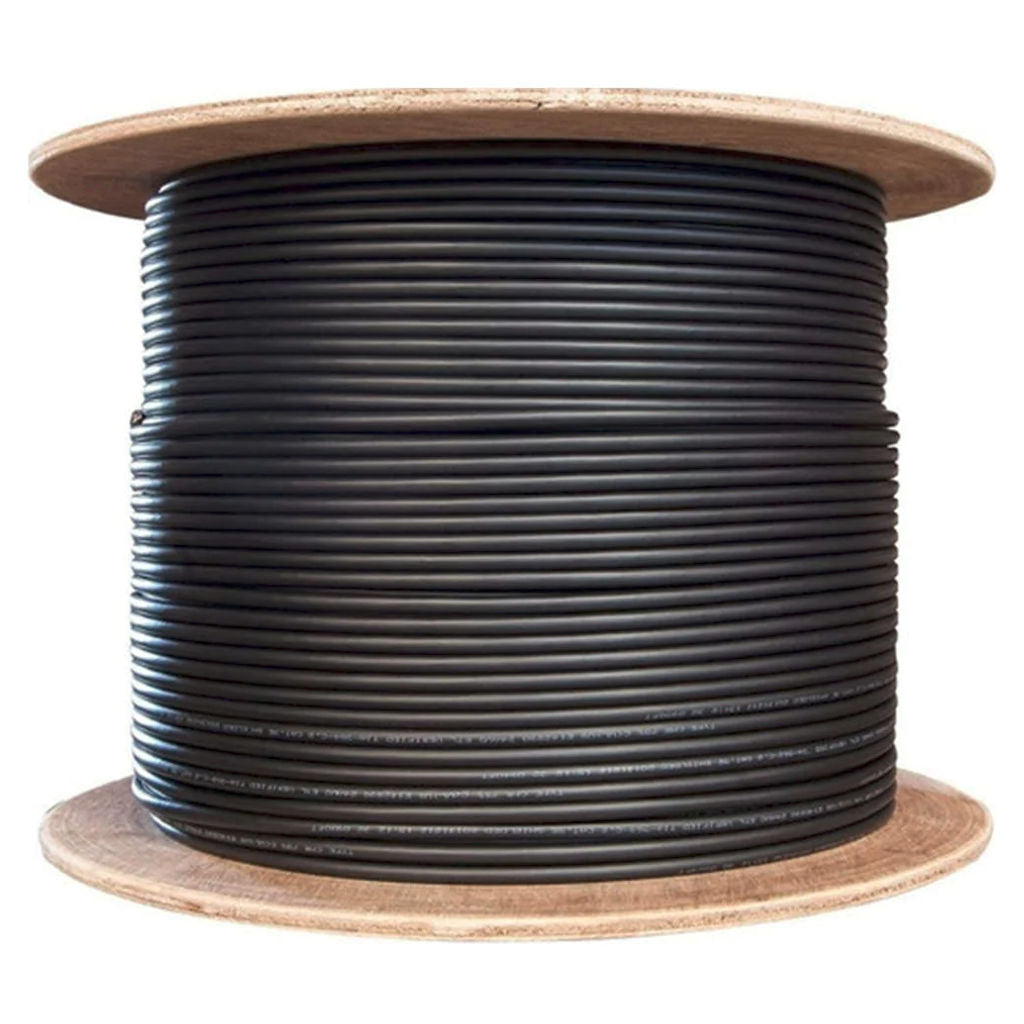

305 Mtrs Reel
-

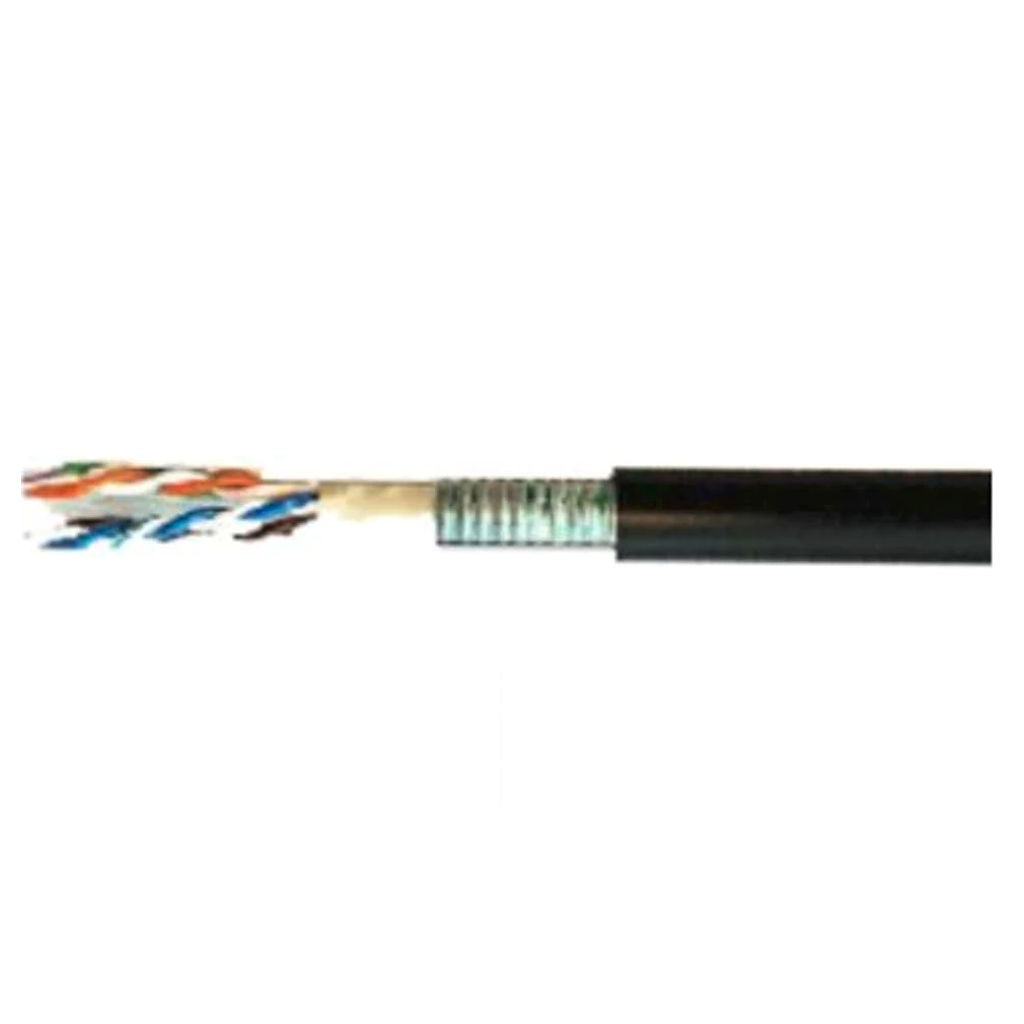

ECCS Tape Between Two Sheaths for Better Protection
-
Inner Sheath FR-PVC, Outer Sheath Black PE, Anti rodent
-
UV Resistant
-
Suitable for Outdoor Applications
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
Brand | Honeywell |
Product Type | CCTV Cable |
Product Model | Armored UTP |
Conductor | Solid Bare Electrolytic Grade Copper |
Nominal Conductor Diameter | 23AWG (0.555 ± 0.015 mm) |
Insulation | Polyethylene (HDPE) |
No Of Pair | 4, Each Twisted together |
Color Code | Pair #1 Orange-White with Orange Pair #2 Brown-White with Brown Pair #3 Blue-White with Blue Pair #4 Green-White with Blue |
Inner Sheath | FR-PVC |
Inner Sheath Colour | Grey |
Armouring | ECCS Tape (Thickness>0.125 mm) |
Outer Sheath | PE - Black - Antirodent thickness - 1.3mm Nominal |
Outer Sheath Colour | Black |
Approximate OD | 10.5 + 0.5 mm |
RIP Cord | Yes (Optional) |
Sequential Marking | At Every Meter |
Cross Filler | HDPE |
Temperature Rating | 20 to + 70°C |
Low Frequency Electrical Parameters | |
Conductor Resistance (DC) | 93.5OHMS/1000 Mtr. @ 20 Degree C. Max. |
Resistance Unbalance | 5% Max |
Mutual Capacitance | 5.6 nF/100 Mtr. Max |
Capacitance Unbalance Pair/ground | 330pf/100M Max |
Propagation Delay Skew | 536 nS/100M |
Normal Velocity of Propagation | 69 |
Impedance | 100 ± 15% OHM |
Worst Case Cable Skew | 45nS/100M |
Physical Characteristcs | |
Installation Temperature | 0 to 50° C |
Storage Temperature | -20 to 75°C |
Operating Temperature | -20 to+70° C |
Electrical Parameters | |
Conductor Resistance (DC) | 93.8Ω/1000 Mtr. @20°c Max |
Resistance Unbalance | 5% Max |
Mutual Capacitance | 5.6 nf/100 Mtr. Max |
NVP | 69% |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H | 28 x 14.3 x 17 |
Unit of Measurement | 1 Roll |
Weight | 3 kg |
Generic Type | CCTV Cable |
Manufacturer Details | Honeywell, Secure Connection Limited, Flat C 61/F, Block A, LA Rossa, Coastal Skyline 12 Tung Chung, Water Front Road Tung Chung, N.T., Hong Kong |
Packer Details | Honeywell, Secure Connection Limited, Flat C 61/F, Block A, LA Rossa, Coastal Skyline 12 Tung Chung, Water Front Road Tung Chung, N.T., Hong Kong |
Importer Details | Creative Peripherals & Distribution Limited Jayem Warehousing Pvt. Ltd., Sumeet Logistics, Building No. C-3,Gala No. 1 to 6A, At Village Kikse-Borivili, Opp. Rajdhani Dhaba, Mumbai-Nasik Highway, District Thane, Bhiwandi-421302. |
Country of Origin | China |
