SKU # 1000040501

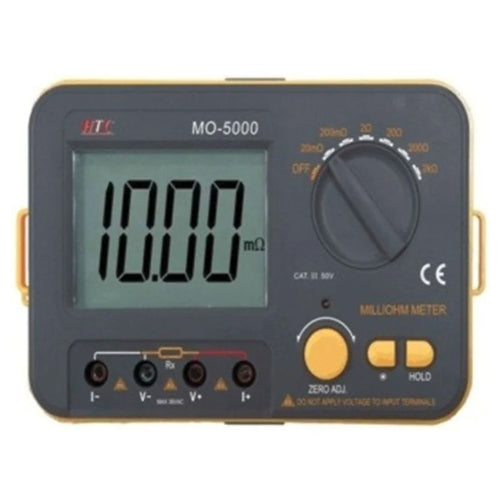

HTC Digital Milliohm Meter MO-5000

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Large LCD Display For Easy Reading
-
4 Wire Testing, Capable Of Testing Extreme Low Resistance
-
Accurate Measurement Of Conductor,Electric Heading Elements And Solder Point
-
HOLD Key For Data Hold
-
Connection For External Power Supply
-
High Measurement Range Of 0.01mΩ to 2kΩ at 6 Ranges
-
Backlight LCD For Easy Reading Under Dark Light
-
Strong Anti-Magnetic And Anti-Jamming Functions
-
Full Function Protection
-
Standard Accessories: 4-Wire Test Lead, Shoulder Strap, Battery, Operation Manual, Packing Gift Box
-
Product Code: MO-5000
-
Model No: HTC-F5
-
Dimension: 176(L) x 116(W) x 63(D)mm
-
Warranty: As Per Manufacturer Terms And Condition
Product Specification
Range / Range / Resolution |
Measuring Current |
20mΩ / ±(1.5%rdg±3) / 0.01mΩ |
Approx. 500mA |
200mΩ / ±(0.5%rdg±3) / 0.1mΩ |
|
2Ω / ±(0.5%rdg±3) / 1mΩ |
|
20Ω / ±(0.5%rdg±3) / 10mΩ |
|
200Ω / ±(0.5%rdg±3) / 100mΩ |
|
2kΩ / ±(0.5%rdg±3) / 1 Ω |
Special Function |
MO-5000 |
Low Battery Indication |
Less than approx. 7.5V |
Functional Protection |
- |
Sampling Rate |
3 times/sec. |
Operation Mode |
Manual Range |
Max. Display |
1999 |
LCD Size |
75 x52 mm |
Power Source |
1.5V AA battery x6pcs, or External DC 9VPower Source |
Power Consumption |
Quiescent Current Approx.50mA |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Milliohm Meter |
Manufacturer Details |
HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002 |
Packer Details |
HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002 |
Country of Origin |
India |
