LAST SOLD AT ₹ 33,399.00
SKU # 1000080622

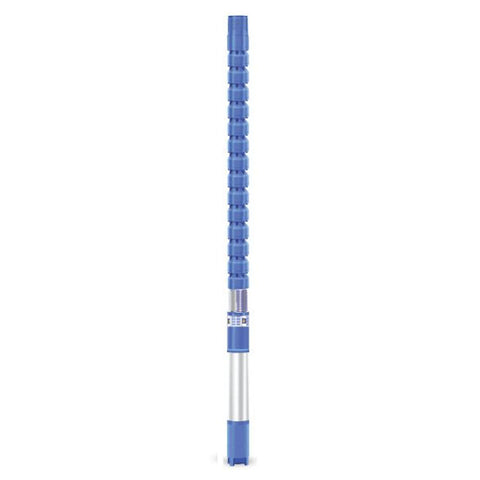

Latteys V6 Submersible Pump Three Phase 5HP 5Stage FGV6276
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
We manufactured Submersible Pump sets as per IS: 8034 Standard which can be used in the field of advanced technology
-
All parts are manufactured and fitted precisely using CNC machine that imparts excellent mechanical strength and reliability
-
The electrical design of Latteys Motors has been done with enameled/polyester Coated winding to improve efficiency and reduce electrical consumption
-
Salient Feature
-
Longer product life
-
Easy to install, easy to start
-
Efficient energy saving
-
Value for money
-
100% cost recovery in just 30 months
-
High Discharge & Suction
-
Wide Voltage Range
-
Application
-
Agriculture
-
Car washing
-
Domestic & Hospitality Industry
-
RO water treatments
-
Social Water Heater
-
Material Of Construction
-
Motor Body
-
Stainless Steel
-
Stator
-
Vacuum Impregnated and epoxy coated for corrosion resistance
-
Thick end laminations are provide to protect motor windings
-
Rotor
-
EC Grade Copper Rotor/Aluminum Die Cast Rotor Coated with polyurethane paint for corrosion resistance and dynamically balanced for vibration free smooth operation
-
Stamping
-
Electrical Steel High Grade For Better Performance
-
Windings
-
PVC/Polyester insulated EC Grade copper
-
Thrust Bearings
-
Resin Carbon ,SS AISI 420 Pad with Base CI FG 260 , Special Self- aligning and water lubricated to with stand high axial thrust load
-
Bearing Bush
-
LTB-4 Grade, Nitrile-butadiene rubber, Heavy duty angular contact bearing with load bearing capacity
-
Bearing Diaphragm
-
Nitrile-butadiene rubber diaphragm Adequately sized to accommodate expansion of water inside the prevent loss cooling water
-
Impeller
-
AISI SS 420/410 High quality abrasion resistant Impeller dynamically balanced
-
Bowl
-
High Grade CI FG 260/200 Cast Iron & Stainless Steel
-
Wear Rings
-
High quality abrasion resistant Nitrile-butadiene rubber with Metal Ring Inside
-
Shaft
-
AISI 420/431 Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances
-
Casting & NRV
-
CI FG 260/200,Provided with perforated Stainless Steel Strainer and adequately size to allow the water to be sucked-in with minimum friction
-
Pump Sleeves
-
Stainless Steel reinforced with Chromium to increase wear resistance against sand
-
Cable Sealing
-
Nitrile-butadiene rubber, Designed so that no Borewell water with sand can enter the motor
-
Oil Seal, Mechanical Seal
-
Nitrile-butadiene rubber, Resin Carbon, Ceramic for High Sealing Solution
-
Fasteners
-
Stainless Steel Grade
Product Specification
|
Brand |
Latteys |
|
Product Code |
FGV6276 |
|
Product Type |
Submersible Pump |
|
HP/kW |
5/3.75 |
|
Stage |
5 |
|
Phase |
Three Phase |
|
Voltage |
415 V |
|
Speed |
2800 RPM |
|
Delivery |
65 mm |
|
Head |
35 mm |
|
Discharge |
420 lpm |
|
Head Range |
26.25 - 38.5 Meter |
|
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Submersible Pumps |
Manufacturer Details |
Latteys Industries Ltd Plot No 16, Phase 1/2, GIDC Naroda, Ahmedabad 382330 Email : info@latteysindustries.com Phone : +91 7861813632 |
Packer Details |
Latteys Industries Ltd Plot No 16, Phase 1/2, GIDC Naroda, Ahmedabad 382330 Email : info@latteysindustries.com Phone : +91 7861813632 |
Country of Origin |
India |
