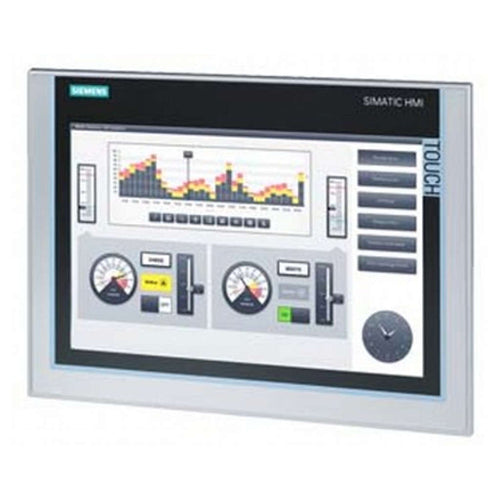

Siemens Simatic HMI TP1200 Comfort Panel 6AV21240MC010AX0
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
SIMATIC HMI TP1200 Comfort, Comfort Panel, touch operation, 12" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11
-
Warranty and support will be provided by vendor
-
Note: *Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
Siemens |
|
Product Type |
Comfort Panel |
|
Product Model |
6AV21240MC010AX0 |
|
General Information |
|
|
Product Type Designation |
TP1200 Comfort |
|
Display |
|
|
Design Of Display |
TFT |
|
Screen Diagonal |
12.1 in |
|
Display Width |
261.1 mm |
|
Display Height |
163.2 mm |
|
Number Of Colors |
16 777 216 |
|
Resolution (pixels) |
|
|
Horizontal Image Resolution |
1 280 pixel |
|
Vertical Image Resolution |
800 pixel |
|
Backlighting |
|
|
Mtbf Backlighting (at 25 °C) |
80 000 h |
|
Backlight Dimmable |
Yes; 0-100 % |
|
Function Keys |
|
|
Number Of Function Keys |
0 |
|
Number Of Function Keys With Leds |
0 |
|
Keys With Led |
No |
|
System Keys |
No |
|
Numeric Keyboard |
Yes; Onscreen keyboard |
|
Alphanumeric Keyboard |
Yes; Onscreen keyboard |
|
Touch Operation |
|
|
Design As Touch Screen |
Yes; Analog-resistive |
|
Expansions For Operator Control Of The Process |
|
|
Direct Keys (touch Buttons As S7 Input I/O) |
40 |
|
Installation Type/Mounting |
|
|
Mounting Position |
vertical |
|
Wall Mounting/Direct Mounting |
No |
|
Mounting In Portrait Format Possible |
Yes |
|
Mounting In Landscape Format Possible |
Yes |
|
Maximum Permissible Angle Of Inclination Without External |
35° |
|
Ventilation |
|
|
Supply Voltage |
|
|
Type Of Supply Voltage |
DC |
|
Rated Value (DC) |
24 V |
|
Permissible Range, Lower Limit (DC) |
19.2 V |
|
Permissible Range, Upper Limit (DC) |
28.8 V |
|
Input Current |
|
|
Current Consumption (Rated Value) |
0.85 A |
|
Starting Current Inrush I2t |
0.5 A2·s |
|
Power |
|
|
Active Power Input, Typical |
20 W |
|
Processor |
|
|
Processor Type |
X86 |
|
Memory |
|
|
Flash |
Yes |
|
RAM |
Yes |
|
Memory Available For User Data |
12 Mbyte |
|
Acoustics |
|
|
Buzzer |
No |
|
Speaker |
Yes |
|
Time Of Day |
|
|
Clock |
|
|
Hardware Clock (real-time) |
Yes |
|
Software Clock |
Yes |
|
Retentive |
Yes; Back-up duration typically 6 weeks |
|
Synchronizable |
Yes |
|
Interfaces |
|
|
Number Of Industrial Ethernet Interfaces |
1; 2 ports (switch) |
|
Number Of Rs 485 Interfaces |
1; RS 422 / 485 combined |
|
Number Of Rs 422 Interfaces |
0; together with RS 485 |
|
Number Of Rs 232 Interfaces |
0 |
|
Number Of Usb Interfaces |
2; USB 2.0 |
|
Usb Mini B |
1; 5-pole |
|
Number Of SD Card Slots |
2 |
|
With Software Interfaces |
No |
|
Industrial Ethernet |
|
|
Industrial Ethernet Status LED |
2 |
|
Number Of Ports Of The Integrated Switch |
2 |
|
Protocols |
|
|
Profinet |
Yes |
|
Supports Protocol For Profinet Io |
Yes |
|
IRT |
Yes; As of WinCC V12 |
|
Profibus |
Yes |
|
Ethernet/Ip |
Yes |
|
MPI |
Yes |
|
Protocols (Ethernet) |
|
|
TCP/IP |
Yes |
|
DHCP |
Yes |
|
SNMP |
Yes |
|
DCP |
Yes |
|
LLDP |
Yes |
|
Web Characteristics |
|
|
HTTP |
Yes |
|
HTTPS |
Yes |
|
HTML |
Yes |
|
XML |
Yes |
|
CSS |
Yes |
|
Active X |
Yes |
|
Javascript |
Yes |
|
Further Protocols |
|
|
Can |
No |
|
Modbus |
Yes |
|
Interrupts/Diagnostics/Status Information |
|
|
Diagnoses |
|
|
Diagnostic Information Readable |
Yes; S7 controller |
|
Emc |
|
|
Emission Of Radio Interference Acc. To En 55 011 |
|
|
Limit Class A, For Use In Industrial Areas |
Yes |
|
Limit Class B, For Use In Residential Areas |
No |
|
Degree And Class Of Protection |
|
|
Ip (At The Front) |
IP65 |
|
Ip (Rear) |
IP20 |
|
Nema (Front) |
|
|
Enclosure Type 4 At The Front |
Yes |
|
Enclosure Type 4x At The Front |
Yes |
|
Standards, Approvals, Certificates |
|
|
CE Mark |
Yes |
|
Culus |
Yes |
|
RCM (formerly C-Tick) |
Yes |
|
KC Approval |
Yes |
|
Use In Hazardous Areas |
|
|
Atex Zone 2 |
Yes |
|
Atex Zone 22 |
Yes |
|
Iecex Zone 2 |
Yes |
|
Iecex Zone 22 |
Yes |
|
Culus Class I Zone 1 |
No |
|
Culus Class I Zone 2, Division 2 |
Yes |
|
Fm Class I Division 2 |
Yes |
|
Relative Humidity |
|
|
Operation, Max |
90 %; no condensation |
|
WINCC Comfort (TIA Portal) |
Yes; from V11 |
|
WINCC Advanced (TIA Portal) |
Yes; from V11 |
|
WINCC Professional (TIA Portal) |
Yes; from V11 |
|
Languages |
|
|
Number Of Online/Runtime Languages |
32 |
|
Project Languages |
|
|
Languages Per Project |
32 |
|
Functionality Under Wincc (TIA Portal) |
|
|
Libraries |
Yes |
|
Applications/Options |
|
|
Web Browser |
Yes |
|
Pocket Word |
Yes |
|
Pocket Excel |
Yes |
|
Pdf Viewer |
Yes |
|
Media Player |
Yes |
|
Simatic Wincc Sm@Rtserver |
Yes |
|
Simatic Wincc Audit |
Yes |
|
Number Of Visual Basic Scripts |
Yes |
|
Task Planner |
|
|
Time-Controlled |
Yes |
|
Task-Controlled |
Yes |
|
Message System |
|
|
Number Of Alarm Classes |
32 |
|
Bit Messages |
Yes |
|
Number Of Bit Messages |
4 000 |
|
Analog Messages |
Yes |
|
Number Of Analog Messages |
200 |
|
S7 Alarm Number Procedure |
Yes |
|
System Messages Hmi |
Yes |
|
Number Of Characters Per Message |
80 |
|
Number Of Process Values Per Message |
8 |
|
Acknowledgment Groups |
Yes |
|
Message Indicator |
Yes |
|
Memory Location |
|
|
Memory Card |
Yes |
|
Usb Memory |
Yes |
|
Ethernet |
Yes |
|
Data Storage Format |
|
|
CSV |
Yes |
|
TXT |
Yes |
|
RDB |
Yes |
|
Security |
|
|
Number Of User Groups |
50 |
|
Number Of User Rights |
32 |
|
Number Of Users |
50 |
|
Password Export/Import |
Yes |
|
Simatic Logon |
Yes |
|
Logging Through Printer |
|
|
Alarms |
Yes |
|
Dimensions |
|
|
Width Of The Housing Front |
330 mm |
|
Height Of Housing Front |
241 mm |
|
Mounting Cutout, Width |
310 mm |
|
Mounting Cutout, Height |
221 mm |
|
Overall Depth |
64 mm |
|
Weights |
|
|
Weight (Without Packaging) |
2.8 kg |
|
Weight (With Packaging) |
3.5 kg |
