SKU # 1000080021

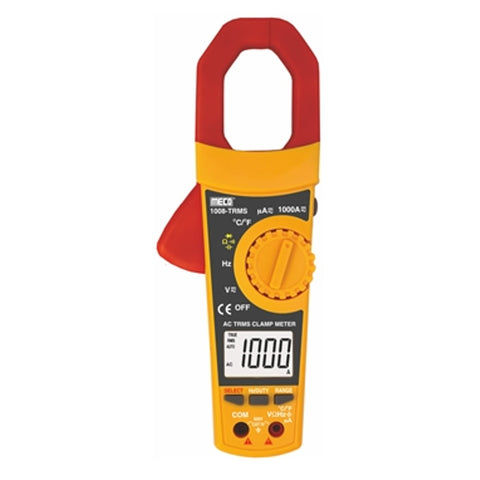

Meco Digital Clamp Meter 3-5/6 Digit 6000 Count 1000A AC 1008-TRMS
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
3 5/6 Digits
-
6000 Counts
-
TRMS
-
Auto / Manual Ranging
-
DC Voltage upto 1000V
-
AC Voltage upto 750V
-
DC Current upto 6000μA
-
AC Current upto 1000A
-
Resistance upto 60MΩ
-
Capacitance upto 9.999mF
-
Frequency upto 10MHz
-
Duty Cycle 0.1% ~ 99.9%
-
Temperature
-
Diode Test
-
Audible Continuity
-
Data Hold
-
Backlight Display
-
Auto Power Off
-
Low Battery Indication
-
Jaw Opening : Cable Dia. 30mm (max.)
Product Specification
|
Brand |
Meco |
|
Product Type |
Digital Clampmeter |
|
Product Model |
1008-TRMS |
|
Sensing |
True RMS |
|
Display |
3 5⁄6 Digits LCD Display Digits LCD Display |
|
Display Counts |
6000 |
|
Jaw Opening Size |
30 mm |
|
Dc Current Range |
0-6000 μA |
|
Dc Current Accuracy |
±(0.8 % + 10 Digits) |
|
Dc Voltage Range |
600 mV-1000 V |
|
Dc Voltage Accuracy |
±(0.5 % + 3 Digits) |
|
Ac Current Range |
0-1000 A |
|
Ac Current Accuracy |
±(2.0 % + 30 Digits) |
|
Ac Voltage Range |
600 mV-750 V |
|
Ac Voltage Accuracy |
±(0.8 % + 10 Digits) |
|
Resistance Accuracy |
±(1.0 % + 25 Digits) |
|
Capacitance Range |
9.99 nF-9.99 mF |
|
Capacitance Accuracy |
±(3.5 % + 60 Digits) |
|
Frequency |
99.99 Hz-20 MHz |
|
Frequency Accuracy |
±(0.01 % + 3 Digits) |
|
Temperature Range |
-20° to 1000°C |
|
Temperature Accuracy |
±(1.5 % + 15 Digits) |
|
Power |
2 AA Batteries 1.5 V |
|
Max. Dc Voltage Range |
601-1000 V |
|
Max. Ac Current Range |
601-1000 A |
|
Max. Ac Voltage Range |
601-750 V |
|
Resistance Range (ohm) |
0-60 MΩ |
|
Includes |
Pair of Test Leads , Battery , K Type Thermocouple , Instruction Manual and Carrying Case |
|
Dimensions |
238x90x4W, Frequency / Period, 8 mm |
|
Weight |
351 g |
|
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Digital Clamp Meter |
Manufacturer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Packer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Country of Origin |
India |
