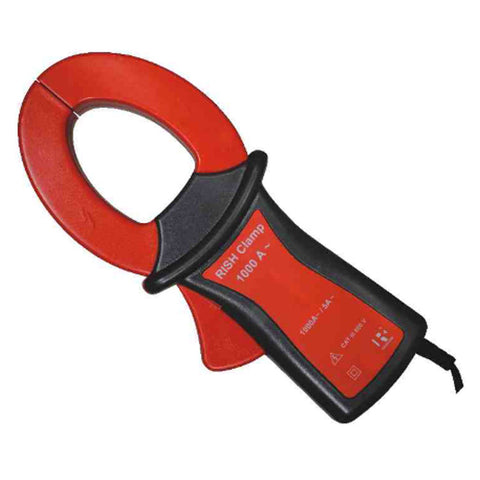

Rishabh Rish Clamp On Current Transformer 1000A/5A AC

Rishabh Rish Clamp On Current Transformer 1000A/5A AC


₹ 2,830.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Rish Clamp-on CT 300 A / 1000A measures current without interrupting the conducting line

  • They are used for electrically isolated measurement of alternating current within a broad range, without interrupting the current conducting cable and bus bars

  • Minimum transformation ratio error

  • Compact, handy design

  • Permanently connected safety cables

  • Measurement

  • Rish Clamp on CT measures AC current without interrupting the conducting line

  • The opening contact of both the core which becomes visible when trigger is pressed must be always kept clean

  • Even small outside particles can deviate measuring accuracy

  • The measuring secondary long cables with contact- protected connection plugs, which electrically isolates the measurement of AC current without interruption

Product Specification

Brand

Rishabh

Product Type

Clamp On Current Transformer

Product Model

RISH Clip on CT

Nominal Primary Current

1-1000 A AC

Output Signal

5mA AC / A AC

Used With

Rish multi Series

Transmission Ratio Input:Output

1000:1

Accuracy / Maximum Error

Class 1 ( 1.25 VA) (For Current Range From 1A to 1000A, 50Hz)

Maximum Operating Voltage

CAT III 600 V As Per IEC-61010

Frequency Range

40Hz...1kHz

Jaw Opening / Conductor Diameter

43mm / Diameter 43mm

Application

The Current Transformers Are Used For Electrically Isolated Measurement
Of Alternating Current Within Broad Range

It Is Possible To Measure AC current without interrupting the current conducting cable and bus bars via hard wired leads with contact protected plugs

Cable Length

1.5 meter

Dimensions(W X H X D)

(92 X 39 X 202)mm

Weight

Approx 650 gms

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Clamp-On CT

Manufacturer Details

Rishabh Enterprises, 16/4, Rani Jhansi Road, Behind Guru Nanak Bearing Marketing, Motia Khan, Pahar Ganj, New Delhi , Central Delhi, Delhi-110055, India

Packer Details

Rishabh Enterprises, 16/4, Rani Jhansi Road, Behind Guru Nanak Bearing Marketing, Motia Khan, Pahar Ganj, New Delhi , Central Delhi, Delhi-110055, India

Country of Origin

India
