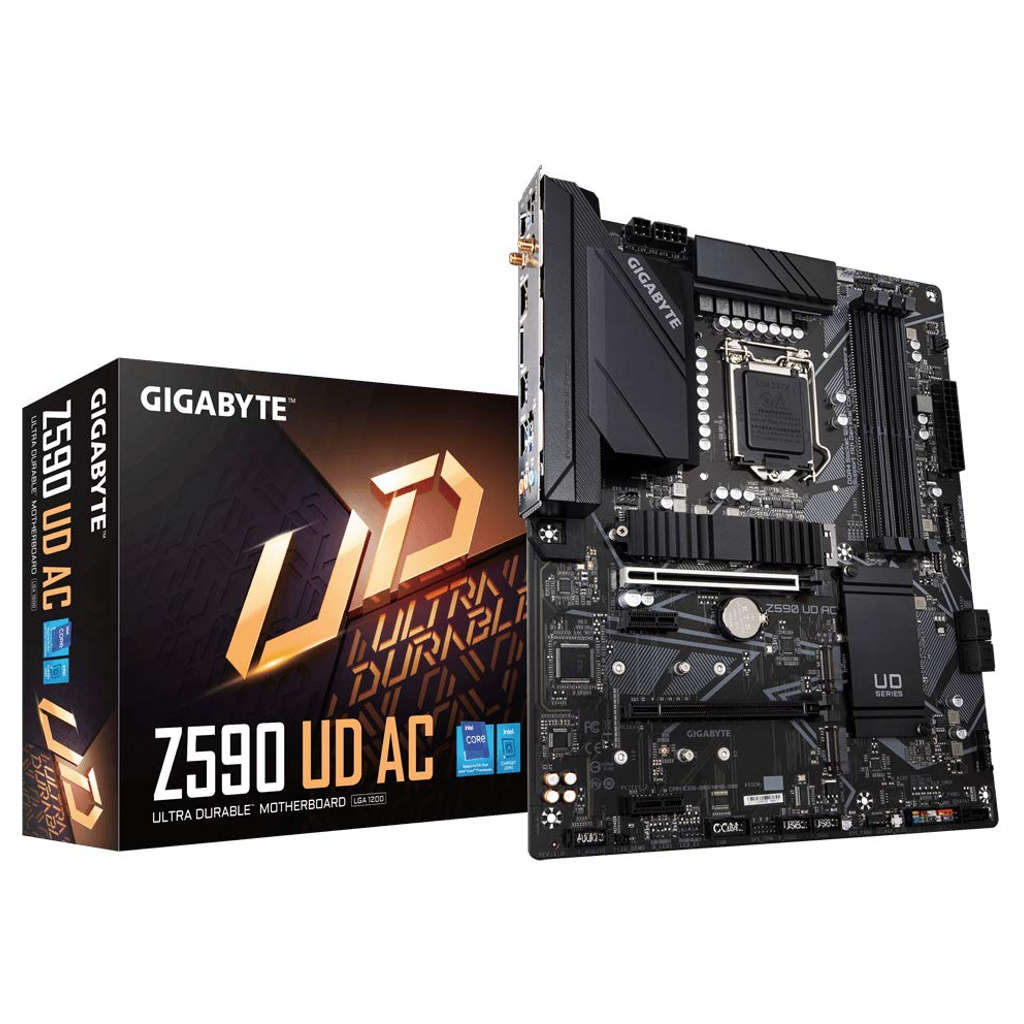

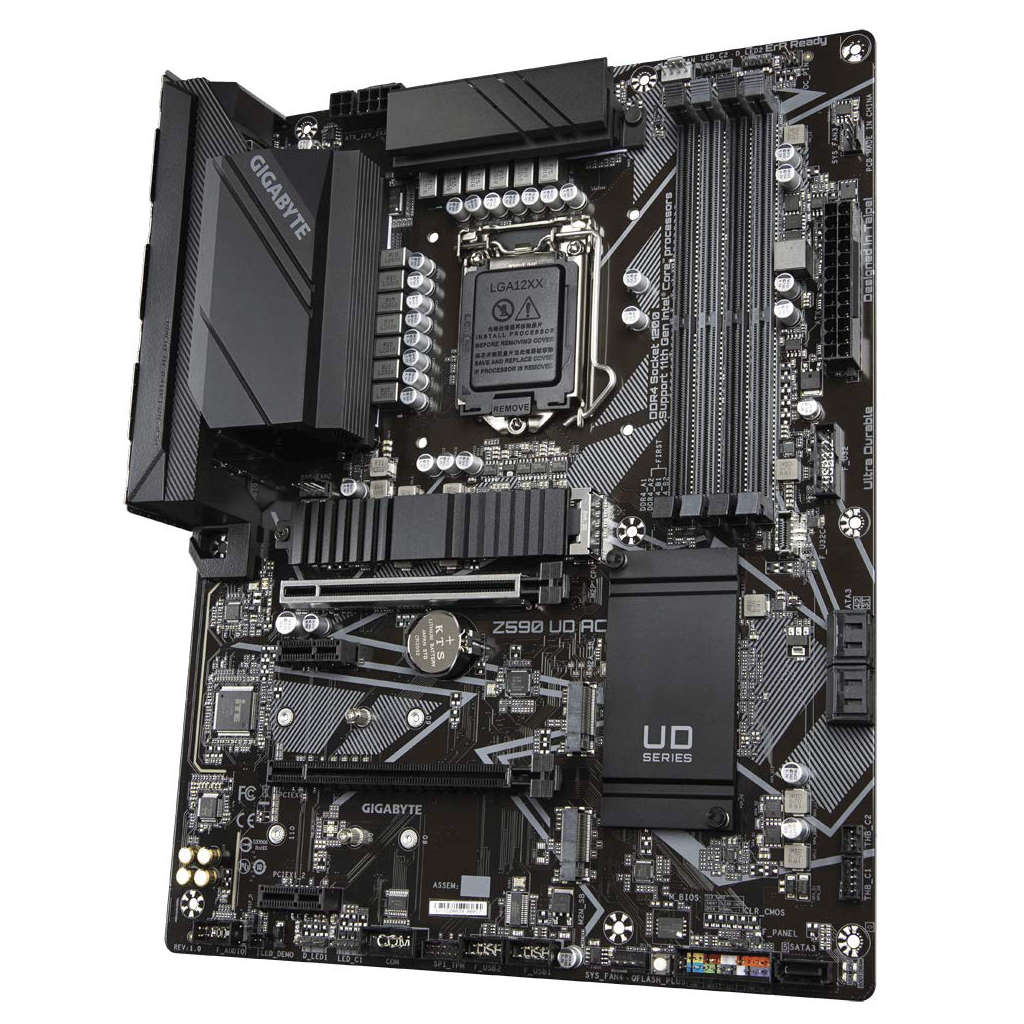

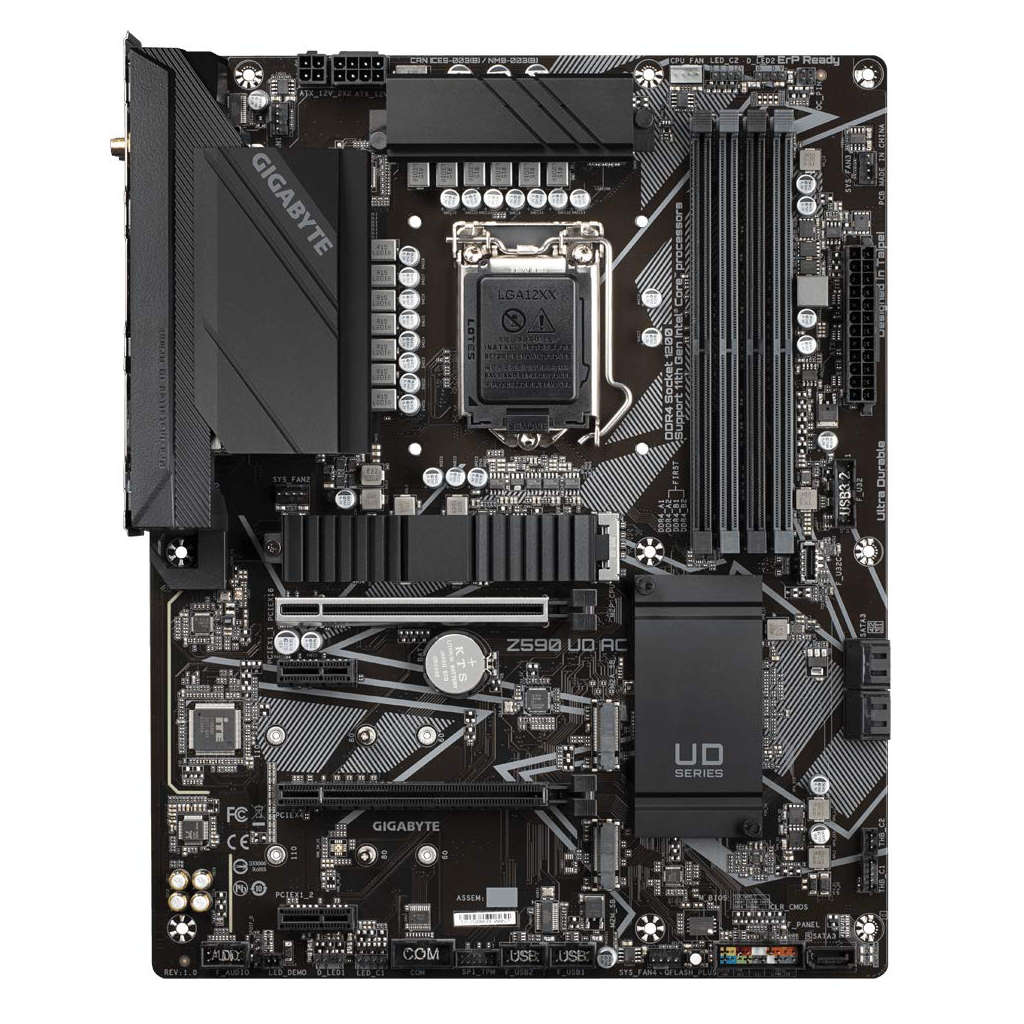

Gigabyte Ultra Durable Motherboard Z590 UD AC

Gigabyte Ultra Durable Motherboard Z590 UD AC

₹ 22,500.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading

  • Digital PWM Controller to deliver appropriate voltage to the CPU

  • Direct 12+1 Phases DrMOS without PWM Doublers, each power phase connects directly to the CPU, With capability to handle 600 Amps current in total

  • All-solid capacitors to improve Transient response and minimize oscillation

  • 8+4 Solid Pin CPU Power Connectors

  • is offering a tested and proven platform that ensures proper compatibility with profiles up to 4800MHz and beyond

  • All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard

  • First Adopter on 2.5GbE LAN Onboard

  • 2X Faster than ever

  • Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience

  • Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet

  • RGB Fusion 2.0

  • With Z590 UD AC Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs

  • RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC

  • Already feature filled with colors and patterns, RGB Fusion 2.0 on Z590 Series Motherboards are now upgraded with Addressable LED support

  • With external Addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations

Product Specification

Brand

Gigabyte

Product Type

Motherboard

Product Model

Z590 UD AC

CPU

11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors

10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family

L3 cache varies with CPU

Chipset

Intel Z590 Express Chipset

Memory

11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) /4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

10th Generation Intel Core i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Support for DisplayPort 1.2 version and HDCP 2.3

Audio

Realtek audio CODEC High Definition Audio

2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first

Please visit GIGABYTE's website for details on configuring the audio softwareSupport for S/PDIF Out

LAN

Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

Multi-Graphics Technology

Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Storage Interface

CPU :1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU) (Note)

Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)

5 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors

USB

Chipset:2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

4 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x Q-Flash Plus button

5 x SATA 6Gb/s connectors

3 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.2 Gen 1 header

1 x USB Type-C header, with USB 3.2 Gen 1 support

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

2 x Thunderbolt add-in card connectors

1 x serial port header

1 x Clear CMOS jumper

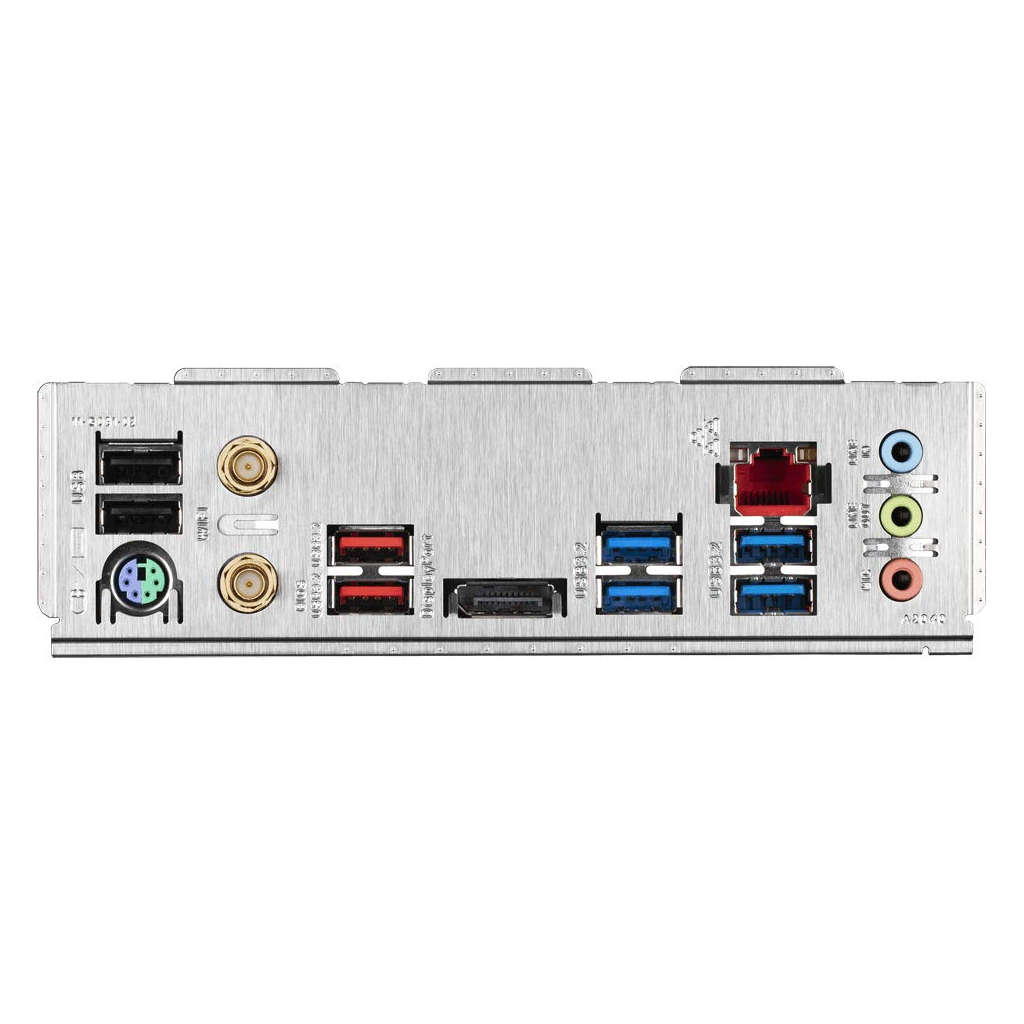

Back Panel Connectors

1 x PS/2 keyboard/mouse port

2 x SMA antenna connectors (1T1R)

1 x DisplayPort

2 x USB 3.2 Gen 2 Type-A ports (red)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Bundled Software

Norton Internet Security (OEM version)

Realtek 8125 Gaming LAN Bandwidth Control Utility

Operating System

Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H

24.4 x 4 x 30.5

Unit of Measurement

1 Piece

Weight

1 kg

Generic Type

Motherboards

Manufacturer Details

A-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan

Packer Details

Gigabyte Technology India Private Limited B-411, 4th Floor, Bsel Tech Park Plot No. 39/5 & 39/5A, Opposite Vashi Railway Station, Vashi Navi Mumbai 400705

Importer Details

Gigabyte Technology India Private Limited B-411, 4th Floor, Bsel Tech Park Plot No. 39/5 & 39/5A, Opposite Vashi Railway Station, Vashi Navi Mumbai 400705

Country of Origin

Taiwan
