SKU # 1000078521

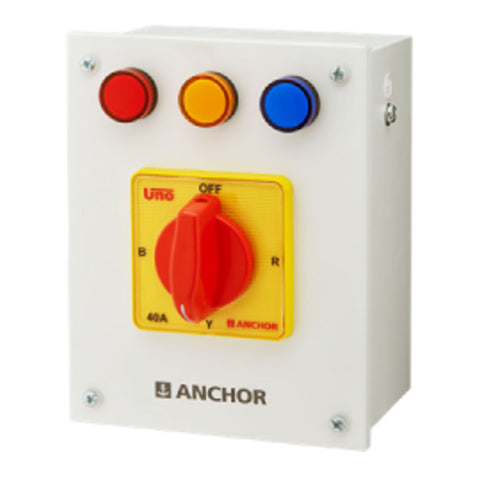

Anchor UNO 1 Rotary Switch Enclosure
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
It consists of three (single phase) change over switches, each connected to one of the three phases
-
The single phase loads are distributed over the three outgoing phase connections
-
It helps to fight the common problem of Phase Cut in a three phase connection having single phase loads through enclosure
-
Features
-
Silver alloy contacts ensures high durability & endurance
-
Double break contact mechanism
-
Ability of positive making & breaking of contact
-
Superior Aesthetic and Technologically updated
-
Attractive combination of colors for knob, Handle & Escutcheon plates
-
User friendly & mounting arrangements can be suitably custom made
-
IP 20 degree of protection
-
Copper busbar for internal wiring for ease of assembly
Product Specification
|
Brand |
Anchor |
|
|
Product Type |
Rotary Switch Enclosure |
|
|
Series |
UNO |
|
|
Product Code | Rated Current |
98655 | 40 A 98656 | 63 A |
|
|
Standard Conformity |
IS/IEC 60947-3 |
|
|
Current Rating |
40A |
63A |
|
Operational Voltage |
440V |
440V |
|
Operational Current A.C. |
40A |
63A |
|
Utilisation Category |
AC-23 |
AC-23 |
|
Dielectric Strength |
2.5 kV |
2.5 kV |
|
Insulation Resistance |
≥500 MΩ |
≥500 MΩ |
|
Standerd Mounting 4 Hole (mm) |
M5-68.0 ctc |
M5-68.0 ctc |
|
Escutcheon Plate |
90 X 90 mm |
90 X 90 mm |
|
Warranty |
As Per Manufacturer Terms & Conditions |
|
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Rotary Switch |
Manufacturer Details |
Panasonic Life Solutions India Pvt. Ltd. 3rd Floor, B Wing, i Think Techno Campus, Pokhran Road No-2, Thane (West), Thane - 400 607, Maharashtra, India. Phone : 022-42228888 |
Packer Details |
Panasonic Life Solutions India Pvt. Ltd. 3rd Floor, B Wing, i Think Techno Campus, Pokhran Road No-2, Thane (West), Thane - 400 607, Maharashtra, India. Phone : 022-42228888 |
Country of Origin |
Japan |
