Out of Stock!

SKU # 1000122216

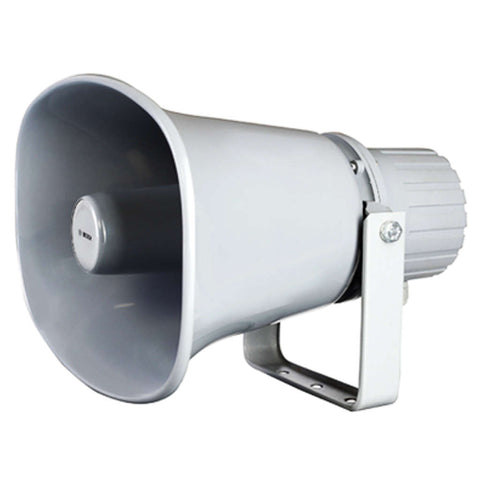

Bosch ABS Elliptical Horn Speaker 15W LH1-EC15-IN

Bosch ABS Elliptical Horn Speaker 15W LH1-EC15-IN


₹ 3,530.00

Quantity

Pack Qty : 1



Delivery Availability
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The LH1-EC15-IN is a high-efficiency horn loudspeaker providing excellent speech reproduction and sound distribution for a wide scope of outdoor applications

  • It is ideal for sports grounds,places of worship,parks,exhibitions,factories and open meeting areas

  • The LH1-EC15-IN is a circular horn loudspeaker and its horn and back-cover are made of ABS material

  • The speaker has a line matching transformer to connect to a 100V output from an amplifier

  • The loudspeaker has power tappings at full power,half power and quarter power to connect at different power levels

  • Features

  • Excellent speech reproduction

  • Water-and dust protected to IP 65

  • Easy to install

  • Simple power tapping through color code

  • Functions

  • The LH1-EC15-IN model horn speaker is for direct connection to a 100V line output and is finished in light grey (RAL 7035) color

  • The horn speaker is water and dust protected

  • The horn loudspeaker includes a 100V transformer with taps on the primary winding to allow different power tappings

  • Nominal full-power,half-power or quarter-power radiation (in 3 dB steps) can easily be selected by connecting the amplifier output to the appropriate tapping

  • A two meter four-core cable is fitted to the horn for connectivity

  • Each core is a different color,and is connected to one of the primary tappings on the transformer

  • Color code identification is provided on the product label

  • The horn loudspeaker is supplied complete with sturdy adjustable mounting brackets,allowing the sound beam to be accurately directed

Product Specification

Brand

Bosch

Product Type

Horn Speaker

Product Model

LH1-EC15-IN

Maximum Power

22.5W

Rated Power

15W

Sound Pressure Level At 1 W (1 kHz, 1 m)

103 dB

Effective Frequency Range ( -10 db )

500 Hz to 3500 Hz

Opening Angle At 1 kHz (-6 dB)

Elliptical : 110 (H) / 50 (V)

Rated Voltage

100 V

Rated Impedance

667 Ohm

Operating Temperature

-5 °C to +55 °C

Storage Temperature

-40 °C to +70 °C

Material

ABS

Colour

Light Gray

Warranty

As Per Manufacturer Terms And Conditions

Other Details

Dimension (CM) LxWxH

28.5 x 28 x 28.5

Unit Of Measurement

1 Piece

Weight

1.8 kg

Generic Name

Horn Speakers

Manufacturer Details

Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665

Packer Details

Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665

Country Of Origin

India
