SKU # 1000033961

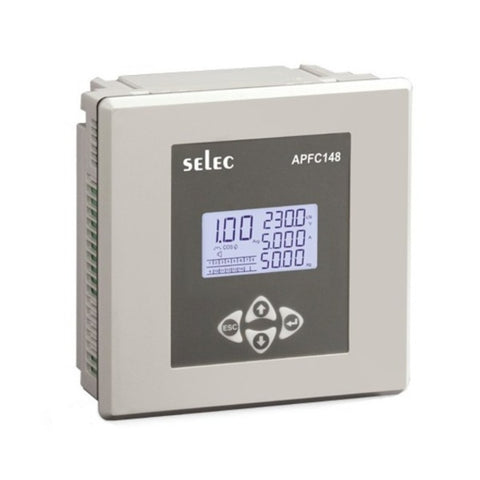

Selec Automatic Power Factor Controller With 3 CT Sensing APFC148

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Auto Detection Of Capacitor Bank values With Built VAF Meter
-
Dual Colour Backlight For Alarm Indication
-
Configurable Alarm Setting
-
RS485 communication MODUBUS RTU Protocol
-
Alarm Setting
-
Over / under Voltage,Over / Under Compensation,CT Polarity Error,Over Temperature,Fan Setting, No Voltage
-
Accuracy
-
Power Factor:±0.01, Voltage (L-N/L-L), Current: ±0.5% Of Full Scale,Frequency – For L-N>20V, For L-L>35V: ±0.1% Of Full Scale,Power (kW,kVA,kVAr), Energy (kWh,kVAh,kVArh): Class 1, Temperature : ±3° of full scale
-
Steps
-
1 To 12/14* (FAN & ALARM Output Can Be Used As 13th & 14th Step)
Product Specification
Brand |
Selec |
Product Code |
APFC148-308 |
Product Type |
Automatic Power Factor Controller |
Size |
144(W) x 144(H) x 50(D) mm |
Display |
LCD With Dual Colour Backlight |
Digits |
3 Rows, 4 Digits to Show Electrical Parameters |
Electrical Connection |
3Ø-4 Wire, 3Ø-3 Wire, 2Ø-2 Wire, 1Ø-2 Wire |
Rated Input Voltage |
11 To 300V AC(L-n), 50 To 520V AC(L-L) |
Rated Input Current |
Normal 5A AC(Min - 11mA; Max - 6A) |
Power Consumption |
15VA Max |
Frequency |
45 To 65Hz |
Measuring Range |
Power Factor: 0.8 Lag To 0.8 Lead |
Phase Compensation |
0°,90°,120°,210°,240°,330° |
CT Primary |
5A To 9999A (programmable For Any Value) |
CT Secondary |
5A Fixed |
PT Primary |
100V To 500kV (Programmable For Any Value) |
PT Secondary |
100 To 500V (Programmable For Any Value) |
Relay Contact |
5A @ 250V AC |
Switching programe |
Automatic |
Step Time |
5 To 999s |
Discharge Time |
5 To 999s |
Control Mode |
Automatic / Manual |
Control Sensivity |
60% |
Supply Voltage |
90 To 550V AC,50/60Hz |
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Power Factor Meter |
Manufacturer Details |
Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com |
Packer Details |
Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com |
Country of Origin |
India |
