SKU # 1000022948

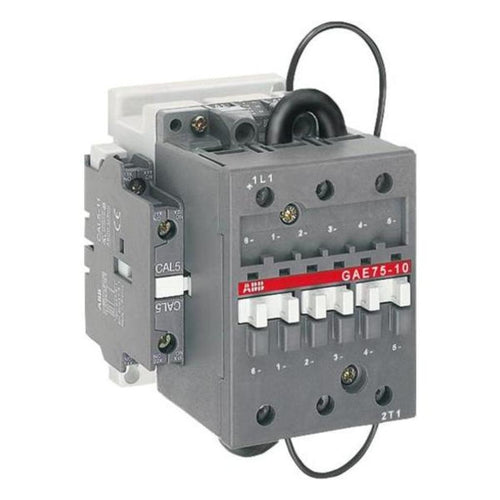

ABB DC Type Contactor GAE75-10-00

ABB DC Type Contactor GAE75-10-00


₹ 15,673.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • GAE75 contactors are designed for DC circuit switching. Arc suppression is more difficult in DC than in AC

  • To choose a contactor, it is necessary to know the current and voltage to be broken as well as the L/R time constant of the power circuit to be controlled

  • GAE75 contactors are of the block type design

  • Main poles: the contactors are fitted with arc chutes with permanent magnets specially designed for DC breaking

  • Number of Main Contacts NO : 3

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 1

  • Number of Auxiliary Contacts NC : 1

  • Rated Operational Voltage : Main Circuit 600 V

  • Rated Frequency (f) : Supply Circuit 50 Hz , Supply Circuit 60 Hz

  • Rated Impulse Withstand Voltage (Uimp) : 8 kV

  • Mechanical Durability : 10 million

  • Maximum Mechanical Switching Frequency : 3600 cycles per hour

  • Terminal Type : Screw Terminals

  • Product Net Width : 94 mm

  • Product Net Depth / Length : 108 mm

  • Product Net Height : 132 mm

  • Product Net Weight : 1.3 kg

Product Specification

Rated Control Circuit Voltage (Uc)

Type

Product Id

12V

GAE75-10-00 Coil

1SBL419025R8011

24V

GAE75-10-00 Coil

1SBL419025R8211

42V

GAE75-10-00 Coil

1SBL419025R8111

110V

GAE75-10-00 Coil

1SBL419025R8611
