SKU # 1000017067

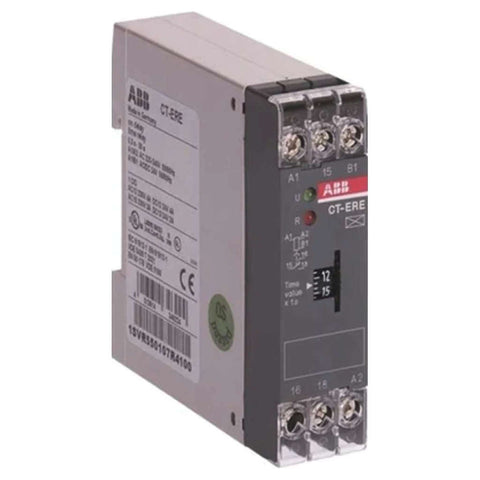

ABB Electronic ON Delay Timer 1 c/o 2 LED CT-ERE

ABB Electronic ON Delay Timer 1 c/o 2 LED CT-ERE


₹ 1,193.00

Quantity

Min Qty : 1



Delivery Availability

 Estimated Dispatch Within a Day

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The CT-ERE is a single-function electronic time relay from the CT-E timer range

  • It provides an ON-delay (delay on make) function with a time range from 0.1 s to 10 s This time relay operates with a rated control supply voltage of 24 V AC / DC / 220 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A

  • Timer Relay Type : ON-Delay

  • Rated Control Supply Voltage (Us) : 220 ... 240 V AC ,24 V AC/DC,110-130 V AC

  • Output : 1 c/o (SPDT) contact

  • Terminal Type : Screw Terminals

  • Rated Operational Current AC-12 (Ie) : (230 V) 4 A

  • Rated Operational Current AC-15 (Ie) : (230 V) 3 A

  • Rated Operational Current DC-12 (Ie) : (24 V) 4 A

  • Rated Operational Current DC-13 (Ie) : (24 V) 2 A

  • Mounting Position : Any

  • Mounting on DIN Rail : TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715,TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

  • Standards : EN 50581,IEC/EN 61812-1,UL 508,CAN/CSA C22.2 No.14

  • Product Net Width : 22.5 mm

  • Product Net Height : 78 mm

  • Product Net Depth / Length : 78.5 mm

  • Product Net Weight : 0.067 kg

Product Specification

Time Range

Product Id

Description

0.1-10 s

1SVR550107R1100

CT-ERE 0.1-10 s "24 V AC/DC,220-240 V AC"

0.3-30 s

1SVR550107R4100

CT-ERE 0.3-30 s "24 V AC/DC,220-240 V AC"

3-300 s

1SVR550107R2100

CT-ERE 3-300 s "24 V AC/DC,220-240 V AC"

0.3-30 min

1SVR550107R5100

CT-ERE 0.3-30 min "24 V AC/DC,220-240 V AC"

0.1-10 s

1SVR550100R1100

CT-ERE 0.1-10 s 110-130 V AC

0.3-30 s

1SVR550100R4100

CT-ERE 0.3-30 s 110-130 V AC

3-300 s

1SVR550100R2100

CT-ERE 3-300 s 110-130 V AC

0.3-30 min

1SVR550100R5100

CT-ERE 0.3-30 min 110-130 V AC
