LAST SOLD AT ₹ 35,772.00
SKU # 1000087630

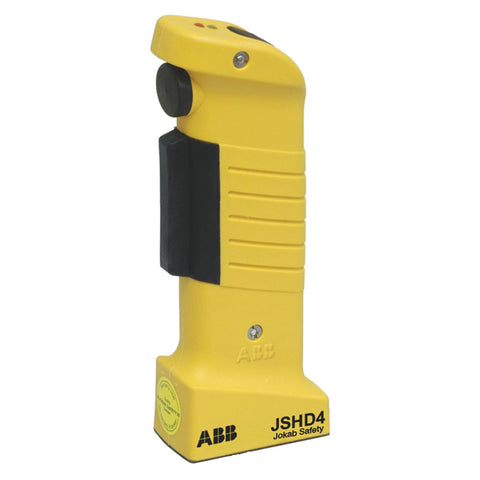

ABB JSHD4-1-AA Enabling Switch 2TLA019995R0000

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Three-position handheld device
-
Top part with no LED, no extra button
-
Bottom part with cable gland and 5 screw connections
Product Specification
|
Brand |
ABB |
|
Product Type |
Enabling Switch |
|
Product Code |
2TLA019995R0000 |
|
Model |
JSHD4-1-AA |
|
Function |
Three-position device used to allow a limited movement of the machine when the operator is in the dangerous area |
|
Sub-Function |
No auxiliary button |
|
Status Indicator |
No |
|
Safety Information |
|
|
Performance Level (PL) |
Up to e |
|
B10d Value |
2
million operations to middle position |
|
Technical |
|
|
Communication Interface |
Contacts |
|
Connection Configuration |
Cable gland and 5 screw connection |
|
Number Of Contacts CO |
1 |
|
Number Of Contacts NC |
0 |
|
Number Of Contacts NO |
1 |
|
Maximum Switching Current |
Main Circuit 0.02 mA |
|
Maximum Switching Voltage |
Main Circuit 30 V |
|
Minimum Switching Capacity |
Main Circuit 8 mA, 10 VDC |
|
Rated Operational Current DC-12 (Ie) |
(24 V) 0.02 A |
|
Rated Operational Voltage |
24 V DC |
|
Technical Information |
Operating force: Approx. 15 N for three-position button (ON), Approx. 45 N for three-position button (OFF), Approx. 2.5 N for top/front pushbutton; Mechanical service life: 1 million cycles, top to middle position, 100 000 cycles, middle to bottom position, and top/front push button |
|
Environmental |
|
|
Degree Of Protection |
IP65 |
|
Ambient Air Temperature |
Operation -10 ... +70 °C |
|
Material |
Handle: Polyamide and Noryl; Rubber: Neoprene |
|
Technical UL/CSA |
|
|
Enclosure Type UL/CSA |
1 |
|
Dimensions |
|
|
Product Net Width |
34 mm |
|
Product Net Depth / Length |
60 mm |
|
Product Net Height |
254 mm |
|
Product Net Weight |
0.3 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Enabling Switches |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
