LAST SOLD AT ₹ 40,188.00

SKU # 1000087631

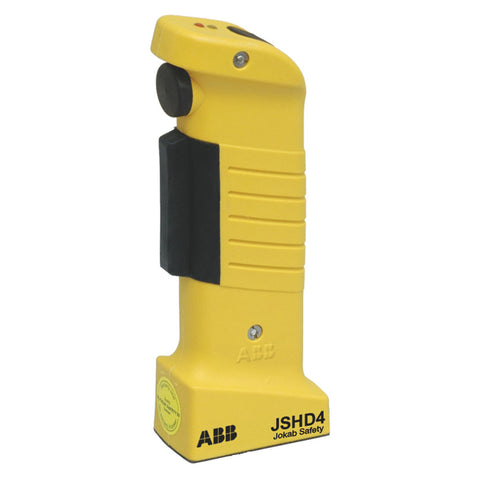

ABB JSHD4-1-AC Enabling Switch 2TLA019995R0100

ABB JSHD4-1-AC Enabling Switch 2TLA019995R0100

Visit the ABB Store

₹ 40,188.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Three-position device

  • Top part with no LED, no extra button

  • Bottom part with M12-5 connector

Product Specification

Brand

ABB

Product Type

Enabling Switch

Product Code

2TLA019995R0100

Model

JSHD4-1-AC

Function

Three-position device used to allow a limited movement of the machine when the operator is in the dangerous area

Sub-Function

No auxiliary button

Status Indicator

No

Safety Information

Performance Level (PL)

Up to e

B10d Value

2 million operations to middle position
968 000 operations to bottom position

Technical

Communication Interface

Contacts

Connection Configuration

M12-5 male

Number Of Contacts CO

1

Number Of Contacts NC

0

Number Of Contacts NO

1

Maximum Switching Current

Main Circuit 0.02 mA

Maximum Switching Voltage

Main Circuit 30 V

Minimum Switching Capacity

Main Circuit 8 mA, 10 VDC

Rated Operational Current DC-12 (Ie)

(24 V) 0.02 A

Rated Operational Voltage

24 V DC

Technical Information

Operating force: Approx. 15 N for three-position button (ON), Approx. 45 N for three-position button (OFF), Approx. 2.5 N for top/front pushbutton; Mechanical service life: 1 million cycles, top to middle position, 100 000 cycles, middle to bottom position, and top/front push button

Environmental

Degree Of Protection

IP65

Ambient Air Temperature

Operation -10 ... +70 °C

Material

Handle: Polyamide and Noryl; Rubber: Neoprene

Technical UL/CSA

Enclosure Type UL/CSA

1

Dimensions

Product Net Width

34 mm

Product Net Depth / Length

60 mm

Product Net Height

200 mm

Product Net Weight

0.317 kg

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Enabling Switches

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
