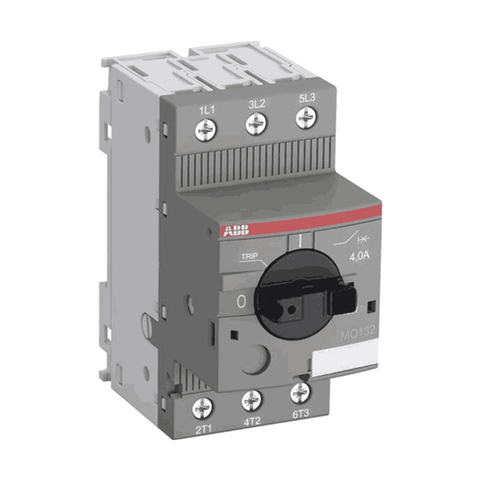

ABB Manual Motor Starter Three-Pole MO 132


ABB
Available



₹ 1,661.00

Check Pincode Availability

Product Description

  • 3 Pole Power Manual Motor Starter with Rotary Knob Control magnetic only type : protection against short circuit

  • The MO132-0.16 manual motor starter magnetic only is a compact 45 mm width device with a rated operational current of Ie = 0.16 to 32 A

  • This device is used to manually switch on and off loads/motors and to protect them reliably and without the need for a fuse from short-circuits.

  • The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 V AC.

  • A combination together with overload relays or motor controllers allows the protection of motors. Further features are the built-in disconnect function, trip-free mechanism and a rotary handle with a clear switch position indication.

  • The manual motor starter magnetic only is suitable for three- and single-phase applications.

  • The handle is lockable to protect against unauthorized changes.

  • Number of Poles : 3

  • Product Net Weight : 0.215 kg

  • Product Net Width : 45 mm

  • Product Net Height :90 mm

  • Product Net Depth / Length : 86.75 mm

  • Rated Operational Voltage : Main Circuit 690 V AC

  • Rated Frequency (f) : Main Circuit 50 Hz/Main Circuit 60 Hz

  • Pollution Degree : 3

  • Degree of Protection : Housing IP20,Main Circuit Terminals IP10

  • Mounting Position : Position 1 to 6

  • Contact Position Indication : ON / OFF / TRIP

  • Actuator Type : Rotary Handle

  • Electrical Durability : 50000 cycle

  • Mechanical Durability : 100000 cycle

  • Terminal Type : Screw Terminals

Product Specification

Breaking Capacity (kA)

Type

Product ID

100

MO132-0.16

1SAM360000R1001

100

MO132-0.25

1SAM360000R1002

100

MO132-0.4

1SAM360000R1003

100

MO132-0.63

1SAM360000R1004

100

MO132-1.0

1SAM360000R1005

100

MO132-1.6

1SAM360000R1006

100

MO132-2.5

1SAM360000R1007

100

MO132-4.0

1SAM360000R1008

100

MO132-6.3

1SAM360000R1009

100

MO132-10

1SAM360000R1010

100

MO132-12

1SAM360000R1012

100

MO132-16

1SAM360000R1011

100

MO132-20

1SAM360000R1013

50

MO132-25

1SAM360000R1014

50

MO132-32

1SAM360000R1015
