LAST SOLD AT ₹ 3,970.00
SKU # 1000013380

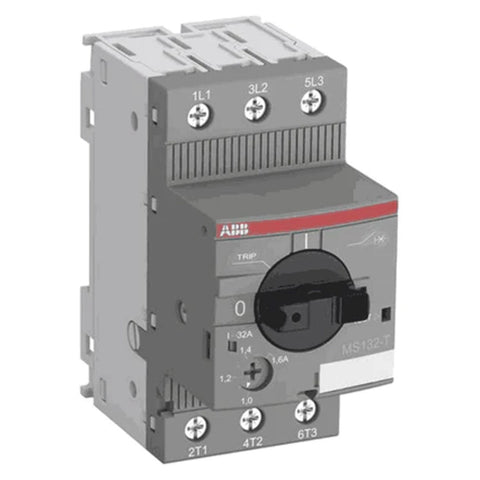

ABB Manual Motor Starter Three-Pole MS132-T
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
MS132-T Circuit breakers for transformer protection are electro mechanical protection devices specially designed to protect control transformers on the primary side.
-
The short-circuit current setting is fixed to 20 times the operating current to handle the high inrush current generated by transformers
-
This device has a rated operational current of Ie = 0.16 to 25 A
-
It allows fuse-less protection against overload and short-circuit.
-
The device allows manually connect and disconnect the transformer from the mains thanks of its built-in disconnection function.
-
The circuit breaker for transformer protection offers a rated service short-circuit breaking capacity of Ics = 100 kA at 400 VAC and a trip class 10.
-
Further features are temperature compensation, trip-free mechanism, rotary handle with a clear switch position indication and short circuit trip indicator.
-
The handle is lockable to protect against unauthorized changes.
-
Number of Poles : 3
-
Product Net Weight : 0.215 kg
-
Product Net Width : 45 mm
-
Product Net Height :90 mm
-
Product Net Depth / Length : 86.75 mm
-
Rated Operational Voltage : Main Circuit 690 V AC
-
Rated Frequency (f) : Main Circuit 50 Hz/Main Circuit 60 Hz
-
Pollution Degree : 3
-
Degree of Protection : Housing IP20,Main Circuit Terminals IP10
-
Mounting Position : Position 1 to 6
-
Contact Position Indication : ON / OFF / TRIP
-
Actuator Type : Rotary Handle
-
Electrical Durability : 50000 cycle
-
Mechanical Durability : 100000 cycle
-
Terminal Type : Screw Terminals
Product Specification
|
Breaking Capacity (kA) |
Type |
Product ID |
|
100 |
MS132-0.16T |
1SAM340000R1001 |
|
100 |
MS132-0.25T |
1SAM340000R1002 |
|
100 |
MS132-0.4T |
1SAM340000R1003 |
|
100 |
MS132-0.63T |
1SAM340000R1004 |
|
100 |
MS132-1.0T |
1SAM340000R1005 |
|
100 |
MS132-1.6T |
1SAM340000R1006 |
|
100 |
MS132-2.5T |
1SAM340000R1007 |
|
100 |
MS132-4.0T |
1SAM340000R1008 |
|
100 |
MS132-6.3T |
1SAM340000R1009 |
|
100 |
MS132-10T |
1SAM340000R1010 |
|
100 |
MS132-12T |
1SAM340000R1012 |
|
100 |
MS132-16T |
1SAM340000R1011 |
|
100 |
MS132-20T |
1SAM340000R1013 |
|
50 |
MS132-25T |
1SAM340000R1014 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Manual Motor Starter |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
