Available

SKU # 1000022887

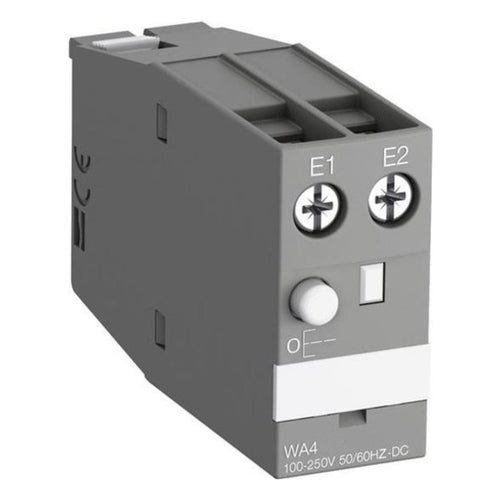

ABB Mechanical Latching Unit for Contactors WA4

ABB Mechanical Latching Unit for Contactors WA4


₹ 1,535.00

Quantity

Min Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • WA4 mechanical latching units for AF09(Z) ... AF38(Z) contactors and NF(Z) contactor relays ensures that the contactor or contactor relay remains switched on even if there is a lack or a failure of voltage, in application such as energy conservation

  • Standard contactors can be easily converted into compact latched contactors

  • The WA4 block contains a mechanical latching device with 24 V DC electromagnetic impulse unlatching or manual unlatching

  • Extend your 24 V DC control solutions with a direct PLC control by 24V DC 500 mA without additional interface relay

  • Extend your auxiliary control circuit by adding additional 1-pole front mounted CA4 and 2-pole side mounted CAL4 auxiliary contact blocks. Design easily your installation with 25% less depth required in panel mounting

  • Product Main Type : Accessories for Block Contactors

  • Product Name : Mechanical Latching Unit

  • Rated Control Circuit Voltage (Uc) : DC Operation 24 V

  • Tightening Torque : Control Circuit 1.2 N·m

  • Wire Stripping Length : Control Circuit 10 mm

  • Product Net Weight : 65 kg

Product Specification

Rated Control Circuit Voltage Uc

Type

Product Id

Suitable For

24V DC

WA4-10

1SBN040100R1010

NF(Z),AF(Z)09....38,AF40...65

24-60V50/60HZ-DC

WA4-11

1SBN040100R1011

NF(Z),AF(Z)09....38,AF40...65

48-130V50/60HZ-DC

WA4-12

1SBN040100R1012

NF(Z),AF(Z)09....38,AF40...65

100-250V50/60HZ-DC

WA4-13

1SBN040100R1013

NF(Z),AF(Z)09....38,AF40...65

250-500V50/60HZ-DC

WA4-14

1SBN040100R1014

NF(Z),AF(Z)09....38,AF40...65

24-60V50/60HZ-DC

WA4-96-11

1SBN040200R1011

AF80....96

48-130V50/60HZ-DC

WA4-96-12

1SBN040200R1012

AF80....96

100-250V50/60HZ-DC

WA4-96-13

1SBN040200R1013

AF80....96

250-500V50/60HZ-DC

WA4-96-14

1SBN040200R1014

AF80....96
