LAST SOLD AT ₹ 163,840.00
SKU # 1000085419

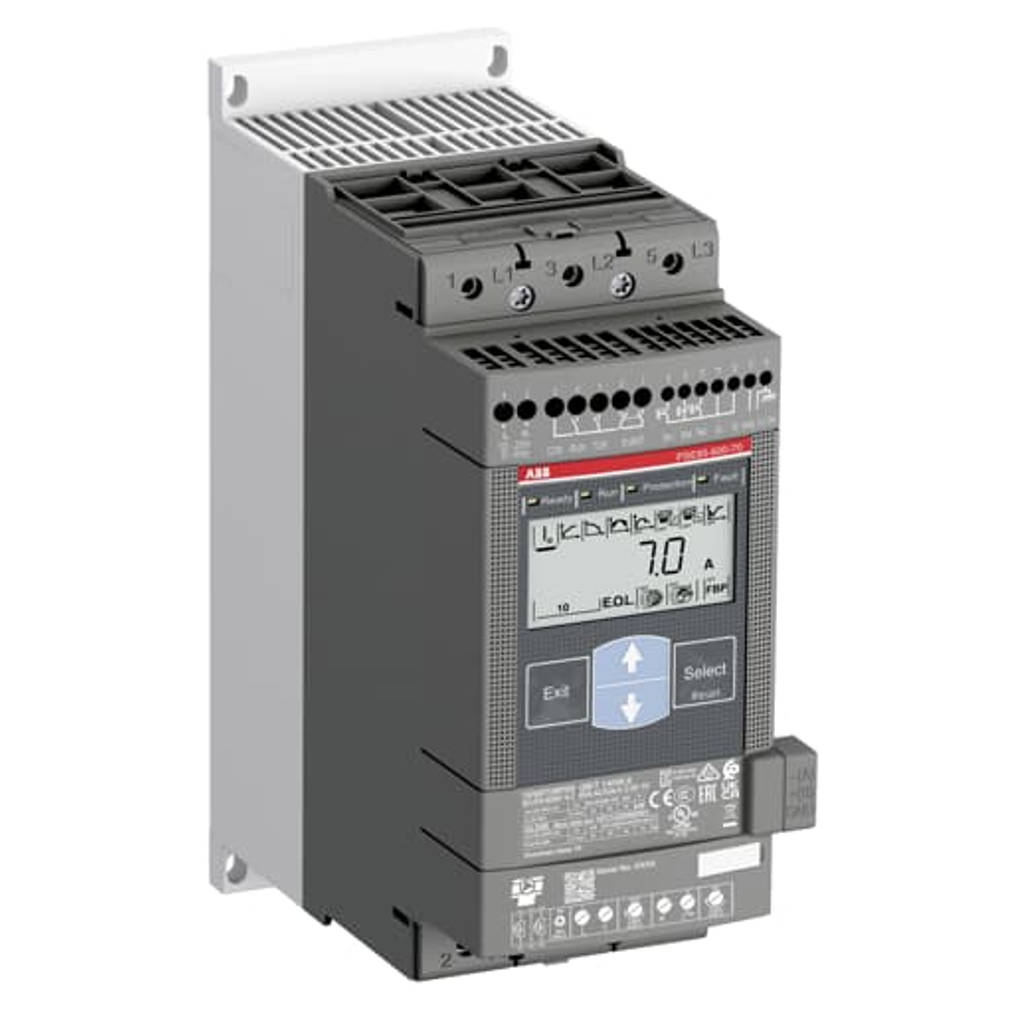

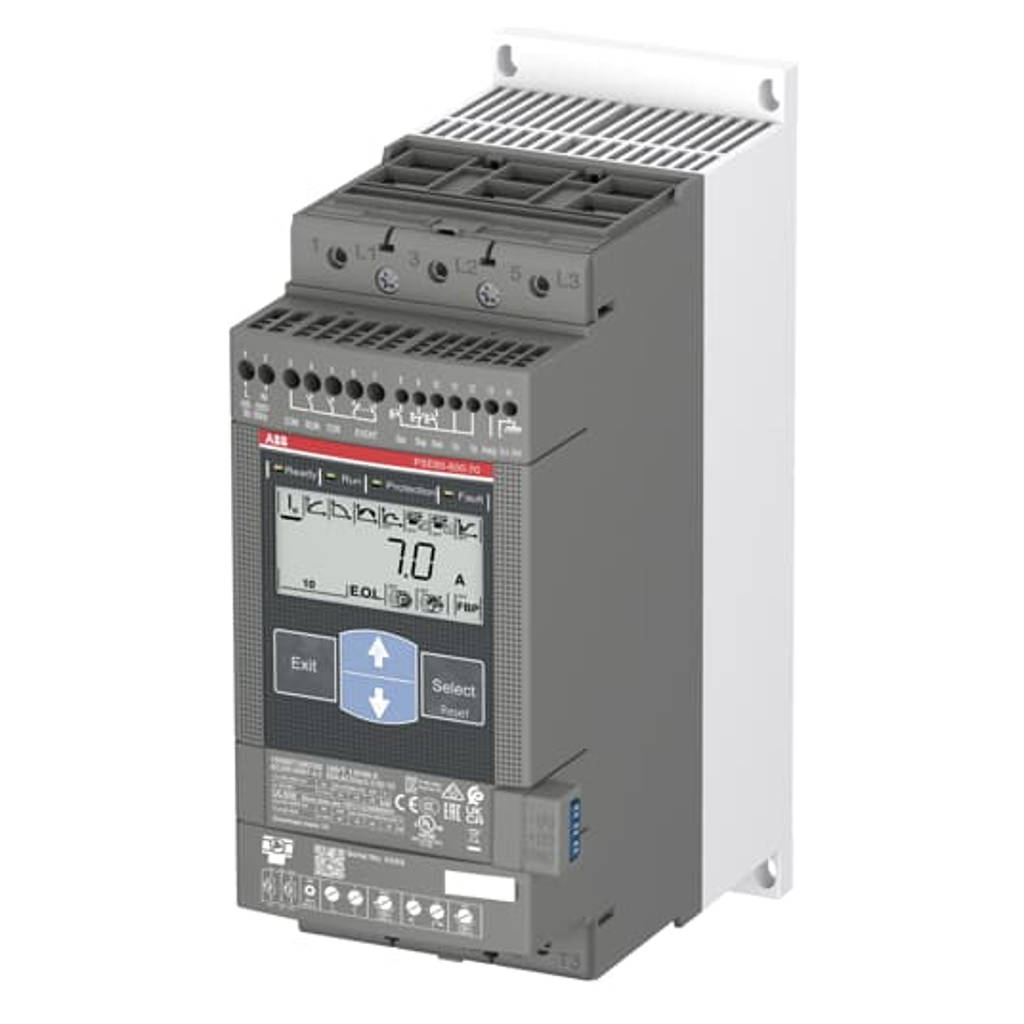

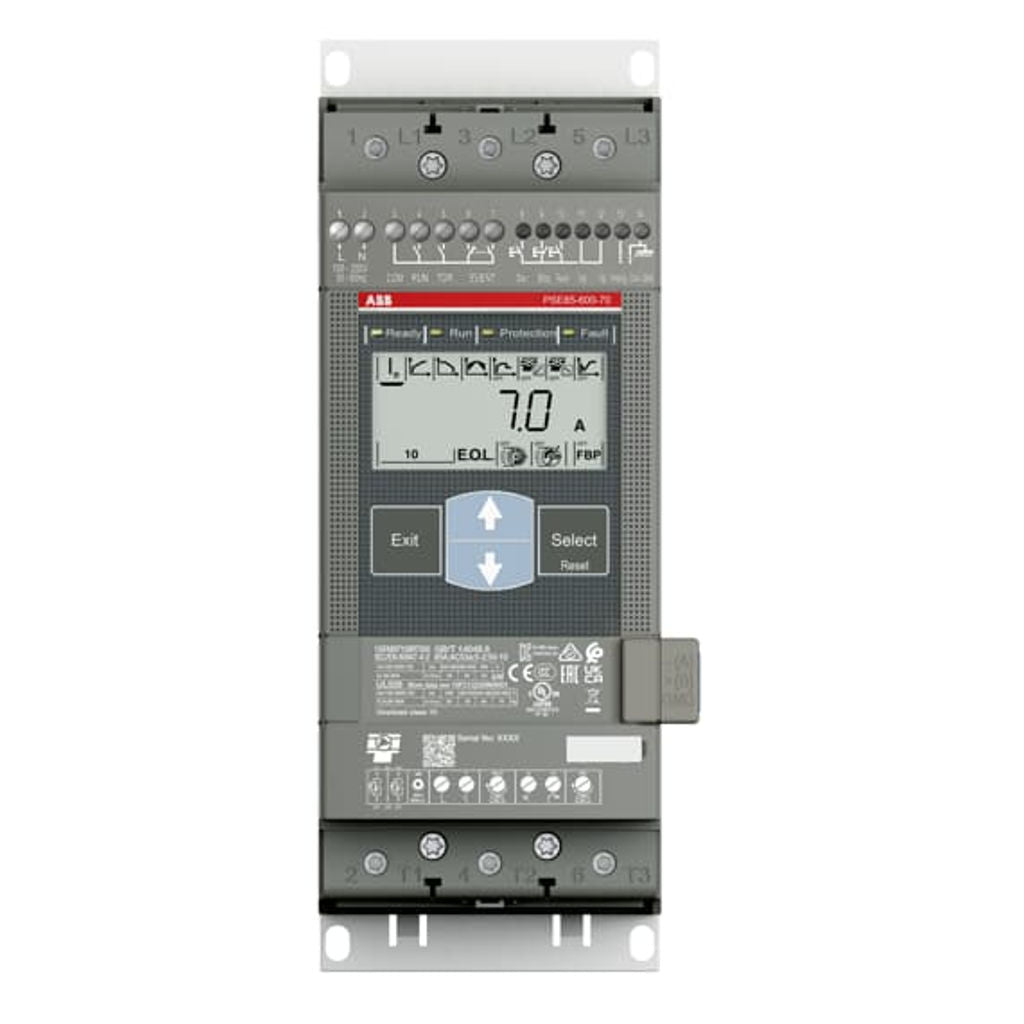

ABB PSE85-600-70 Soft Starter 1SFA897108R7000

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Voltage ramp and torque control for both start and stop
-
Two-phase controlled, Current limit and Kick-start
-
Built-in bypass for energy saving and easy installation
-
External keypad rated IP66 (Type 1, 4X,12) as an option
-
NEW Built-in modbus-RTU communication for monitoring and control
-
Fieldbus communication with fieldbus plug adapter and the fieldbus plug
-
Analog output for display of motor current
-
Electronic overload, Underload and locked rotor protection
-
Softstarter PSE85-600-70 for max 600V main voltage and 100 - 250V 50/60Hz control supply voltage
Product Specification
|
Brand |
ABB |
|
Product Type |
Soft Starter |
|
Product Code |
1SFA897108R7000 |
|
Model |
PSE85-600-70 |
|
Technical |
|
|
Rated Operational Voltage |
208 ... 600 V AC |
|
Rated Control Supply Voltage (Us) |
100 ... 250 V AC |
|
Rated Control Circuit Voltage (Uc) |
DC Operation 24 V |
|
Rated Frequency (f) |
50/60
Hz |
|
Rated Operational Power - In-Line Connection (Pe) |
|
|
Rated Operational Current - In-Line Connection (Ie) |
85 A |
|
Service Factor Percentage |
100 % |
|
Overload Protection |
Build-in electronic overload protection |
|
Integrated Electronic Overload |
Yes |
|
Adjustable Rated Motor Current Ie |
30 ... 100 % |
|
Starting Capacity At Maximum Rated Current Ie |
4xIe for 10s |
|
Ramp Time |
0
... 30 second [unit of time] |
|
Initial Voltage During Start |
30 ... 70 % |
|
Step Down Voltage Special Ramp |
No % |
|
Current Limit Function |
1.5 ... 7xIe |
|
Switch For Inside Delta Connection |
No |
|
Run Signal Relay |
Yes |
|
By-Pass Signal Relay |
Yes |
|
Fault Signal Relay |
Yes |
|
Overload Signal Relay |
Yes |
|
Analog Outputs |
4…20 mA |
|
Signal Indication Completed Start Ramp (LED) |
Green |
|
Signal Indication Ready To Start/Standby On (LED) |
Green |
|
Signal Indication Running R (LED) |
Green |
|
Signal Indication Ramping Up/Down (LED) |
Green |
|
Signal indication protection (LED) |
Yellow |
|
Signal indication fault (LED) |
Red |
|
Number Of Starts Per Hour At 3.5*Ie For 7 Sec. 50% On Time 50% Off Time |
10 |
|
Communication |
FiledBusPlug(Optional) |
|
Degree Of Protection |
IP00 |
|
Terminal Type |
Screw Terminals |
|
Connecting Capacity Main Circuit |
Hole
Diameter 8.5 MMT mm² |
|
Connecting Capacity Control Circuit |
Rigid
1 x 2.5 mm² |
|
Connecting Capacity Supply Circuit |
Rigid 1 x 2.5 mm² |
|
Tightening Torque |
Control
Circuit 0.5 N·m |
|
Product Main Type |
PSE85 |
|
Technical UL/CSA |
|
|
Maximum Operating Voltage UL/CSA |
Main Circuit 600 V |
|
Ampere Rating UL/CSA |
80 A |
|
Tightening Torque UL/CSA |
Control
Circuit 4.4 in·lb |
|
Environmental |
|
|
Ambient Air Temperature |
Operation
-25 ... +60 °C |
|
Dimensions |
|
|
Product Net Width |
90 mm |
|
Product Net Height |
245 mm |
|
Product Net Depth / Length |
184 mm |
|
Product Net Weight |
2.6 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Soft Starter |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
