ABB VEM4 Mechanical And Electrical Interlock Unit 1SBN030111R1000

ABB VEM4 Mechanical And Electrical Interlock Unit 1SBN030111R1000

Visit the ABB Store

₹ 3,384.00

Quantity

Pack Qty : 2



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

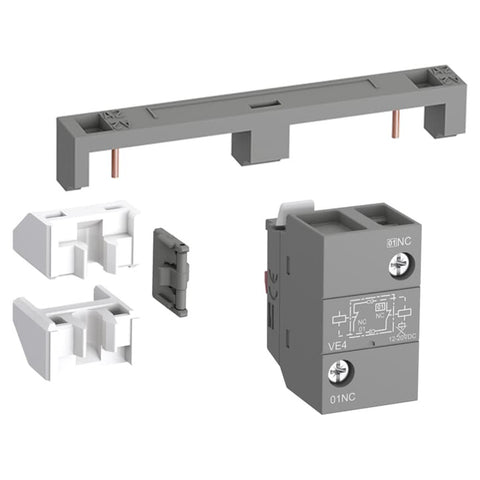

  • VEM4 mechanical and electrical interlock set for the interlocking of two AF contactors

  • VEM4 set includes a mechanical interlock unit VM4 with 2 fixing clips (BB4) and a VE4 electrical interlock block with A2-A2 connection

  • Fixing the electrical interlock block to the contactor front face connects the 2 built-in N.C. interlocking contacts with the two coils

  • VE4 block must be used with A2-A2 connection to respect the electrical connection diagram

Product Specification

Brand

ABB

Product Type

Mechanical and Electrical Interlock Unit

Product Code

1SBN030111R1000

Model

VEM4

Technical

Suitable For

AF09, AF12, AF16, AF26, AF30, AF38, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, AFS09, AFS12, AFS16, AFS26, AFS30, AFS38, AF09B, AF09ZB, AF12B, AF12ZB,AF16B, AF16ZB, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB

Rated Insulation Voltage (Ui)

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

Rated Impulse Withstand Voltage (Uimp)

6 kV

Number Of Auxiliary Contacts NC

1

Number Of Auxiliary Contacts NO

1

Tightening Torque

Auxiliary Circuit 1.2 N·m

Wire Stripping Length

Auxiliary Circuit 10 mm

Terminal Type

Screw Terminals

Dimensions

Product Net Width

25 mm

Product Net Height

43 mm

Product Net Depth / Length

31.6 mm

Product Net Weight

0.035 kg

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Interlockings

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
