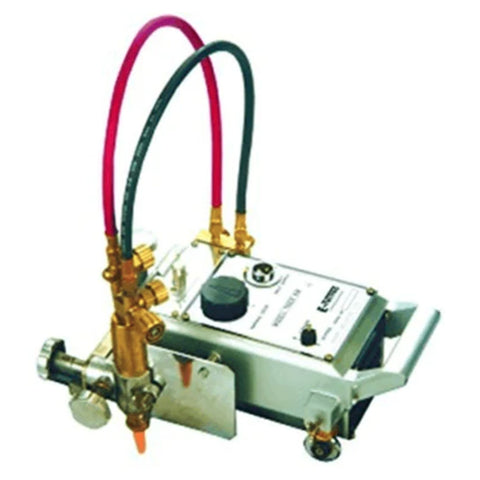

Ador gas Cutting Equipment Tiger NM  with Track

Ador gas Cutting Equipment Tiger NM with Track


₹ 40,568.40

Quantity

Min Qty : 1



Delivery Availability
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

Salient Features & Benefits
  • Heavy duty portable gas cutting machine with facility of clutch arrangement for easy manual movement.

  • Machines can be used for gas cutting with two torches simultaneously (this facility is however optional)

  • Torch is with nozzle mix technology for gas cutting with 3 seat nozzles

  • Tiger NM is supplied with steel rail of 1.8mtr length - sturdy, does not get easily damaged. There is a provision to lock tracks in to each other.

  • Speed variation is through mechanical cone-pulley arrangement (maintenance free)

Product Specifications

Technical Specifications

Specifications

Unit

Value

Model Name


TIGER NM

Input Supply Voltage

V

220 / 240

Phase

No.

1

Frequency

Hz

50

Cutting Capacity

mm

100 THK.

Cutting Speed

mm / min

150 – 800

Straight Cut

mtrs.

1.8 Or in multiples by adding Rails

Circle Cutting

mm

200 TO 2000MM DIA.

Bevel Cutting

Deg.

Upto 45 Deg.

Horizontal Adj. (Torch)

mm

100

Vertical Adj. (Torch)

mm

70

Overall Dimensions (L X W X H)

mm

350 X 220 X 175

Weight of Machine

Kgs

9.8 (W/O TRACK)

Weight of Track

Kgs

6.2


Standard Scope Of Supply

Sr.No.

Description

Product Code

Qty

1

TIGER NM Flame Cutting Machine With Steel Track (1.8mtr)

S10.64.551.0058

1

Optional Accessories

1

Circle Cutting attachment for TIGER NM

S41.04.022.0131

1

2

Straight Rail 1.8 Mtrs.

S41.04.022.0132

1
