Ador Welding Machine CHAMP MIG 600

₹ 142,732.00

Quantity



Pack Qty : 1

Delivery Availability

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

General Features

The new word Class indigenous inverter based GMAW Welding outfit
Inverter based digitaly controled GMAW outfit
High efficiency and high power factor – resuting energy saving
Enhanced Reliablity due to SMD technology
Auto “Weld Stop” when Welding torch is taken away from Weld job

Introduction

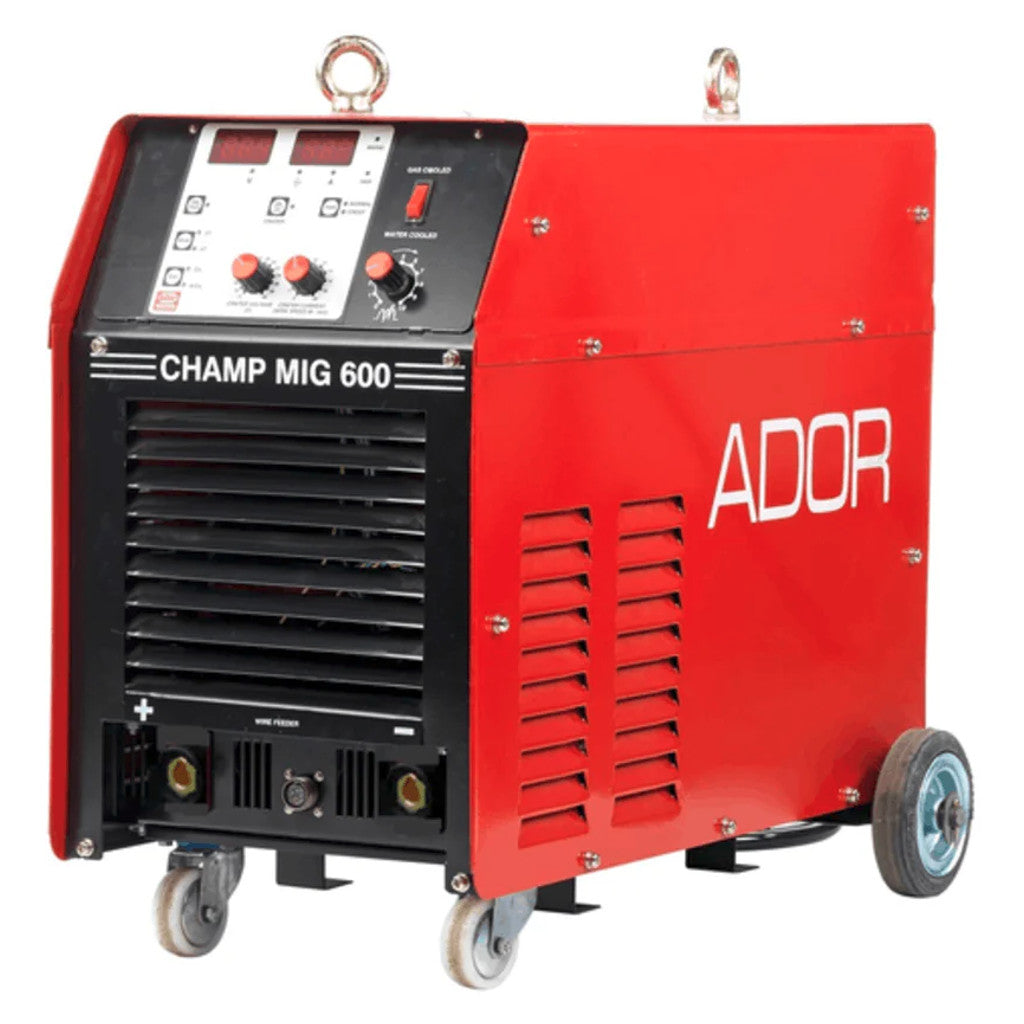

CHAMP MIG 600 is an IGBT inverter based Welding power source , Suitable for GMAW applications. The

IGBT Power module, high frequency transformer and fast recovery diode are used as key device for power

conversion and transmission to assure better efficiency and performance.

The Complete system consists of power source, Wire feeder, water cooled or gas cooled torch, water

cooling unit (for water cooled systems) and interconnecting cables.

Details Of Complete System

Sr. No.	Description	Champmig 600a	Champmig 600e
01	Power Source	ICVR 600	ICVR 600
02	Wire feeder	FEEDLITE 40 (NEH-RC)	FEEDLITE 40 (NEH RC)
03	Torch	ADOR-MTG 600 E.	ADOR TW 502 (E)

Salient Features

Digital panel for adjusting the Welding
25% more Energy efficient than conventional machines.
Maximum Power factor is 0.95
Excellent dynamic response enables superior arc characteristics. 2T, 4T operating modes
Dynamic Inductance adjustment for better arc control
Crater Voltage and Crater current adjustment through digital panel. Unique feature of Pinch-off Pulse to avoid globule formation.
Automatic “Weld Stop” facility.
Normal/Creep feeding selection available on front panel.

Protection

The equipment is provided With following protections

Under Voltage and Over Voltage If supply Voltage goes lower or higher than set limit, error message is displayed on display
Over Temperature If the temperature of the main power elements is more than safety limits, error message is displayed
Single Phasing Protection If any one of the three phases (R, Y, and B) is absent, Welding will stop. Welding current woud not be available in this condition.

Warranty

One year from the date of purchase. ADOR Welding Limited warrants that a new equipment sold from Plant/Area Offices / Authorised Distributors are free from defects in materials and workmanship

and will perform in full accordance with applicable specifications.

Product Specifications

Technical Specifications	Unit	Icvr 600
Input
Voltage	Vot	415 V +15 %, -10 %
Phase	No	3Ø
Frequency	Hz	50 / 60
Max. Input KVA
at 100% duty Cycle	KVA	21.5
at No Load	KVA	0.31
Output
Open Circuit Voltage	Volts+/-5%	65
Welding Current Range	Amp	65-600
at 60% duty Cycle	Amp	600
at 100% duty Cycle	Amp	465
Welding Voltage Range
Crater Current Range	Vot	16-45
Crater Voltage Range	Amp	65-600
Mode of operation	Vot	16-45
Remote control		2 track, 4 track, Gas check, OCV check facility
Power Factor	-	For setting Voltage & current
Efficiency	%	Max 0.94 89% at 100% duty Cycle
General
Compatibiity to International standard	-	As per Std. EN60974-1
Wire feed speed	m/min	1.5-18
Suitable Welding Wire dia	mm	Auminum 1.2 – 1.6 Stee 0.8,1.0,1.2 & 1.6
Ingress Protection	Class	IP23
Cooling	Type	Forced Air
Dimensions
Length	mm	670
Width	mm	450
Height	mm	620
Weight	Kg	56
Audio Noise Emission	dB	70

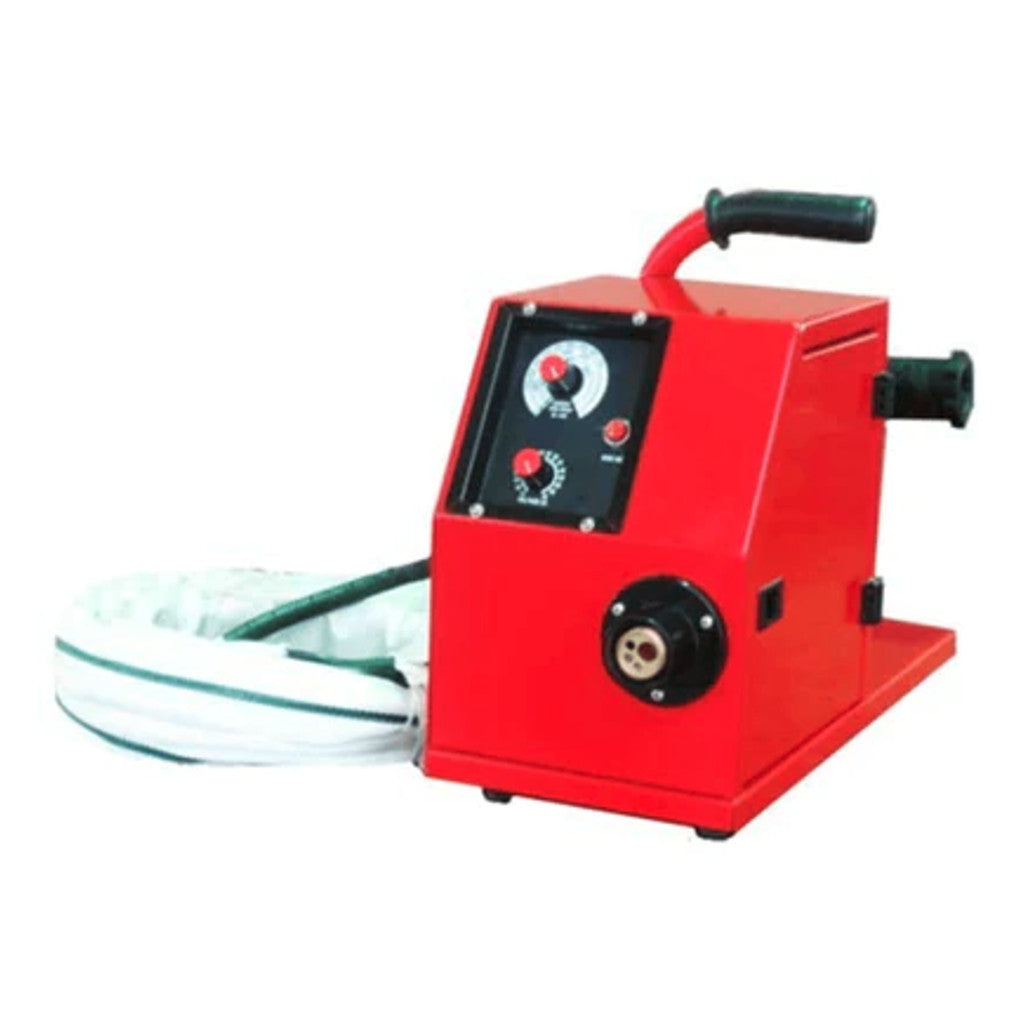

Wire Feeder Specifications

Technical Specifications	Feedlite 40 (NEHR)C
Suitable for Wire sizes	0.8,1,1.2,1.6 mm
Wirefeed speed	1.5 to 18 mtr/min
Wire roll drive	Four
Wire drive motor	Permanent Magnet DC type.
Wire feeder Motor Voltage	42 V
Wire feeder fitted With rollers	1.2/1.6 for Sold Wire 2 no
Suitable for Wire Spool capacity	15kg
Dimensions
Length	563mm
Width

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	MIG Welding Machine
Manufacturer Details	Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236
Packer Details	Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236
Country of Origin	India
