LAST SOLD AT ₹ 93,456.00

SKU # 1000003260

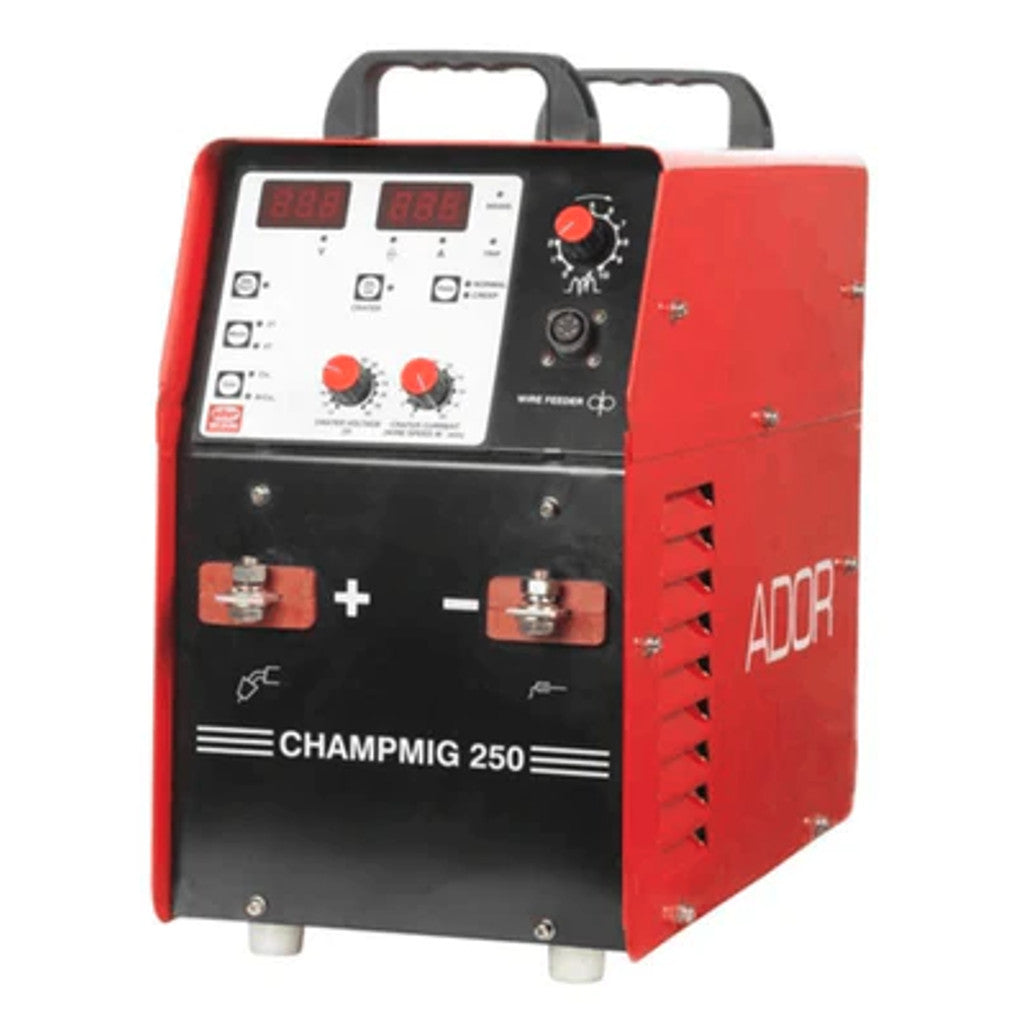

Ador Welding Machine CHAMP MIG 250


₹ 93,456.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

General Features :

CHAMP MIG 250 is IGBT inverter based welding outfit suitable for GMAW applications. The IGBT Power module, ferrite core and fast recovery diode are used as key device for power conversion and trans-mission to assure better efficiency and performance. The complete system consists of power source, wire feeder and MIG torch and interconnecting cables.

Details Of Complete System :

Sr. No.

Description

Champ Mig 250 A

Champ Mig 250 B

1

Power Source

ICVR 250

ICVR 250

2

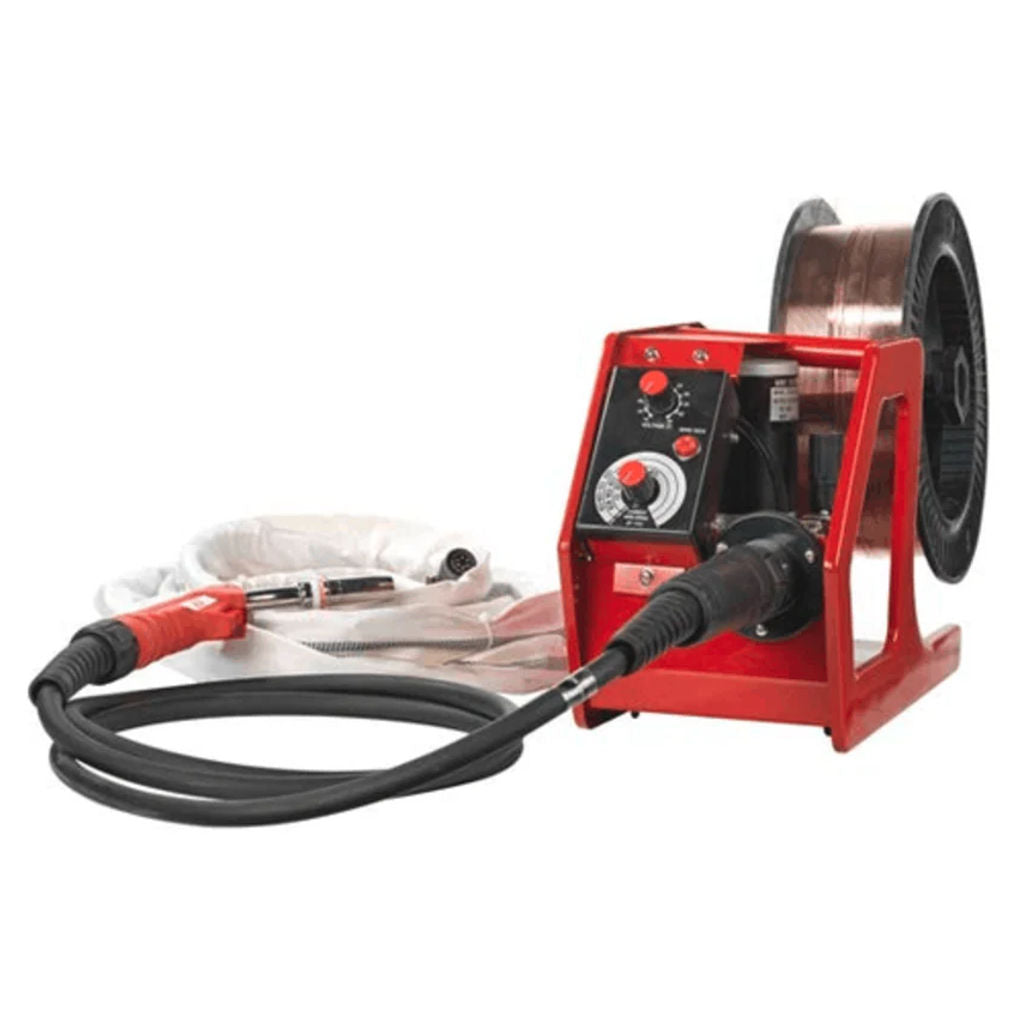

Wire feeder

FEEDLITE 20 (NELR)

FEEDLITE 20 (NELR)

3

Torch

ADOR TW 252 (E)

ADOR MTG 250 (E)

Salient Features :

  • Inverter based GMAW outfit

  • High efficiency and high power factor – resulting energy saving

  • Auto “Weld Stop” when welding torch is taken away from weld job

  • Compatible to Power Generator Supply

  • Enhanced Reliability due to SMD technology

  • Digital Panel for adjusting the welding parameters

  • 30% more Energy efficient than conventional machines

  • Maximum Power factor is 0.93

  • Excellent dynamic response enables superior arc characteristics. 2T, 4T operating modes

  • Electronic choke adjustment for better arc control

  • Crater voltage and Crater current adjustment through digital panel

  • Unique feature of Globule Detachment to stop formation of globules at the tip of wire at the end of welding

  • Automatic “Weld Stop” facility

Protection :

The equipment is provided with following protections.

  • Under Voltage and Over Voltage: Error message is displayed and the equipment shuts down if the supply voltage exceeds the positive or negative limits specified in the Technical Specifications

  • Over Temperature: Error message is displayed and the equipment shuts down if the temperature of the main power components exceeds the safe limits

  • Single Phasing Protection: Error message is displayed and the equipment shuts down if any one of the three phase supply line is absent (single-phasing prevention / protection)

Warranty :

One year from the date of commissioning. ADOR WELDING LIMITED warrants that all new equipment sold from Plant/Area Offices / Authorised Distributors are free from defects in materials and workmanship and will perform in full accordance with applicable specifications.

  • In view of continuous development, ADOR WELDING LIMITED reserves the right to modify/change the design and /or the specifications without any prior notice.

  • Backed by dedicated customer care package.

Product Specifications

Input Specifications

Input

Unit

ICVR 250

Input Supply

Voltage

Volt

415, +15%, -10%

Phase

No

3

Frequency

Hz

50/ 60

Input KVA

at 100% duty cycle

KVA

6.5

at No Load

KVA

0.19

Output Specification

Parameters

Unit

Value

Open Circuit Voltage

Volts +/-5%

65

Welding Current Range

Amp

50-250

Welding Current (40°C 10 minutes cycle)

at 100% duty cycle

Amp

195

Welding Voltage Range

Volt

16-34

Crater Current Range

Amp

50-250

Crater Voltage Range

Volt

16-34

Mode of operation

-

2 track, 4 track, Gas check, OCV check facility

Remote Control (on wire feeder)

-

For setting voltage & current

Power Factor

-

Max 0.93

Efficiency

%

83% at 100% duty cycle

General Specification

Parameters

Unit

Value

Compatibility to International standard



As per Std. EN60974-1

Wire feed speed

m/min

1.5-18

Suitable Welding Wire Diameter

mm

Steel 0.8,1.0 and 1.2

Ingress Protection

Class

IP23

Cooling

Type

Forced Air

Dimensions (Approx.)

Length

mm

500

Width

mm

260

Height

mm

470

Weight

Kg

26

Audio Noise Emission



70

pdficonDownload User manual
