APC Smart-UPS RT 20kVA SURT20KUXIG-IN

Product Description

• High density, double-conversion on-line power protection with scalable runtime

• Smart-UPS On-Line Features & Benefits

• Adaptability

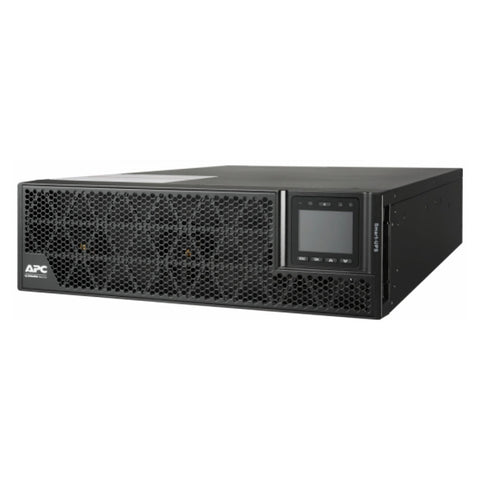

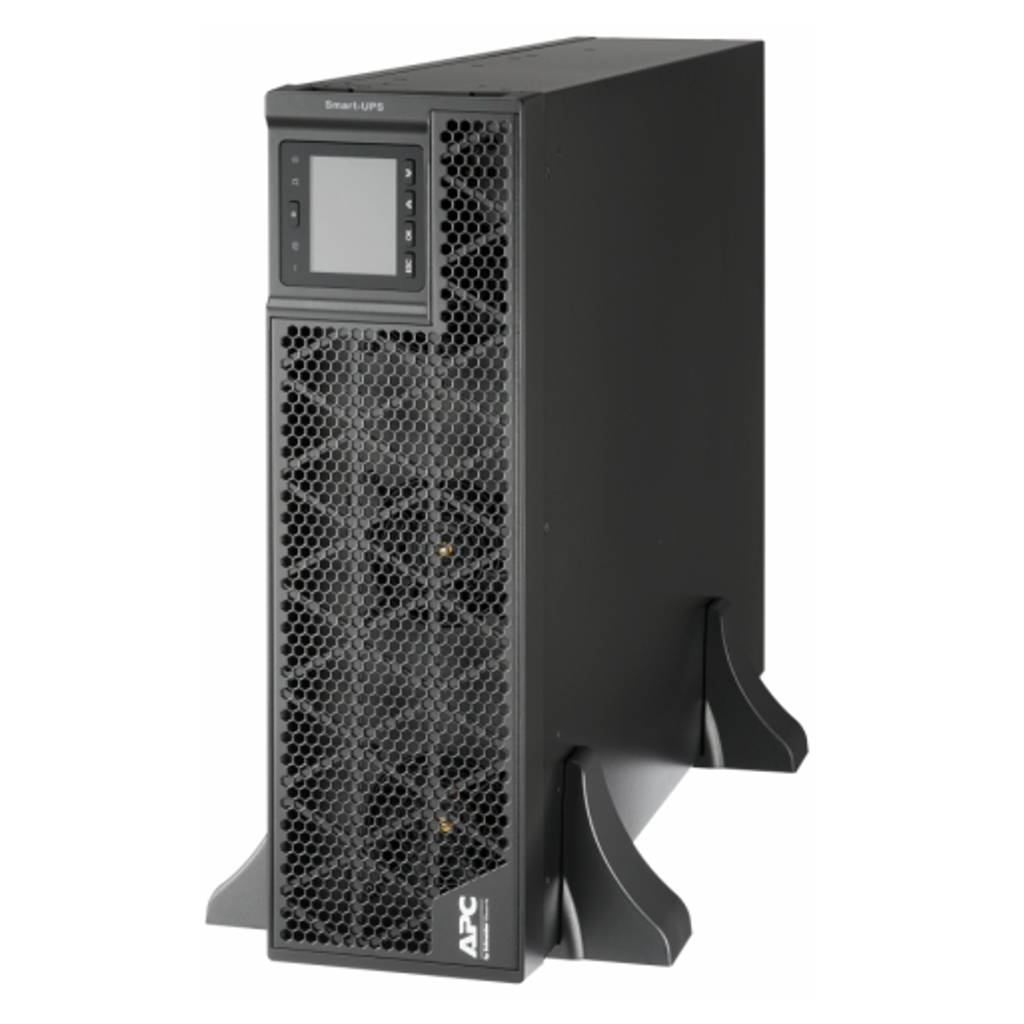

• Rack/Tower convertible

• Protects the initial investment in the UPS when migrating from tower to rack-mount environment

• Flash upgradeable firmware

• Install maintenance releases of firmware remotely using FTP

• Plug-and-Play external batteries

• Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS

• Availability

• Automatic restart of loads after UPS shutdown

• Automatically starts up the connected equipment upon the return of utility power

• Scalable runtime

• Allows additional run time to be quickly added as needed

• Hot-swappable batteries

• Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

• Temperature-compensated battery charging

• Prolongs battery life by regulating the charge voltage according to battery temperature

• Automatic internal bypass

• Supplies utility power to the connected loads in the event of a UPS power overload or fault

• Intelligent battery management

• Maximizes battery performance, life, and reliability through intelligent, precision charging

• Manageability

• InfraStruXure Manager Compatible

• Enables centralized management via the APC InfraStruXure Manager

• Intelligent Card Slot

• Customize UPS capabilities with management cards

• Serial connectivity

• Provides management of the UPS via a serial port

• LED status indicators

• Quickly understand unit and power status with visual indicators

• Network manageable

• Most models provide remote power management options of the UPS over the network

• Many do not have NMC embedded

• Features

• Low operating and maintenance costs with proven reliability and intelligent battery management

• Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging

• Automatic self tests insure battery reliability and warn customers in advance of battery replacement

• Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down

• Peace of mind that comes with full equipment compatibility and reliability of a leader

• Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies

• Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards

• Avoids costly power problems by keeping your IT equipment and data protected and available

• Network grade power conditioning protects from damaging surges and disruptive noise

• The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events

• Save time with easy and convenient remote/network accessibility.

• Network manageable via serial, USB or Ethernet

• Includes Powerchute Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities

• Protection

• Generator compatible

• Ensures clean, uninterrupted power to protected equipment when generator power is used

• Input power factor correction

• Minimizes installation costs by enabling the use of smaller generators and cabling

• Cold-start capable

• Provides temporary battery power when the utility power is out

• Frequency and voltage regulation

• Gives higher application availability by correcting poor frequency and voltage conditions without using the battery

• Safety-agency approved

• Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment

• Power conditioning

• Protects connected loads from surges, spikes, lightning, and other power disturbances

• Resettable circuit breaker

• Easy recovery from overloads; no need to replace a fuse

• Serviceability

• User-replaceable batteries

• Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

• Disconnected battery notification

• Warns when a battery is not available to provide backup power

• Audible alarms

• Provides notification of changing utility power and UPS power conditions

• Predictive failure notification

• Provides early-warning fault analysis ensuring proactive component replacement

• Automatic self-test

• Periodic battery self-test ensures early detection of a battery that needs to be replaced

Product Specification
