LAST SOLD AT ₹ 15,250.00
SKU # 1000009779

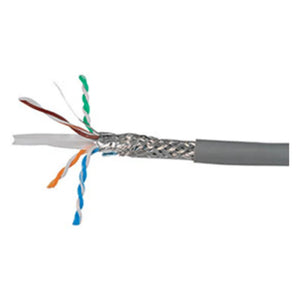

D-LINK Cat 6 SFTP Cable 305 m
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Enhanced performance cable for transmission of high speed data
-
Digital and analogue voice and video (RGB) signals on LANs
-
Supports Gigabit Ethernet (1000 baseT) standard
-
Operates at bandwidth of 250 MHz.
-
Tinned Copper Screening gives Protection against EMI and avoid signal loss.
-
Better Mechanical Properties of Cable
Product Specifications
Brand |
D-Link |
Type |
Cat 6 sftp Cable |
Length |
305 m |
Construction Properties |
|
Conductor |
23 AWG Solid bare Copper |
Insulation |
High Density Polyethylene |
Pairs |
2 Insulated conductors twisted together |
Shield |
Aluminum / Polyester Foil Tinned copper Braiding |
Sheath |
PVC / LSZH |
Cable |
7.5 mm nominal |
Electrical Properties |
|
Conductor Resistance |
≤ 9.38 Ω/100m |
Mutual Capacitance |
< 5.6nF/100m |
Resistance Unbalance |
5% Max |
Capacitance Unbalance |
330pF/100m |
Delay Skew |
< 45nS |
Mechanical Properties |
|
Bending Radius |
< 8 x Cable Diameter at –20°C ± 1°C |
Pulling Force |
11.5Kgs |
Temperature Range |
–20°to +70°C |
Connection System |
|
Type |
Compatible with all common systems according to TIA/EIA 568.C.2 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
SFTP Cable |
Manufacturer Details |
D-Link Corporation. No 289, Xinhu 3rd Road, Neihu District, Taipei City 114, Taiwan, R.O.C, |
Packer Details |
D-Link Corporation. No 289, Xinhu 3rd Road, Neihu District, Taipei City 114, Taiwan, R.O.C, |
Importer Details |
D-LINK (INDIA) LTD Plot No U02B, Verna Industrial, Estate, Verna, Goa-403722 |
Country of Origin |
Taiwan |
