SKU # 1000083012

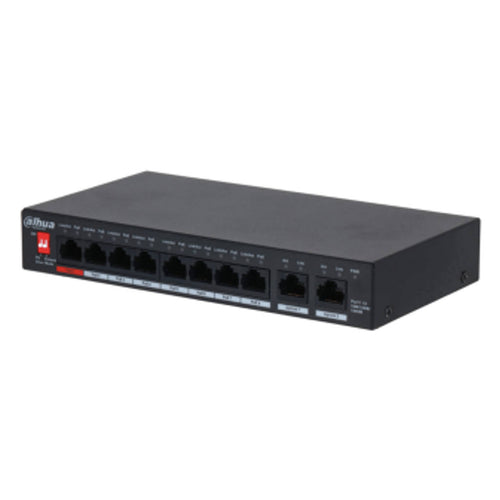

Dahua 10-Port Fast Ethernet Switch With 8-Port PoE DH-PFS3010-8ET-65
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Support eight 10/100M PoE power supply ports, and two 10/100M uplink ports
-
Support 802.3af and 802.3at standards
-
Operating Temperature: -10°C to +55°C
-
Support 250 m long distance PoE tansmission
-
Support PoE watchdog
-
The 8-Port PoE switch with 10/100 Mbps is cost-effective and accessible
It supports scenarios with 1 to 8 access points and is widely used in security monitorning network, such as supermarkets, hospitals and stations -
Support eight 10/100M PoE power supply ports and two 10/100M uplink ports
-
The power consumption of full load is 65W
-
Various Port
-
2 uplink ports with 10/100Mbps Base-TX
-
Long Distance Power Transmission
-
Adopt DIP switch with bandwidth limit (100Mbps/10Mbps)
-
After speed limitation, it supports 250 m long distance PoE transmission
-
Adopt the PoE watchdog function to avoid manually maintenance and device restart, which can realize the intelligent management and reducethe cost
Product Specification
Brand |
Dahua |
Product Type |
Ethernet Switch |
Model |
DH-PFS3010-8ET-65 |
Hardware | |
Data Transmission Port |
8 PoE ports with 10/100 Mbps Base-TX 2 uplink ports with 10/100Mbps Base-TX |
Power Supply |
AC100–AC240V |
Operating Temperature |
-10°C to +55°C (-14°F–131°F) |
Operating Humidity |
10%–90% |
Power Consumption |
Idling: 1.0W Full load: 65W |
PoE | |
PoE Budget |
Port1-8 ≤30W, whole PoE budget ≤65W |
PoE Standard |
IEEE802.3af, IEEE802.3at |
PoE Pin Assignment |
PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-) |
Performance | |
Switching Capacity |
2.0 Gbps |
Packet Forwarding Rate |
1.49 Mpps |
MAC Table Size |
2 K |
Jumbo Frame |
2048 byte |
Communication Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3X |
Performance | |
ESD |
Air discharge: 8kV Contact discharge: 6kV |
Thunderproof |
Common mode: 6kV Differential mode: 4kV |
Certifications |
CE: EN60950; FCC |
Net Weight |
0.76 kg (1.68 lb) |
Gross Weight |
1.3 kg (2.87 lb) |
Product Dimensions (W × L × H) |
242.5 mm × 122.9 mm × 35.0 mm (9.55" × 4.84" × 1.38") |
|
Packaging Dimensions (W × L × H) |
Packing box: 303 mm × 262 mm × 72 mm (11.92" ×10.31" × 2.83") Protective box: 549 mm × 325 mm × 397 mm (21.61" ×12.80" × 15.63") |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Ethernet Switch |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
