SKU # 1000083040

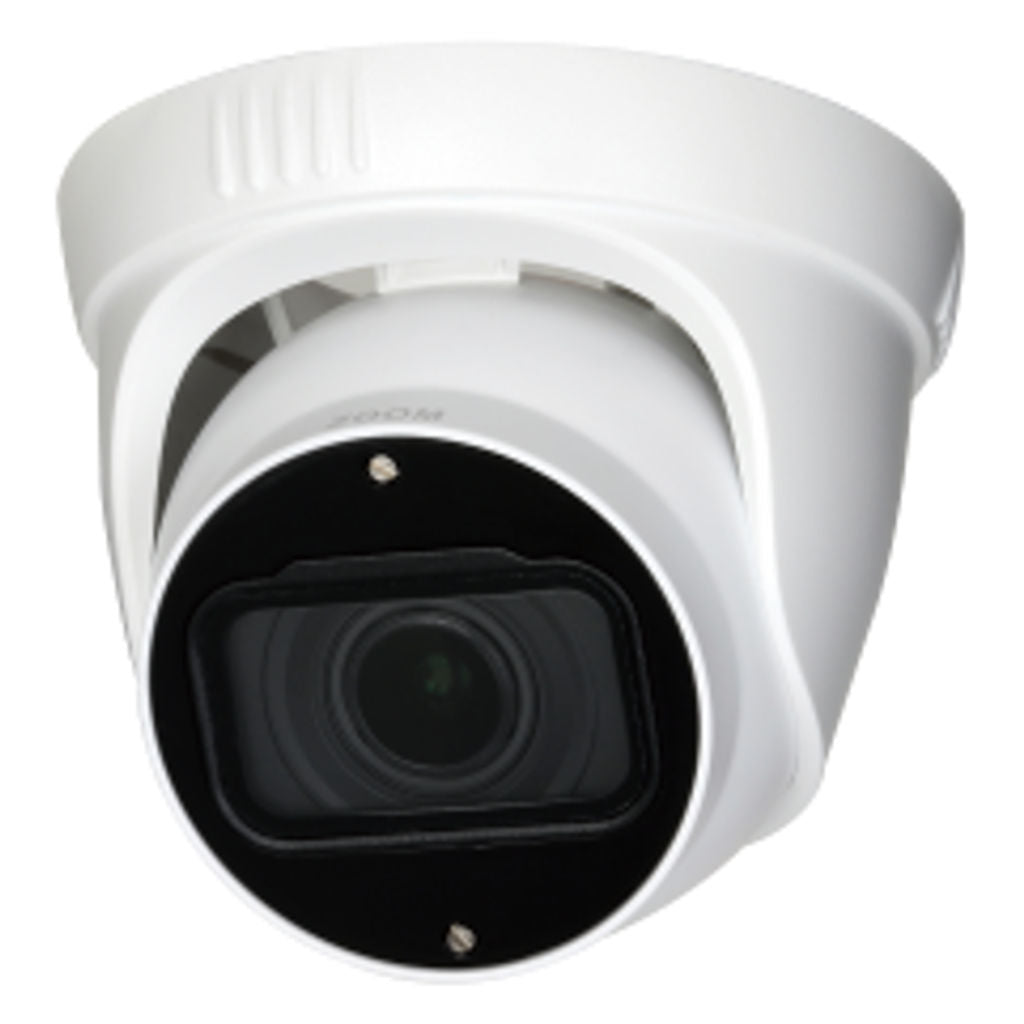

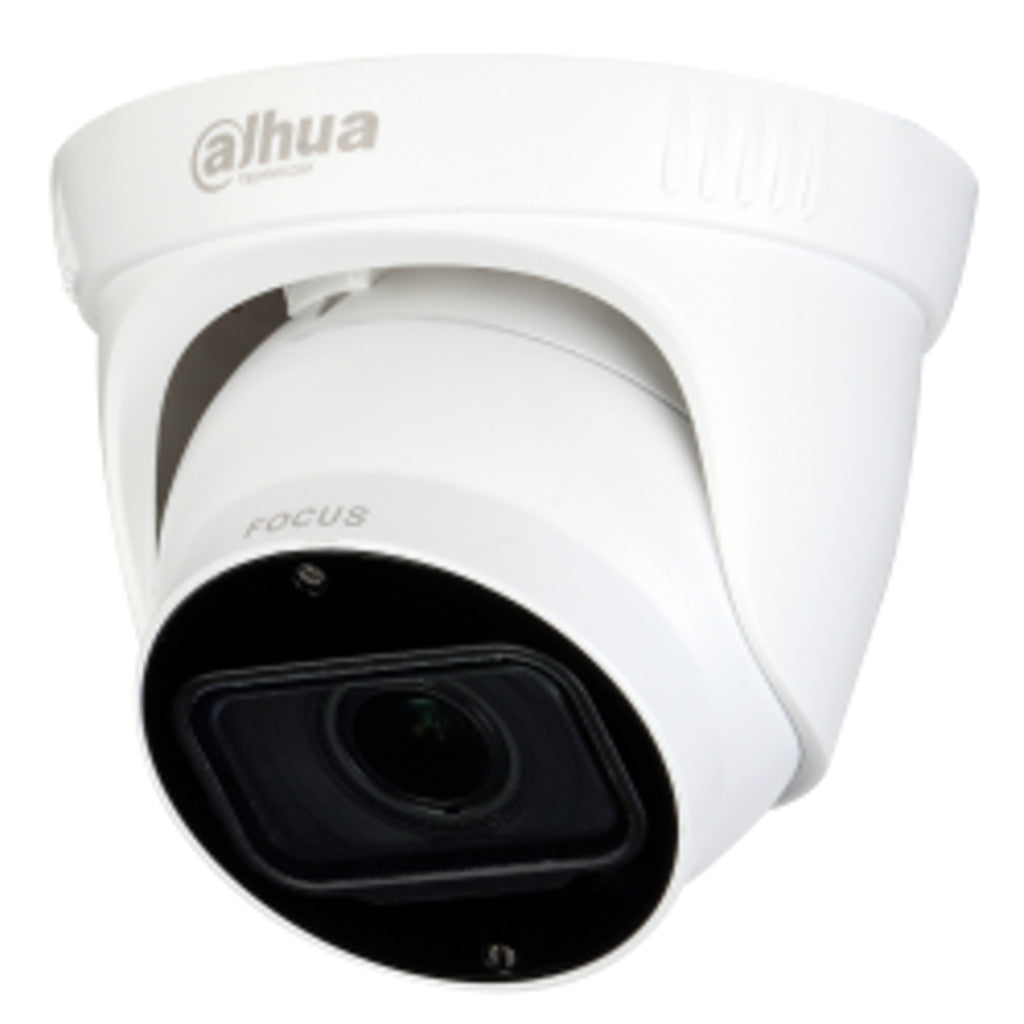

Dahua HDCVI IR Eyeball Camera 2MP DH-HAC-T3A21P-VF
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
2.7-12mm vari-focal lens
-
Max. IR length 40m, Smart IR
-
4 Signals over 1 Coaxial Cable
-
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility
-
Long Distance Transmission
-
HDCVI technology guarantees real-time transmission at long distance without any loss
-
It supports up to 800m(1080P)/1200m(720P) transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable
-
Actual results verified by real-scene testing in Dahua's test laboratory
-
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection
-
HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling
-
The plug and play approach enables HD video surveillance without the hassle of configuring a network
-
Smart IR
-
The camera is designed with microcrystalline LED IR illumination for best lowlight performance
-
Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination
-
Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the
distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera -
Multi-formats
-
The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market
-
The four formats can be switched over through OSD menu or by PFM820(UTC controller)
-
This feature makes the camera to be compatible with not only HCVRs but also most end users existing HD/SD DVRs
-
OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes
-
The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect
-
The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish
-
The camera's outstanding reliability is unsurpassed due to its rugged design
-
The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments
-
With working temperature range of -40°C to +60°C (-40°F to +140°F), the camera is designed for extreme temperature environments
-
Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning
Product Specification
Brand |
Dahua |
||
Product Type |
Eyeball Camera |
||
Model |
DH-HAC-T3A21P-VF |
||
Series |
Cooper |
||
Camera | |||
Image Sensor |
1/2.7" CMOS |
||
Effective Pixels |
1920(H)×1080(V), 2MP |
||
Scanning System |
Progressive |
||
Electronic Shutter Speed |
PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
||
Minimum Illumination |
0.04Lux/F1.85, 30IRE, 0Lux IR on |
||
S/N Ratio |
More than 65dB |
||
IR Distance |
Up to 40m (131ft) |
||
IR On/Off Control |
Auto / Manual |
||
IR LEDs |
2 |
||
Lens | |||
Lens Type |
Vari-focal lens / Fixed iris |
||
Mount Type |
Board-in |
||
Focal Length |
2.7-12mm |
||
Max Aperture |
F1.8 |
||
Angle of View |
H: 106°~33° V: 56°~19° |
||
Focus Control |
Manual |
||
Close Focus Distance |
500mm 19.7'' |
||
DORI Distance | |||
|
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively | |||
DORI Definition |
Distance Wide |
Tele |
|
Detect |
25px/m (8px/ft) |
45m(148ft) |
132m(433ft) |
Observe |
63px/m (19px/ft) |
18m(60ft) |
53m(173ft) |
Recognize |
125px/m (38px/ft) |
9m(30ft) |
26m(87ft) |
Identify |
250px/m (76px/ft) |
5m(15ft) |
13m(43ft) |
Pan / Tilt / Rotation | |||
Pan/Tilt/Rotation |
Pan: 0° ~ 355° Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
||
Video | |||
Resolution |
1080P (1920×1080) |
||
Frame Rate |
25/30fps@1080P, 25/30/50/60fps@720P |
||
Video Output |
1-channel BNC high definition video output / CVBS video output (Can switch) |
||
Day/Night |
Auto (ICR) / Manual |
||
OSD Menu |
Multi-language |
||
BLC Mode |
BLC / HLC / DWDR |
||
WDR |
DWDR |
||
Gain Control |
AGC |
||
Noise Reduction |
2D |
||
White Balance |
Auto / Manual |
||
Smart IR |
Auto / Manual |
||
Certifications | |||
Certifications |
CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014 |
||
Interface | |||
Audio Interface |
N/A |
||
Eelectrical | |||
Power Supply |
12V DC ±30% |
||
Power Consumption |
Max 4.6W (12V DC, IR on) |
||
Environmental |
|||
Operating Conditions |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above-40°C (-40°F) |
||
Storage Conditions |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
||
Ingress Protection & Vandal Resistance |
IP67 |
||
Construction | |||
Casing |
Plastic+Aluminium |
||
Dimensions |
Φ122mm×106mm(Φ4.8"×4.17") |
||
Net Weight |
0.39kg (0.86lb) |
||
Gross Weight |
0.51kg (1.12lb) |
||
Warranty |
As Per Manufacturer Terms and Condition |
||
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Eyeball Camera |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
