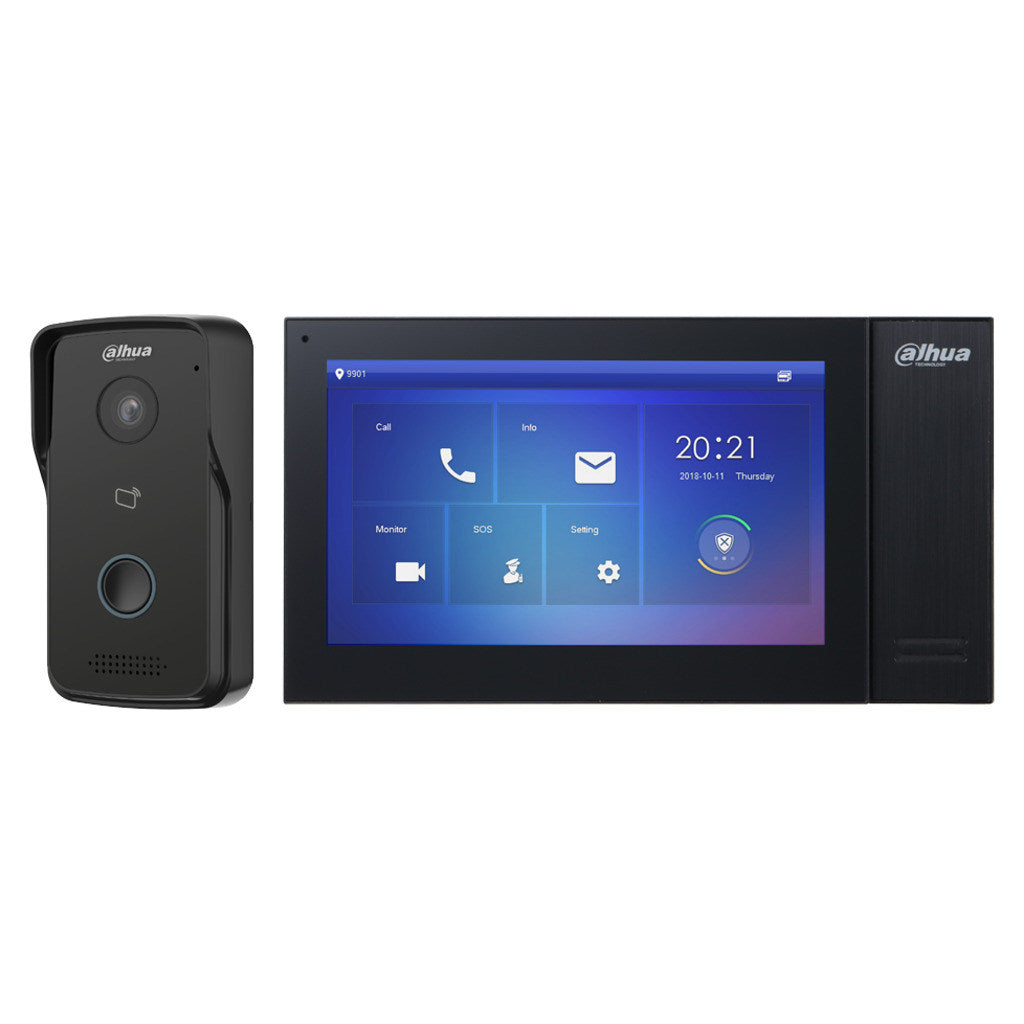

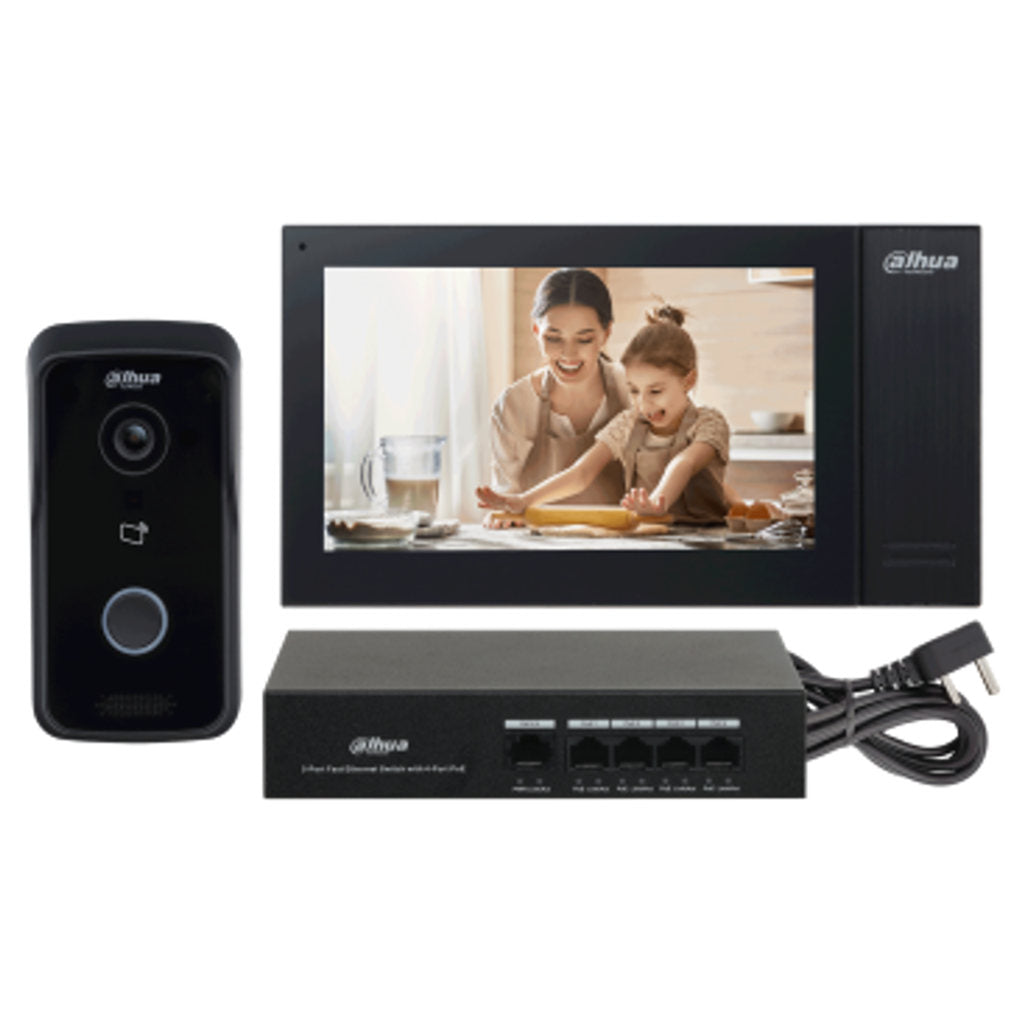

Dahua IP Villa Door Station & Indoor Monitor DHI-KTP02

Brand

Dahua

Product Type

IP Kit

Product Model

DHI-KTP02

Model

DHI-VTO2111D-P-S2

System

Main Processor

Embedded processor

Operating System

Embedded LINUX operating system

Button Type

Mechanical

Interoperability

ONVIF

Internet Protocol

SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP

Baisc

Camera

1/4" 1MP CMOS high definition, low illumination/ WDR, color/IR

Angle Of View

Horizontal: 107°; vertical: 61°; diagonal: 122°

WDR

Yes

Noise Reduction

3D noise reduction

Video Compression

H.264

Video Resolution

Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1

Frame Rate

PAL: 25 fps NTSC: 30 fps

Video Bit Rate

256K to 4M

Light Compensation

Auto IR

D/N

ICR auto switch

Audio Compression

G.711a; PCM; AAC

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way voice call

Audio Enhancement

Echo suppression and cancellation/digital noise reduction

Audio Bit Rate

16KHz, 16Bit

Function

Communication

Full digital

Unlock Mode

Card/App remote/indoor monitor unlock

Card Type

IC card

Motion Detection

Video motion detection

Auto Snapshot

Auto snapshot can only be enabled on indoor monitors

Leave Photos And Messages

Yes (SD card is needed)

Web Configuration

Yes

Performance

Card Reading Distance

3cm–5cm

Casing

PC+Acrylic

Capacity

Card

10,000

Port

Rs-485

1

Electric Lock

1

Exit Button

1

Door Status Detection

1

Lock Control

1, normally closed by default

Network

1 10Mbps/100Mbps network port (8-core white ribbon cable)

Alarm

Tamper

Yes

General

Color

Black

Power Supply Mode

12V DC 1A Standard PoE

Installation

Surface mount

Certifications

CE FCC UL

Accessory

Brackets and alarm ribbon cable

Dimensions

135mm×70.4mm×34.4mm (5.31"×2.77"×1.35")

Protection Grade

IP65 (silicone sealant is needed, see the quick start guide)

Operating Temperature

-30°C to +60°C (-20°F to +60°F )

Operating Humidity

10%RH–90%RH (non-condensing)

Operating Altitude

Beneath 3000 m (9842.52 ft)

Power Consumption

Standby≤1W, working≤5W

Gross Weight

326 g (0.72 lb)

Model

DHI-VTH2421FB-P

Main Processor

High performace embedded processor

Operating System

Embedded LINUX OS

Screen Type

Capacitive screen

Display

7-inch TFT screen

Resolution

1024 × 600

Video Compression

H.264

Audio Compression

G.711A/G.711U/PCM

Audio Input

1 channel all-direction microphone

Audio Output

Built-in 1.5W loudspeaker

Audio Mode

Support dual-way bidirectional talk

Audio Enhancement

Support echo cancellation/DNR

Audio Bit Rate

16 kbps

Communication Mode

Full digital

Information Release

Support to receive and view notifications issued by center

Leave Videos Or Text Messages

Yes

Dnd Mode

Support to set DND period

Sub-Station Quantity

9

Alarm Input

6 channel (switch quantity)

Alarm Output

1 channel

Network

1 RJ-45

Sos Alarm

Yes

Casing

PC+ABS

Appearance Color

Appearance Color

Power Supply

Power Supply

Installation

Wall mount

Accessories

Default bracket Default alarm cable

Dimensions

119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85")

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Operating Humidity

10%RH-95%RH

Power Consumption

Standby≤4W, work≤6W

Gross Weight

0.35 Kg (0.77 lb)

Power Supply Mode

PoE or DC 12V

Storage

Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G

Model

DH-PFS3005-4ET-36

Main Processor

High performace embedded processor

Ethernet Port

1×10/100 Base-T 4×10/100 Base-T (PoE power supply)

PoE Power Consumption

Each power ≤30W, Total≤36W

PoE Protocol

IEEE802.3af, IEEE802.3at

Weight

0.5kg

Dimension(W×D×H)

170mm×100mm×35mm

Warranty

As Per Manufacturer Terms and Condition
