SKU # 1000118079

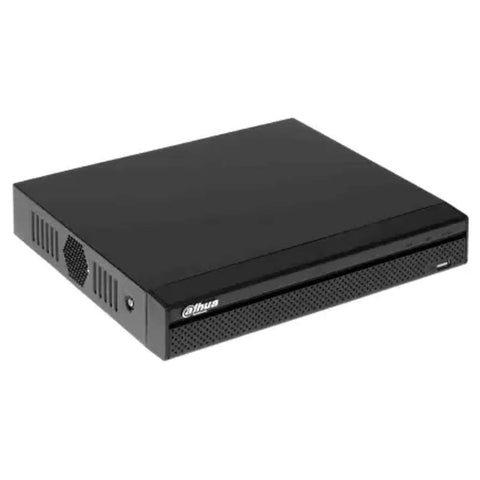

Dahua Lite Series Network Video Recorder 8CH DHI-NVR1108HS-S3/H
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
New 4.0 user interface
-
P2P remote surveillance,video play on mobile device
-
4–ch 1080P(30FPS),self-adaptive decoding capability
-
Support for mainstream cameras of ONVIF and RTSP protocol
-
Smart H.265+/Smart H.264+/H.265/H.264
-
VGA/HDMI simultaneous video output,maximum resolution of HDMI is 1080P
-
Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches
-
DHCP(Dynamic Host Configuration Protocol), HTTP(Hypertext Transfer Protocol), NTP(Network Time Protocol) and DDNS(Dynamic Domain Name System)
-
System Overview
-
This network video recorder is a highly cost-effective product,providing functions such as local live view,multi-screen display,real-time storage on local HDD,fast operation by mouse,and remote management and control
-
Functions
-
New User Interface
-
Local and web interfaces adopt the new UI 4.0 style which is more consistent with users' habits
-
Functional modules are divided clearer and easier to understand
-
Decoding (Smart H.265+/Smart H.264+)
-
Dahua smart encoding (H.265+/ H.264+) is the optimized implementation of (H.265/H.264) codec that uses a scene-adaptive encoding strategy,providing more efficiency in the encoding process and higher video quality,and reducing the cost of storage and transmission significantly
-
This NVR supports the corresponding decoding
-
Security Center
-
Security Center provides a whole picture of device security and helps protect the NVR with security scan,attack defense,certificate management,audio and video encryption and security settings
-
Security warnings will be sent trough many ways such as email,message,voice prompts
-
Scene
-
This NVR is suitable for places such as retail stores,families,courtyards and public areas
Product Specification
| Brand | Dahua |
| Product Type | NVR |
| Product Model | DHI-NVR1108HS-S3/H |
| Product Series | Lite Series |
| System | |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web/operating in local GUI |
| Video | |
| Access Channel | 8 channels |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding |
| Resolution | 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF |
| Decoding Capability | 1–ch 8MP(30FPS) or 1–ch 5MP(30FPS) or 2–ch 4MP(30FPS) or 2–ch 3MP(30FPS) or 4–ch 1080P(30FPS)8–ch 720P(30FPS) |
| Video Output | 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P |
| Multi-screen Display | 1/4/8/9 |
| Third Party Camera Access | Onvif, RTSP |
| Compression | |
| Video | Smart H.265+/Smart H.264+/H.265/H.264 |
| Audio | PCM/G711A/G711U/G726/AAC |
| Network | |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP,DNS, P2P |
| Mobile Phone Access | iDMSS(iOS), gDMSS(Android) |
| Interoperability | ONVIF (profile T/profile S/profile G), CGI, SDK |
| Browser | Chrome, IE9 or above, Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 8 channels playback |
| Record Mode | Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording |
| Storage | Local HDD and network |
| Backup | USB device |
| Playback Function | Play, pause, stop, fast forward, fast backward, rewind, play by frame Full screen, backup (cut/file), partially enlarge, audio on/off |
| Alarm | |
| General Alarm | Motion detection, privacy masking, video loss, PIR alarm, IPC alarm |
| Anomaly Alarm | Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly |
| Alarm Linkage | Video recording, snapshot, log, preset, tour |
| External Port |
|
| HDD | 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| USB | 1 front USB 2.0 port, 1 rear USB 2.0 port |
| HDMI | 1 |
| VGA | 1 |
| RCA Input | 1 |
| RCA Output | 1 |
| Alarm | None |
| Network | 1 RJ–45 port (10/100 Mbps) |
| General Parameter | |
| Power Supply | DC12V, 1.5A |
| Power Consumption | Total output of NVR is ≤ 10W (without HDD) |
| Operating Temperature | -10°C to 45°C (+34°F to +113°F) |
| Storage Temperature | 0°C to 40°C (+32°F to +104°F) |
| Operating Humidity | 10%–93% |
| Storage Humidity | 30%–85% |
| Operating Altitude | 3000 m (9843 ft) |
| Installation | Desktop mounting |
| Certifications | CE/FCC |
| Colour | Black |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (MM) – W x L x H | 260 × 225 × 47.6 |
| Unit Of Measurement | 1 Piece |
| Generic Name | 8 Channel NVR |
| Weight | 1.38 kg |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China |
| Importer Details | Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
| Country Of Origin | China |
