Available

SKU # 1000004345

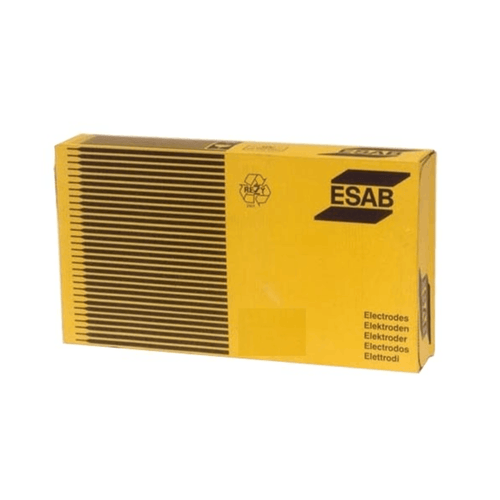

Esab Superweld Electrodes – 6013

₹ 1,982.40

Quantity

Min Qty : 1

Delivery Availability

Product Description

This is a rutile coated general purpose mild steel electrode. It provides smooth & stable arc, low spatter and good weld bead appearance. The electrode is suitable for all positional welding of plates and pipes.

  • A rutile based general purpose mild steel electrode for Shielded Metal Arc Welding

  • Classification: AWS A5.1 E6013

  • Welding Current: DC±, AC 50V

Features

  • General purpose electrode

  • Smooth running characteristics

  • Good slag release

  • Good weld bead appearance

Applications

  • General Fabrication

  • Frame Work

  • Tankages

Product Specifications

Size (mm)

Pieces / Packet

Pieces / Box

3.15X350

85

510

4.0X350

55

330

Composition and Mechanical Properties

All Weld Metal Chemical Composition (%)

All Weld Metal Mechanical Properties

C

0.08

YS (MPa)

420

Si

0.25

UTS (MPa)

520

Mn

0.40

Elongation (%)

26

S

0.025

P

0.025
