Fluke Amprobe Heavy Duty Multimeter HD110C
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Highest voltage capability, measuring to 1500 V DC and 1000 V AC
-
CAT IV 1000 V rated
-
Special sealing for environment and water resistance: IP67 rated
-
Constructed with drop-resistant housing and PCB mounting
-
Magne-Grip holster, frees both hands for work
-

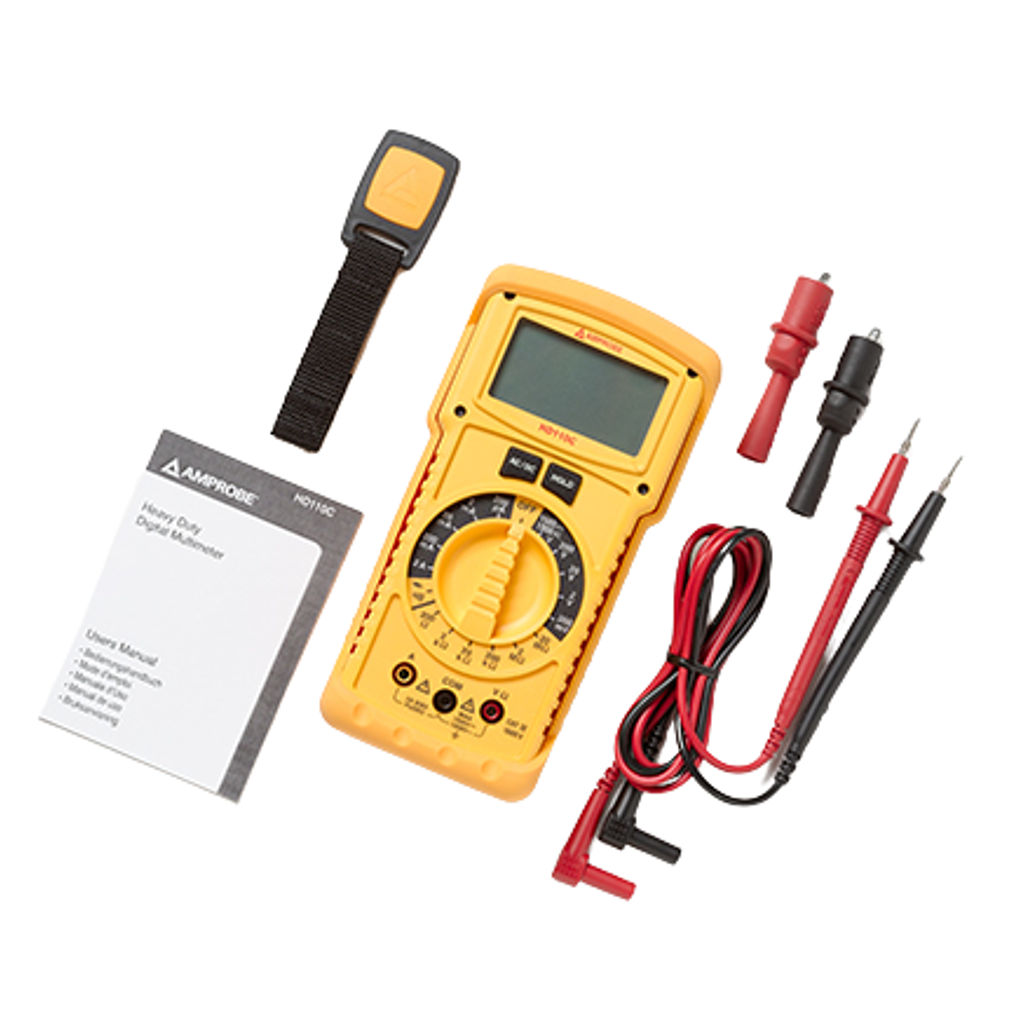

Includes high voltage test leads with threaded alligator clips
-

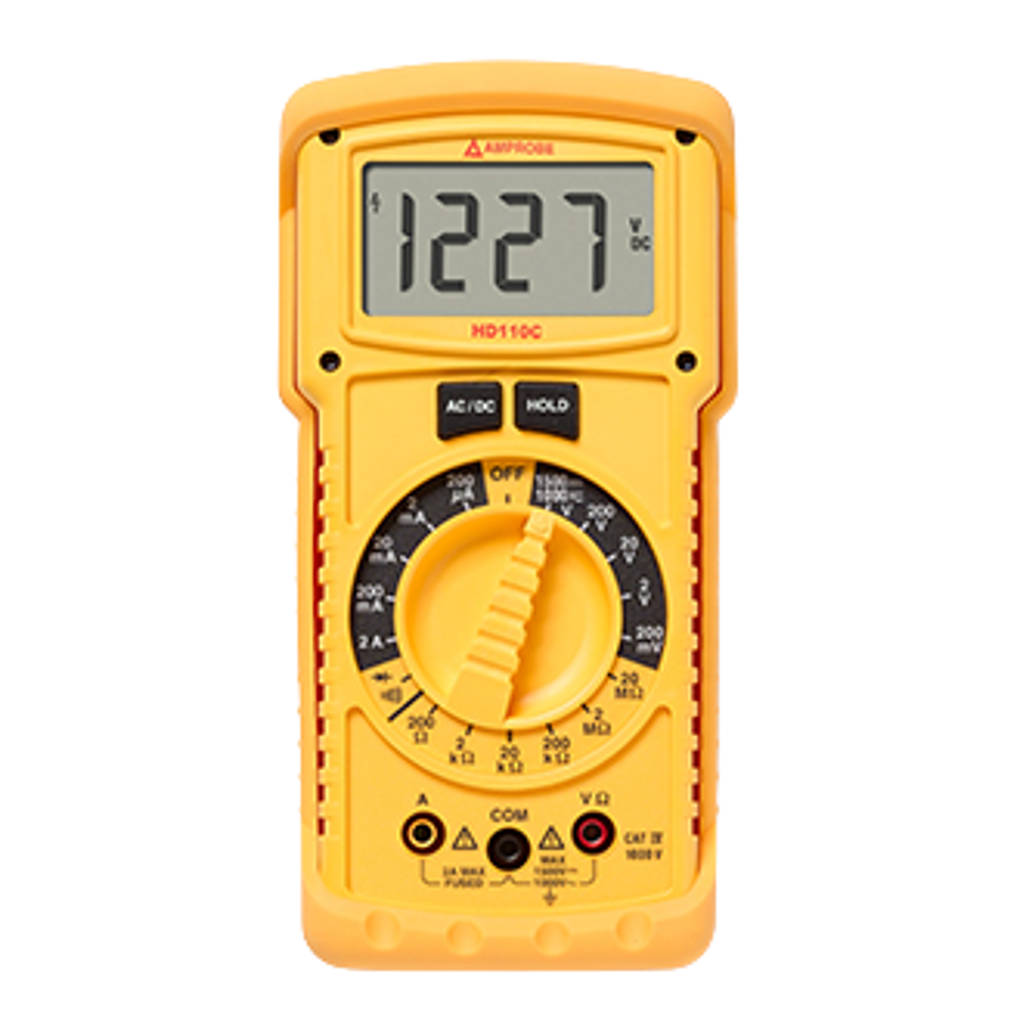

Display 3-1/2 digit LCD, 1999 counts, with annunciators
-
Automatic polarity indication
-
Low battery indication
-
Standard 9 V battery, NEDA 1604, JIS 006P,IEC 6F2
-
Flame retardant, high-impact thermoplastic case
-
Resistance ranges 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ
Product Specification
| Brand | Fluke |
| Product Type | Multimeter |
| Product Model | HD110C |
| Series | Amprobe |
| DC Voltage | 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 1500 V |
| AC Voltage | 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 1000 V |
| Current | AC/DC 200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA, 2 A |
| Resistance | 200.0 O, 2.000 kO, 20.00 kO, 200.0 kO, 2.000 MO, 20.00 MO |
| DC Volts Range | 200 mV, 2 V, 20 V, 200 V, 1500 V |
| DC Volts Resolution | 0.1 mV |
| DC Volts Accuracy | All ranges ±(0.1 % rdg+2 dgts) |
| DC Volts Input Impedance | 10 MO |
| DC Volts Ol Protection | >1500 V DC/1000 V AC rms |
| DC Volts Transient Protection | >12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV |
| AC Volts (45 Hz to 2 kHz) Ranges | 200 mV, 2 V, 20 V, 200 V, 1000 V |
| AC Volts (45 Hz to 2 kHz) Resolution | 0.1 mV |
| AC Volts (45 Hz to 2 kHz) Accuracy | 200 mV to 200 V (45-500 Hz) ±(0.8 % rdg+4 dgts), |
| AC Volts (45 Hz to 2 kHz) Accuracy | 200 mV to 200 V (500 Hz-2 kHz) ±(1.5 % rdg+5 dgts) |
| AC Volts (45 Hz to 2 kHz) Accuracy | 1000 V (50-60 Hz) ±(0.8 % rdg+4 dgts) |
| AC Volts (45 Hz to 2 kHz) Accuracy | 1000 V (60-500 Hz) ±(1.5 % rdg+5 dgts) |
| AC Volts (45 Hz to 2 kHz) Input Impedance | 10 MO |
| AC Volts (45 Hz to 2 kHz) OL Protection | 1500 V DC/1000 V AC rms |
| AC Volts (45 Hz to 2 kHz) Transient Protection | 12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV. |
| DC Current Range | 200 µA, 2 mA, 20 mA, 200 mA, 2 A |
| DC Current Resolution | 0.1 µA |
| DC Current Accuracy | 200 µA to 20 mA ±(0.5 % rdg+2 dgts) |
| DC Current Accuracy | 200 mA to 2 A ±(1.0 % rdg+2 dgts) |
| Safety Rating | CAT IV 1000 V |
| AC Voltage | 1000 V |
| DC Voltage | 1500 V |
| AC Current | 2 A |
| DC Current | 2 A |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 264 × 33 × 28 |
| Unit Of Measurement | 1 Piece |
| Weight | 127 g |
| Generic Type | Multimeters |
| Manufacturer Details | Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
| Packer Details | Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
| Country Of Origin | India |
