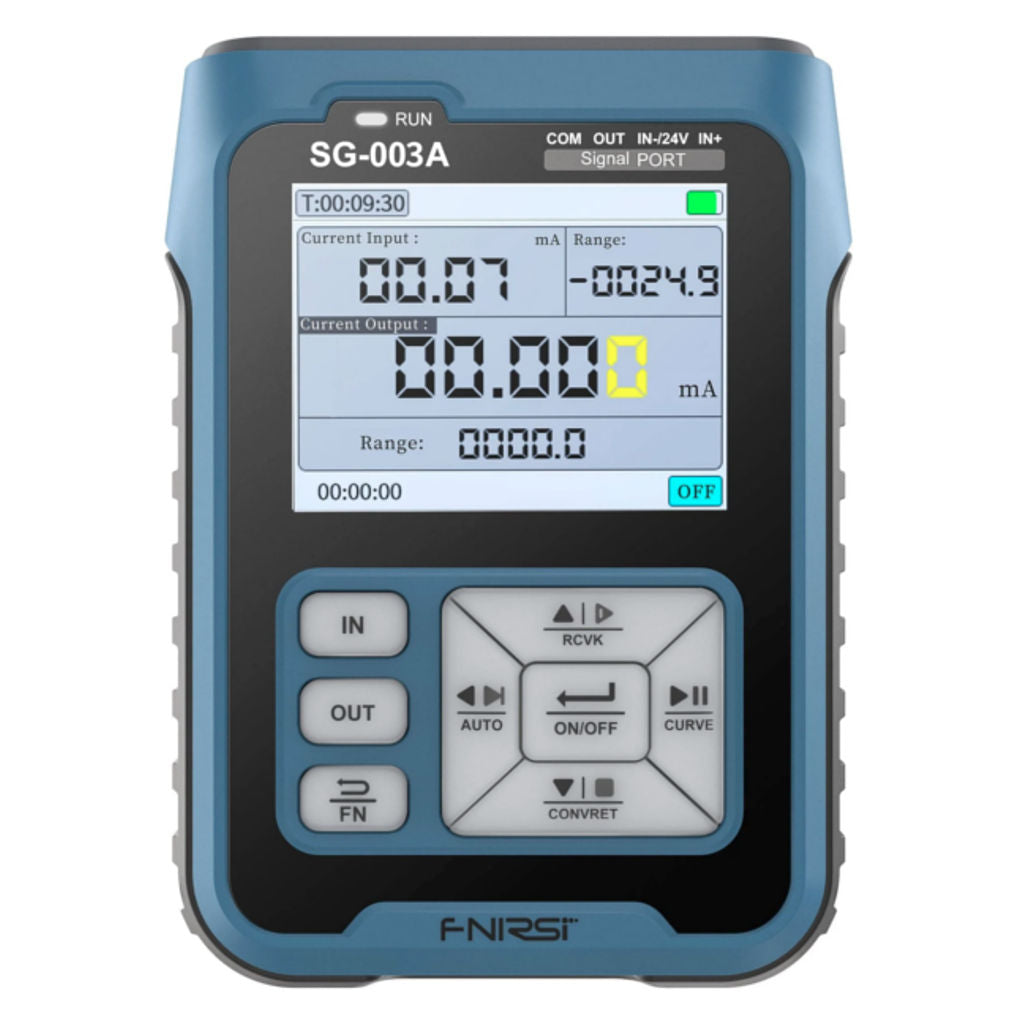

Fnirsi Signal Generator SG-003A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
FNIRSI SG-003A signal generator is mainly used for debugging of industrial field PLC, process instrumentation, electric valve and so forth
-
Friendly operation interface is easy to use
The FNIRSI SG-003A signal generator is small and light but has a long standby time and high precision -
Easy to carry when you go out to work
Adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day -
Features
-
Expect with the conventional signal input and output functions
-
Signals displayed as physical or engineering values, corresponding linearly
-
Voltage and current have automatic output function,it can choose a single rise,three modes of single drop and cycle
-
Four preset groups for quick output adjustment
-
With input to output conversion,voltage conversion active current mode,passive mode and current conversion voltage mode
-
The output has a custom function,the upper and lower output limits can be set arbitrarily
-
Displays input and output signal trends with adjustable sampling
-
Automatically adjusts curve within specified range over time
-
Voltage input diagram,current input diagram,the frame rate is 10 frames
-
PWM output can set frequency and duty cycle respectively
-
Real-time curve:Real-time observation of changes in voltage and current
-
It is powered by a large-capacity lithium battery and is charged with a Type-c interface (5V)
-
The capacity of the lithium battery is 3000mHA, fully charged in 4-6 hours, standby time is 26 hours, the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)
-
The high-definition TFT color LCD screen makes the reading more eye-catching
-
The resolution is 240 x 320 Low power consumption,Maximum power consumption: 0.32W
-
FNIRSI SG-003A communicates via RS485 with configuration software or PLC
-
Firmware upgrade via USB emulated U disk
-
Physical & Engineering
-
Signals are displayed as physical or engineering (ie pure quantity) values
-
For example: the current signal of 4-20mA corresponds to 0-100, that is 4mA corresponds to 0, 12mA corresponds to 50, and 20mA corresponds to 100
-
Real-Time Curve
-
The change trend of input and output signals can be displayed by drawing a curve, and the sampling time of the curve can be set
-
The current-voltage analog simulator can also adjust the curve within the range of the max and min values
-
Signal Conversion
-
FNIRSI SG-003A signal generator can convert input signals into an output signal, and converted into different physical quantities
-
The input signal is converted into a current signal, and the input range is 0-1000hz into 4-20mA
-

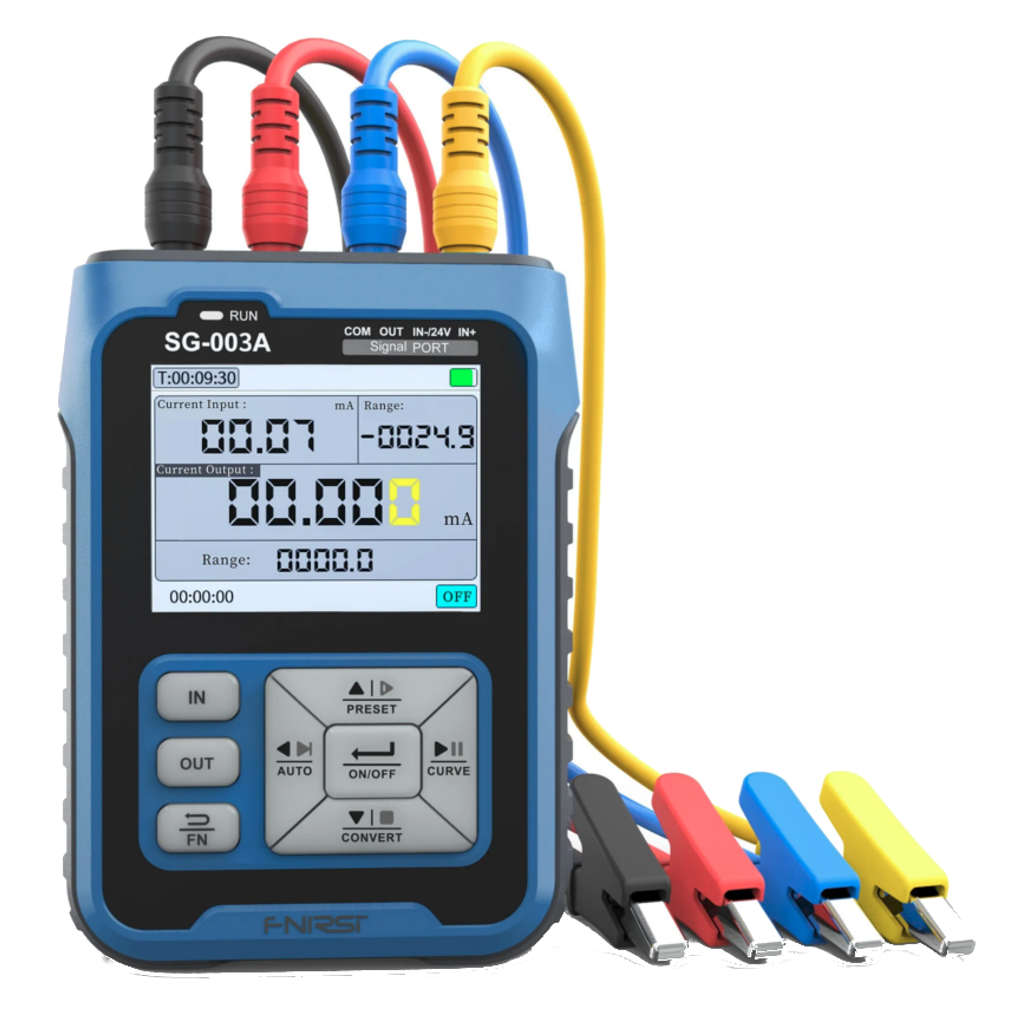

Multiple Port Signal Generator
-
The Blue (IN-) is an alternate and it is also an input port that can be switched to a 24V test power supply
-
Red(OUT) and black(COM) form an output port Yellow(IN+) and Blue(IN-) form the input port
-
Preset Value & Output
-
FNIRSI SG-003A supports 4 groups of signal values can be preset and the output function of continuously changing the size according to the setting parameters, and can select three modes: monotonous rise, fall and cycle
ProductSpecification
| Brand | Fnirsi |
| Product Type | Generator |
| Product Model | SG-003A |
| Activce Current Output | Range: 0~24mA |
| Voltage Output | Range: 0~24V |
| Frequency/PWM Output | Range: 0~9999Hz |
| Voltage Input | Range: 0~30V |
| Display Size | 2.4 Inch TFT Full Color LCD Screen |
| Preset Output | Support |
| Output Timing | Support |
| USB Firmware Upgrade | Support |
| Passive Current Output | Range: 0~24mA |
| 24V Loop | Range: 0~24mA |
| Current Input | Range: 0~24mA |
| Battery | A single 3.7V 3000mAh lithium battery power supply |
| Program Automatic Lift Output | Support |
| Signal Linear Conversion Output | Support |
| Modbus Slave | Support |
| Real-Time Curve | Support |
| Size (L x W x H) | 82 x 27 x 112 mm |
| Weight | 165 g |
| Warranty | 2 Years |
OtherDetails
| Dimension (CM) - L x B x H | 82 x 27 x 112 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.165 kg |
| Generic Type | Signal Generator |
| Manufacturer Details | Shenzhen FNIRSI Technology Co., Ltd. (FNIRSI) Room 409, Block B, Taogindi Building, Dalang, Longhua District, Shenzhen, China Email: info@fnirsi.com |
| Packer Details | Shenzhen FNIRSI Technology Co., Ltd. (FNIRSI) Room 409, Block B, Taogindi Building, Dalang, Longhua District, Shenzhen, China Email: info@fnirsi.com |
| Country Of Origin | China |
