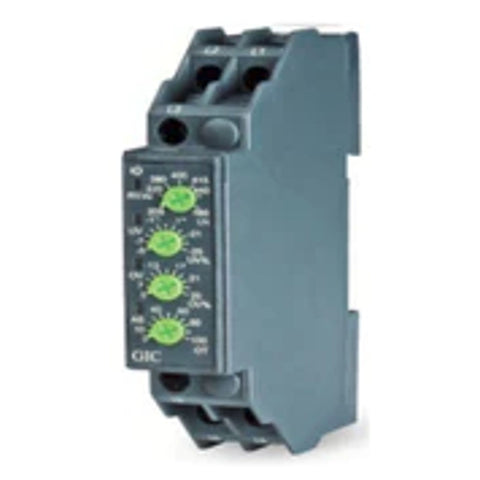

GIC SM175 Voltage Monitoring Relay MA21DN

GIC SM175 Voltage Monitoring Relay MA21DN


₹ 1,540.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Protects against Phase Loss, Phase Reversal & Phase Asymmetry

  • Can be configured for 3 Phase 4 Wire or 1 Phase system

  • Selectable Over Voltage / Under Voltage Trip level

  • Selectable Time Delay

  • LED Indications for Power and Fault conditions

  • Voltage Sensing principle

  • 1 C/O or 2 C/O Configuration

Product Specification

Brand

GIC

Product Type

Voltage Monitoring Relay

Model

MA21DN

Series

SM175

Power Consumption (Max.)

3.5VA

Supply Voltage

208 - 480 VAC, (3 Phase 3 Wire)

Trip Settings

Phase Loss – Yes

Phase Sequence – Yes

Phase Asymmetry – 5% to 15%

Frequency

50/60 Hz

Time Delay

ON Delay - 5s

Trip Time (OFF Delay) -0.5 to 15 s (Selectable)

LED Indicator

Healthy - Relay LED Continuous ON

Phase Reverse - Relay LED Flashing

Asymmetry - Relay LED Off (Red Colour)

Output

Relay Output – 1 C/O

Contact Rating - 5A @ 250 VAC / 30VDC (Resistive)

Electrical Life – 1X105

Mechanical Life - 5X106

Humidity (Non Condensing)

95% (Rh)

Dimension (W x H x D) (in mm)

17.5 X 90 X 58.5

Weight

70 g

Warranty

As Per Manufacture Terms & Conditions


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Monitoring Relay

Manufacturer Details

Larsen & Toubro Limited L&T House, Ballard Estate, P. O. Box: 278, Mumbai 400 001 India

Packer Details

Larsen & Toubro Limited L&T House, Ballard Estate, P. O. Box: 278, Mumbai 400 001 India

Country of Origin

India
