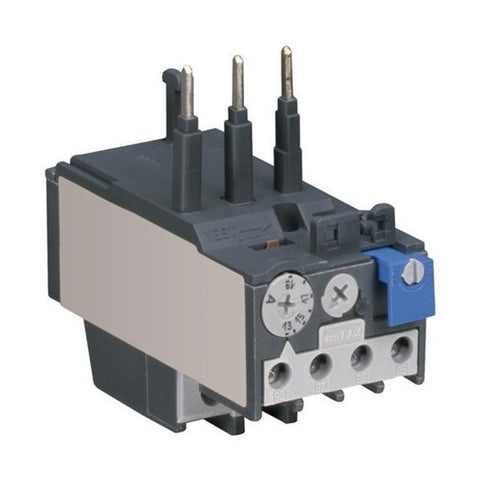

ABB Thermal Overload Relay 0.16-25A Three Pole TA25DU

ABB Thermal Overload Relay 0.16-25A Three Pole TA25DU


₹ 980.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • TA25DU thermal overload relay is an economic electromechanical protection device for the main circuit

  • It offers reliable and fast protection for motors in the event of overload or phase failure The device has trip class 10A

  • Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication

  • The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory

  • Product Net Width : 44 mm

  • Product Net Height : 80 mm

  • Product Net Depth / Length : 94 mm

  • Product Net Weight : 0.15 kg

  • Rated Insulation Voltage (Ui) : 690 V

  • Number of Poles : 3

  • Number of Auxiliary Contacts NC : 1

  • Number of Auxiliary Contacts NO : 1

  • Number of Protected Poles : 3

  • Degree of Protection : Housing IP20 , Main Circuit Terminals IP10

  • Pollution Degree : 3

  • Tightening Torque : Auxiliary Circuit 1 ... 1.3 N·m , Main Circuit 1.5 ... 1.9 N·m

  • Wire Stripping Length : Auxiliary Circuit 9 mm , Main Circuit 12 mm

  • Mounting Position : Position 1 to 4

  • Power Loss : at Rated Operating Conditions per Pole 1.1 ... 2.2 W

  • Suitable For : AX09,AX12,AX18,AX25,AX32,AX40

  • Standards : IEC/EN 60947-1,IEC/EN 60947-4-1,IEC/EN 60947-5-1,UL 508,CSA 22.2 No. 14

Product Specification

Relay Range in Amps

Type

Product Id

0.1 ... 0.16

TA25DU 0.16M

1SAZ211201R2005

0.16 ... 0.25

TA25DU 0.25M

1SAZ211201R2009

0.25 ... 0.4

TA25DU 0.4M

1SAZ211201R2013

0.4 ... 0.63

TA25DU 0.63M

1SAZ211201R2017

0.63 ... 1.0

TA25DU 1.0M

1SAZ211201R2021

1.0 ... 1.4

TA25DU 1.4M

1SAZ211201R2023

1.3 ... 1.8

TA25DU 1.8M

1SAZ211201R2025

1.7 ... 2.4

TA25DU 2.4M

1SAZ211201R2028

2.2 ... 3.1

TA25DU 3.1M

1SAZ211201R2031

2.8 ... 4.0

TA25DU 4.0M

1SAZ211201R2033

3.5 ... 5.0

TA25DU 5.0M

1SAZ211201R2035

4.5 ... 6.5

TA25DU 6.5M

1SAZ211201R2038

6.0 ... 8.5

TA25DU 8.5M

1SAZ211201R2040

7.5 ... 11.0

TA25DU 11M

1SAZ211201R2043

10.0 ... 14.0

TA25DU 14M

1SAZ211201R2045

13.0 ... 19.0

TA25DU 19M

1SAZ211201R2047

18.0 ... 25.0

TA25DU 25M

1SAZ211201R2051
